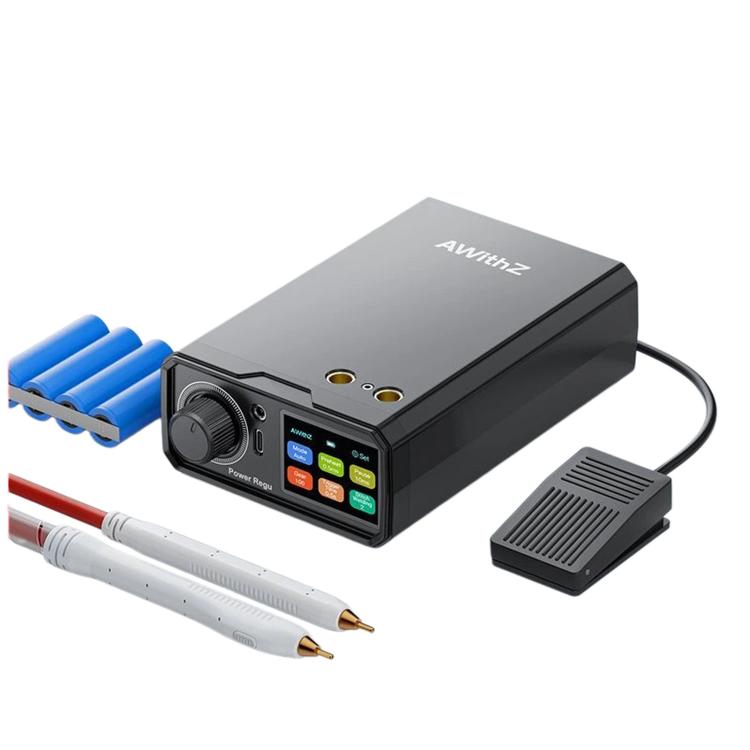

AWithZ UK3 Portable Color Screen Spot Welder 1650A High Current Battery Welder with Pedal(Black)

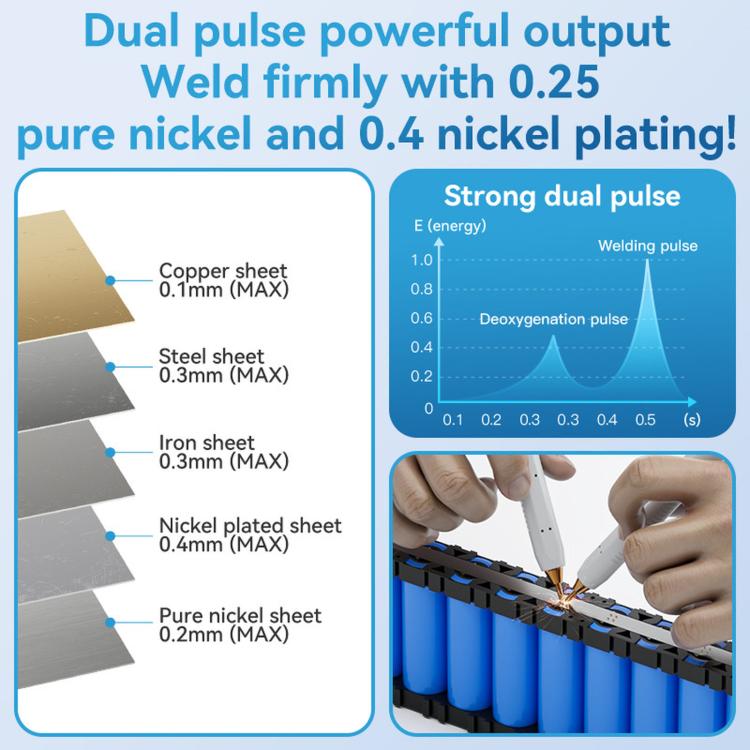

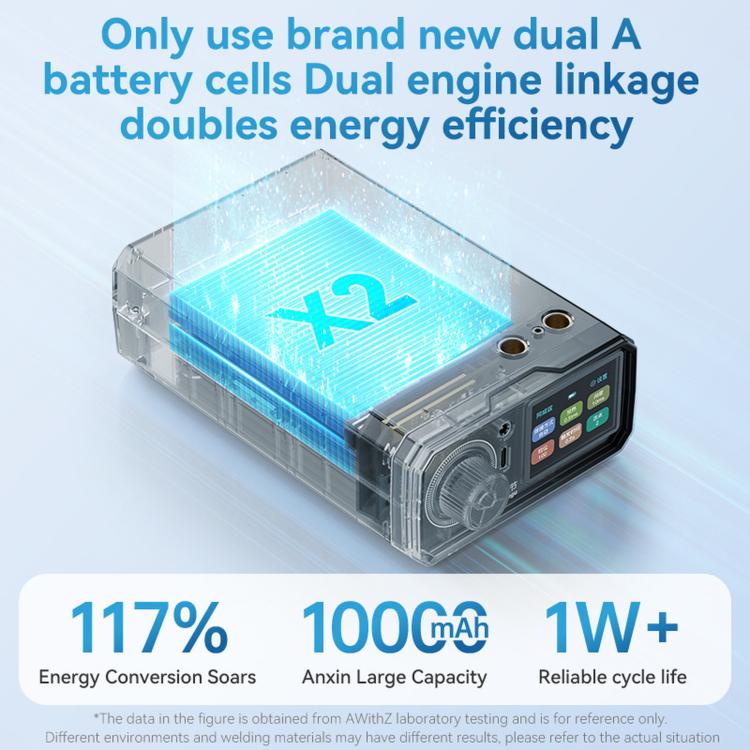

1. Powered by a high-capacity 10000mAh brand-new A-grade battery cell that delivers a massive 1650A peak output current. It provides highly reliable and secure welds for nickel-plated steel sheets up to 0.4mm, steel and iron sheets up to 0.3mm, pure nickel strips up to 0.25mm, and copper sheets up to 0.1mm, easily handling professional cylindrical battery pack assembly.

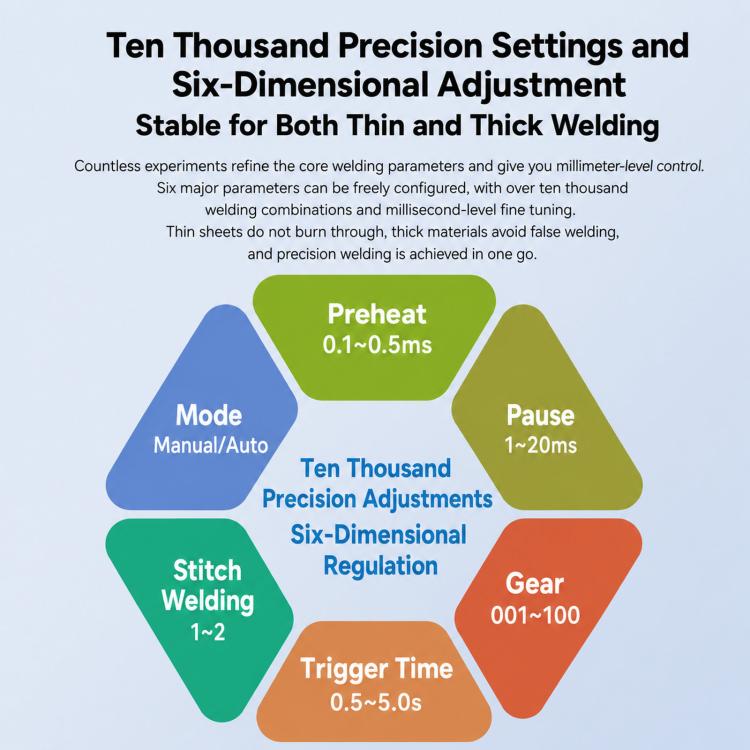

2. Say goodbye to blind tuning. The high-contrast definition TFT color display provides real-time readouts of crucial operational metrics including welding mode, battery level, preheat, pause, gear level, and stitch welding. Driven by an intuitive single knob, it supports 99 gear levels and six-dimensional parameters, unlocking over ten thousand custom combinations.

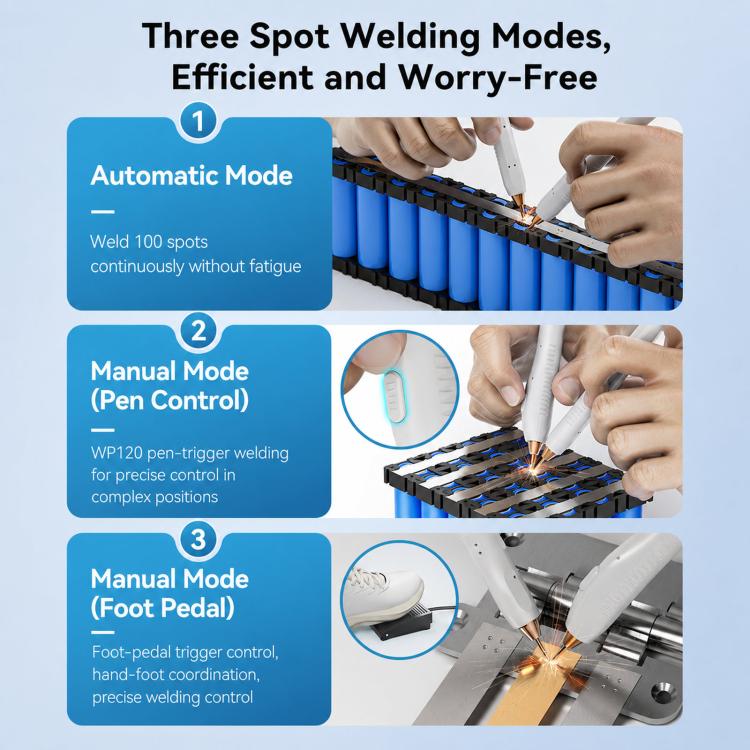

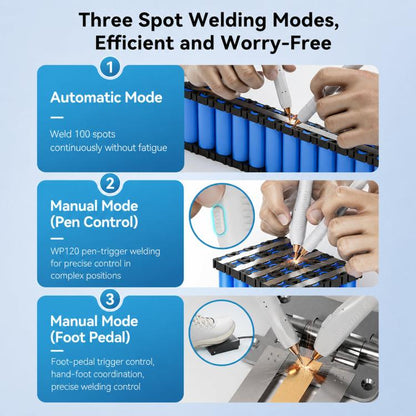

3. Designed with three modes for unmatched welding flexibility. Use Auto Mode for continuous high-speed welding; switch to Manual Mode (Foot Pedal) for hands-free control during complex angles; or use the unique Manual Mode (Pen Control) triggered directly by the smart button on the WP120 stylus, putting every single spot under your absolute control.

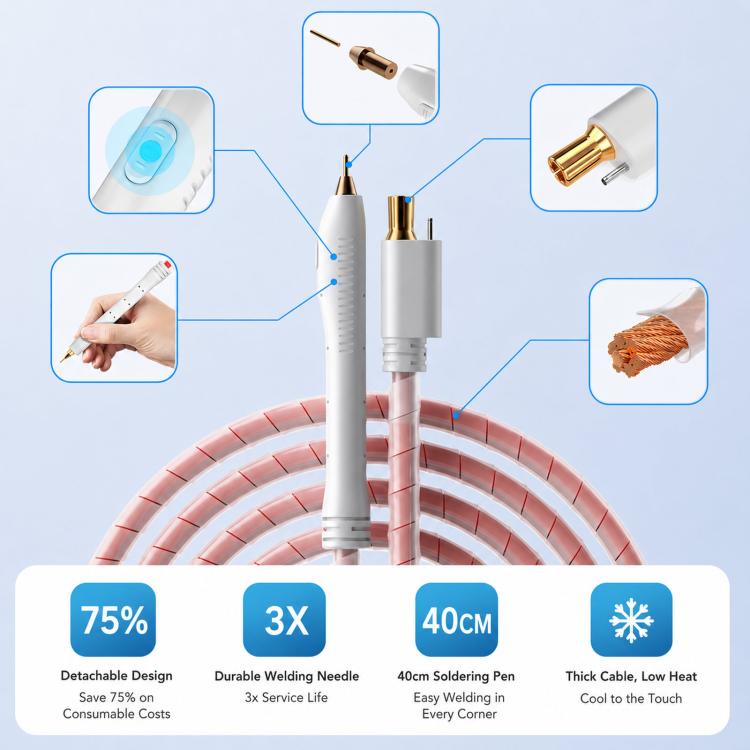

4. Includes high-conductivity 40cm professional spot welding pens (WP110 & WP120) with thick, heat-resistant silicone cords. Engineered with a scientific threadless quick-change design that lets you swap out the copper oxide welding needles instantly without changing the entire rod, saving up to 75 percent on consumables costs.

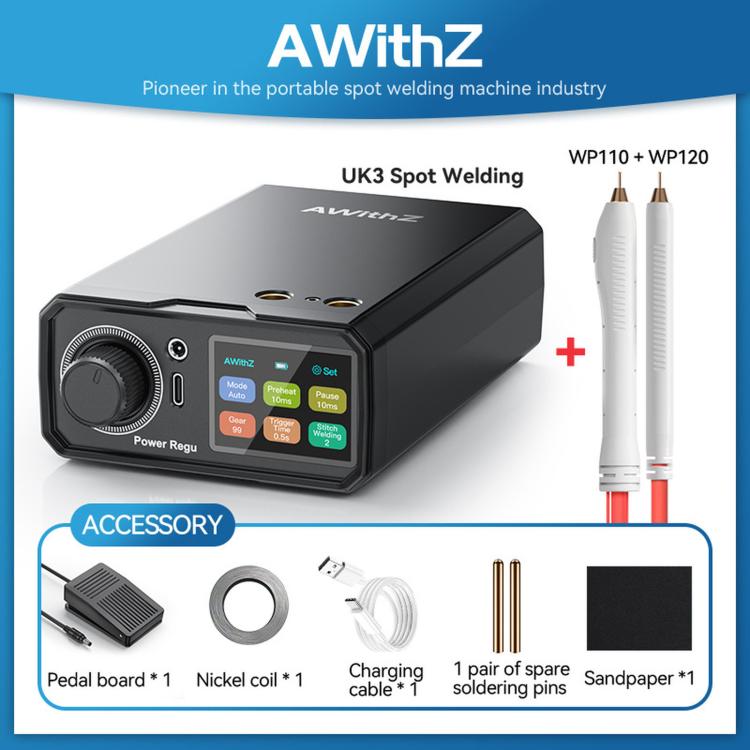

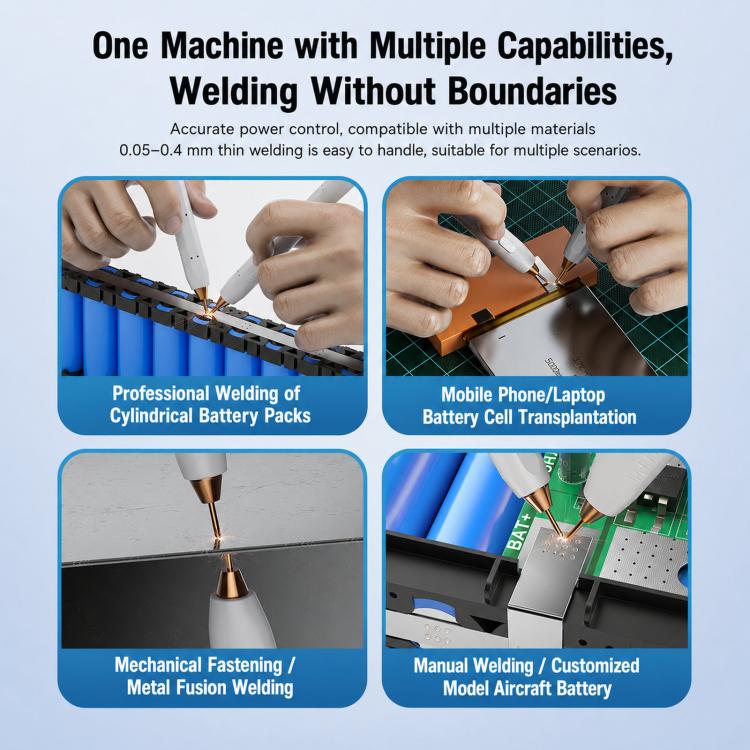

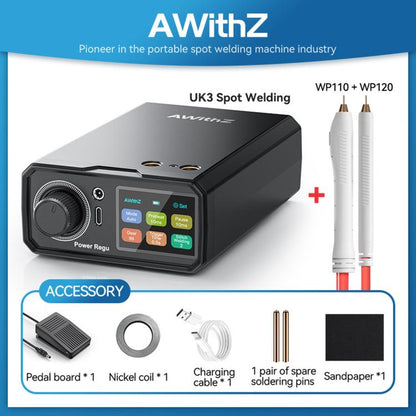

5. Perfect for cylindrical power battery packs (18650/26650/32650), mobile phone battery cell transplants, model aircraft batteries, and mechanical metal fusion welding. The complete starter kit comes loaded with 1 UK3 spot welder, WP110 & WP120 solder pens, 1 foot pedal, a 2m nickel coil, 1 charging cable, sandpaper, and 1 pair of spare pins.

Specifications:
1. Housing material: Plastic
2. Level adjustment: 99 adjustable levels
3. Spot welding mode: Automatic/Manual (triggered by stylus or foot pedal)

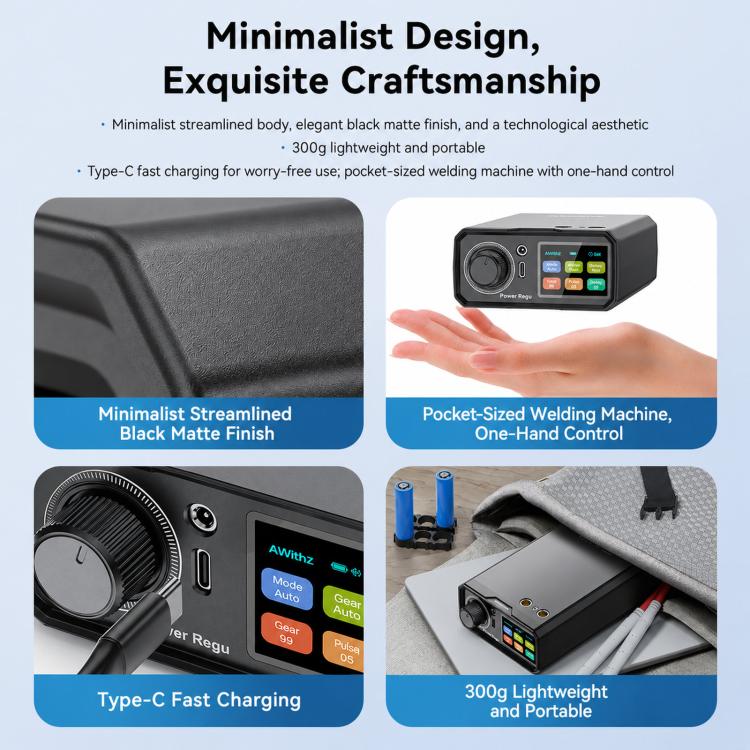

4. Product dimensions: 100.5 x 158 x 48mm
5. Product weight: Approx. 300g
6. Charging port: Type-C
7. Output voltage: 8.4V MAX
8. Output port: EC8
9. Output current: 1650A MAX
10. Input: 5V/2.4A MAX
11. Built-in battery: Rechargeable lithium battery
