BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)
BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)
SKU: TBD0605567301
Normaler Preis
£119.74
Normaler Preis
Verkaufspreis
£119.74
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Multimeter:
1. Measurement range:
- DC voltage (V): 1000V
- DC voltage (mV): 200mV
- AC voltage (V): 750V
- AC voltage (mV): 200mV
- DC/AC current (mA): 200mA
- AC current (A): 2000A (flexible coil required)
- Resistance: 200mOhm
- Capacitance: 99.999mF
- Temperature: -20-1000 degrees Celsius / -4-1832 degrees Fahrenheit
2. Resolution:
- DC/AC voltage (V): 0.001V
- DC voltage (mV): 0.01mV
- AC voltage (mV): 0.001mV
- DC/AC current (mA): 0.01mA
- AC current (A): 0.1A
- Resistance: 0.001 mOhm
- Capacitance: 0.001F
- Temperature: 1 degree Celsius / Fahrenheit
3. Functions: diode, on-off, true RMS, screen backlight, low battery indication, automatic shutdown
4. Battery capacity: 5000mAh lithium battery (built-in)
Oscilloscope:
1. Bandwidth: 50MHΖ
2. Sampling mode: real-time sampling
3. Real-time sampling rate: 250MSa / s
4. Number of channels: 2, dual-channel DC, AC
5. Display mode: YT, Xy, scrolling
6. Waveform output type: sine wave, square wave, triangle wave, half wave, full wave, 7. sawtooth wave, DC
8. Frequency range: 0ΗΖ-2ΜΗΖ
9. Output channel: 1
10. Output amplitude: 0.1V-3.0V
11. Minimum resolution: 1Hz
12. Square wave duty cycle: 1%-99%1
Features:
1. Support Chinese and English bilingual display
2. 3.98-inch TFT large colour display
3. Dual-channel 50Hz bandwidth, single-channel signal source, isolated channels are independent of each other to avoid interference between them, more accurate signal detection
4. Dual-mode (oscilloscope/multimeter) display, switch modes at will to improve work efficiency
5. Save at any time to view at any time, not afraid of missing important information, support for 36 saved records
6. Intelligent anti-burning, overload does not burn the table
7. One-key waveform screenshot save, save the picture can be viewed in the oscilloscope, can also be exported to the computer, convenient to the acquisition of the signal for secondary analysis

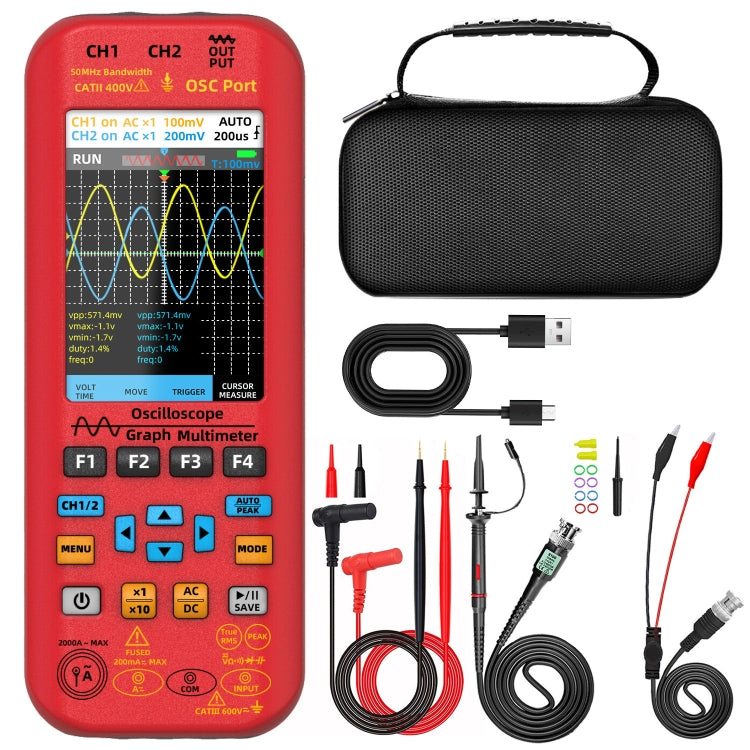

Packing list:
- Dual-channel oscilloscope multimeter
- 10X oscilloscope probe
- Oscilloscope accessories
- Meter pen
- Red and black crocodile clip probe
- Storage bag
- Instructions
- Charging cable
