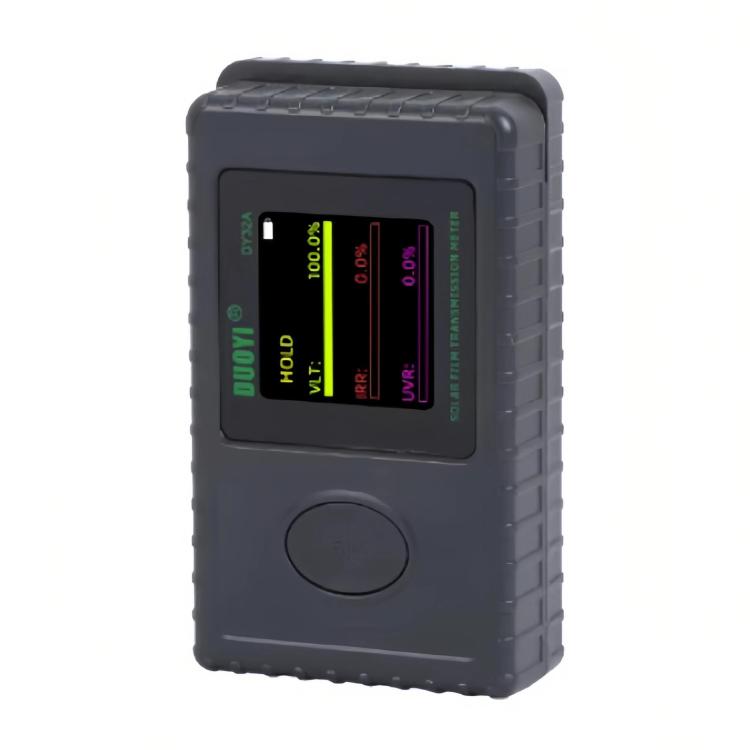

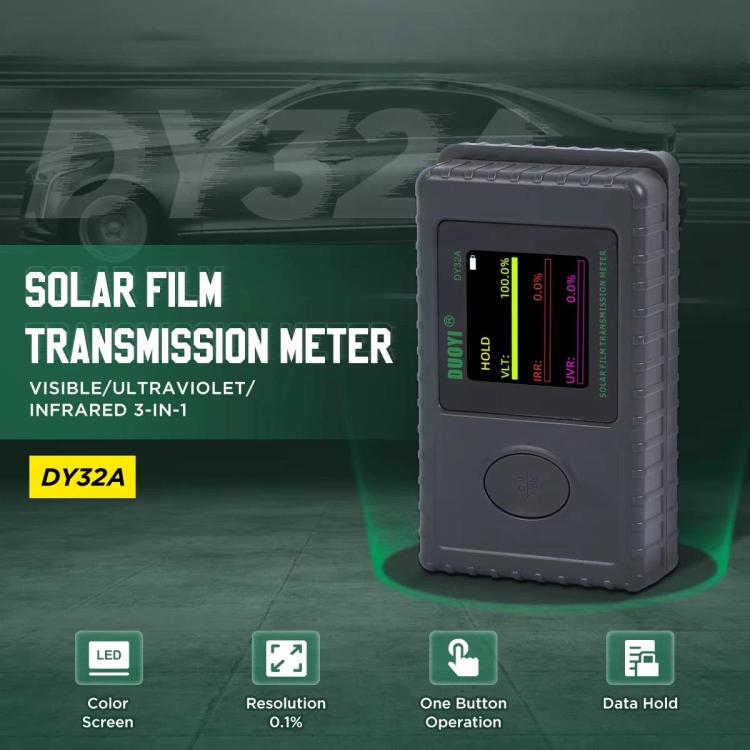

DUOYI Portable Heat-Insulating Glass Solar Film Tester(DY32A)

1. Recommended testing material: Solar film
2. Peak wavelength for visible light: 530 nm
3. Peak wavelength for infrared light: 940 nm
4. Peak wavelength for ultraviolet light: 365 nm

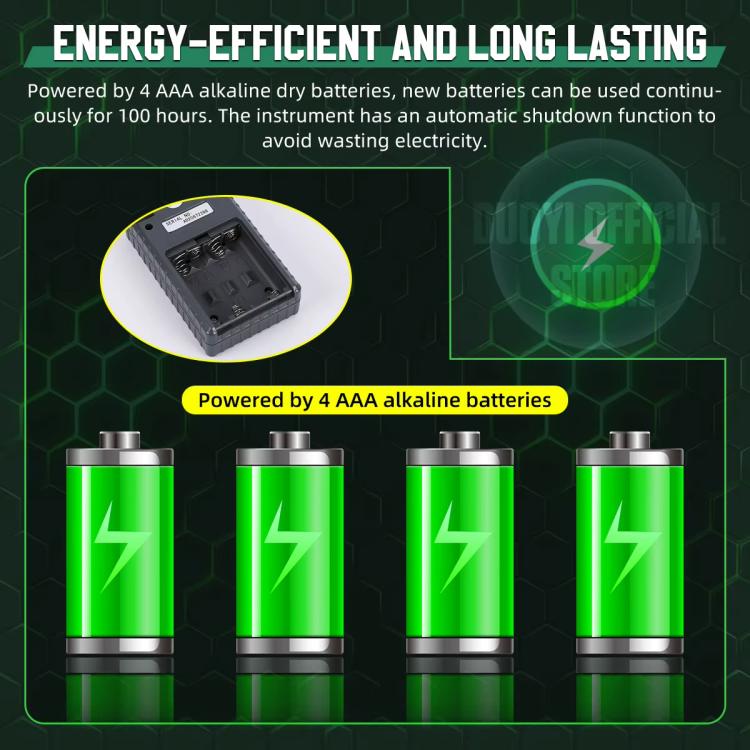

5. Power supply: 4 AAA batteries (not included)
6. Suitable for measuring thin films, coated glass, car window tinting films, and side windshields; ideal for quality control, inspection, and production environments.
7. Integrates ultraviolet transmittance, infrared transmittance, and light transmittance measurement functions, allowing for comprehensive window film testing on one device.
8. Data lock: After measurement, the data can be locked on the screen for easy reading.
9. Efficient operation: Provides fast measurement function, simultaneously displaying ultraviolet, visible light, and infrared transmittance values ??for instant understanding of material performance.

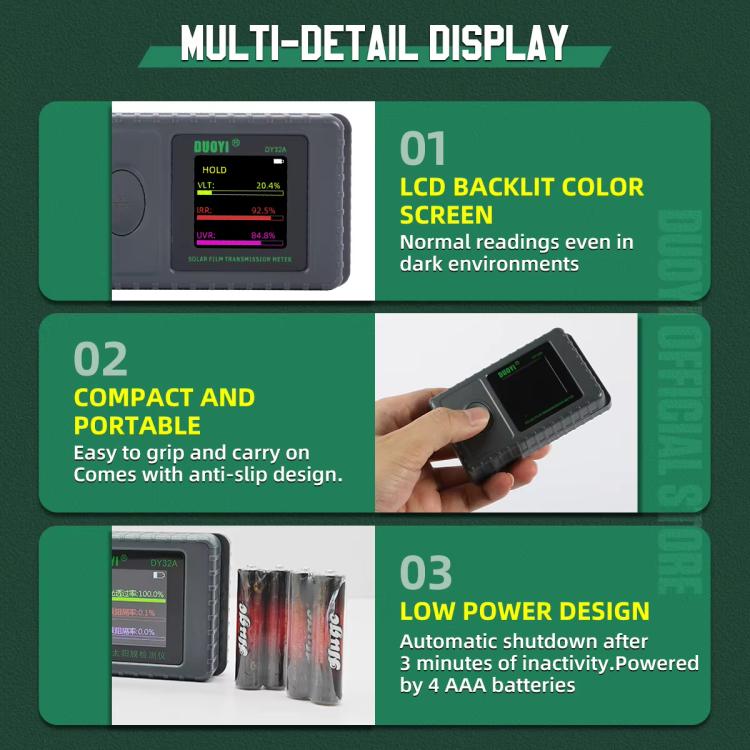

10. Portable and easy to use: Lightweight and compact design, battery-powered (batteries not included), ensuring portability and ease of use for on-the-go measurements.

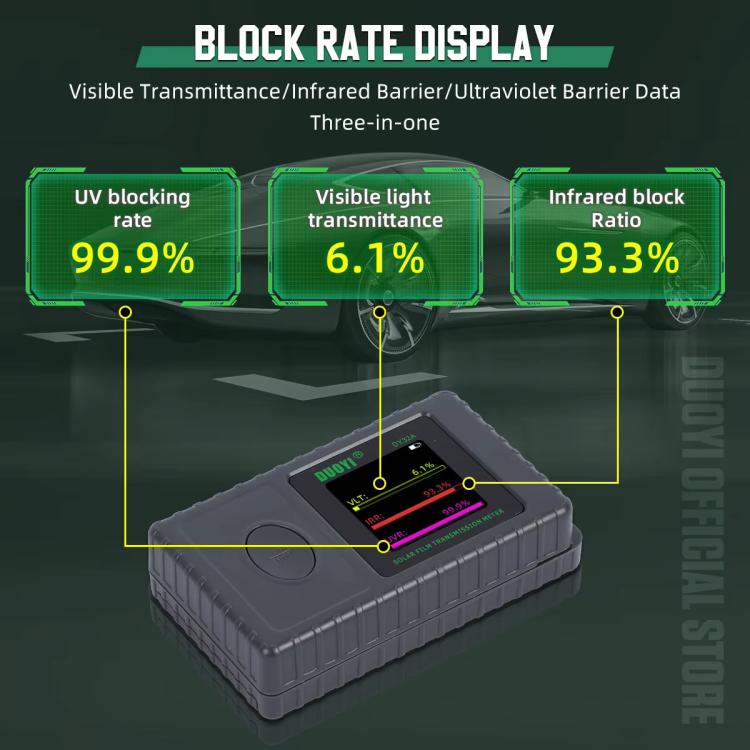

11. Functions: Visible Light Transmittance (VLT); Infrared Rejection Rate (IRR); Ultraviolet Rejection Rate (UVR)
12. Weight: Approx. 630 g
13. Dimensions: 93 x 54 x 24 mm

Operating instructions
1. Power on: briefly press the "ON/Hold" button to turn on the instrument. Do not insert the test sample into the test slot before turning on, otherwise self-calibration will not be completed.

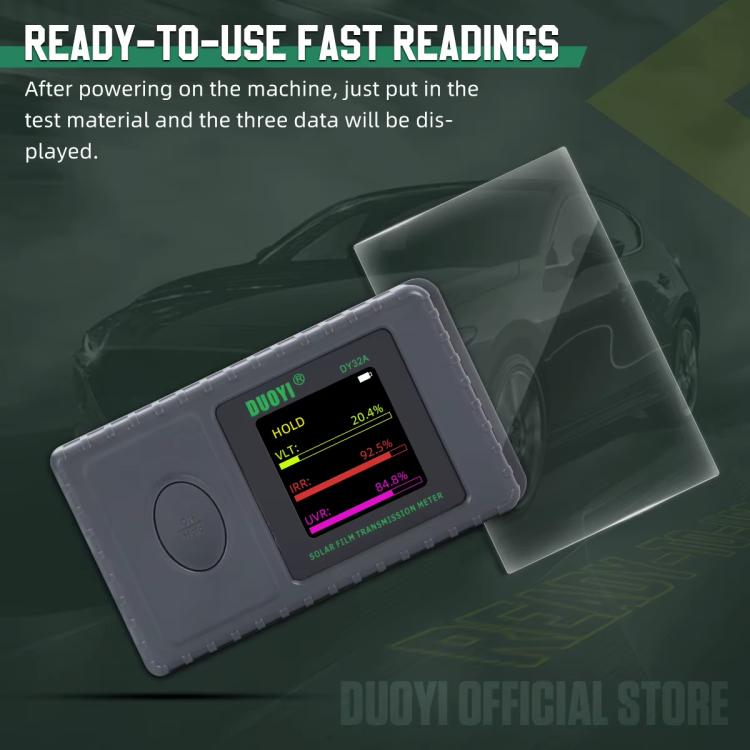

2. After powering on, when "VLT" displays 100%, and both "UVR" and "IRR" display 0.0%, you can insert the sample into the instruments test slot.

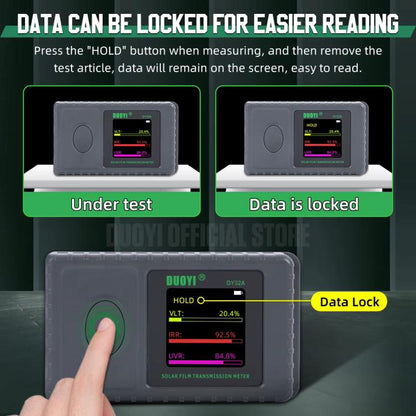

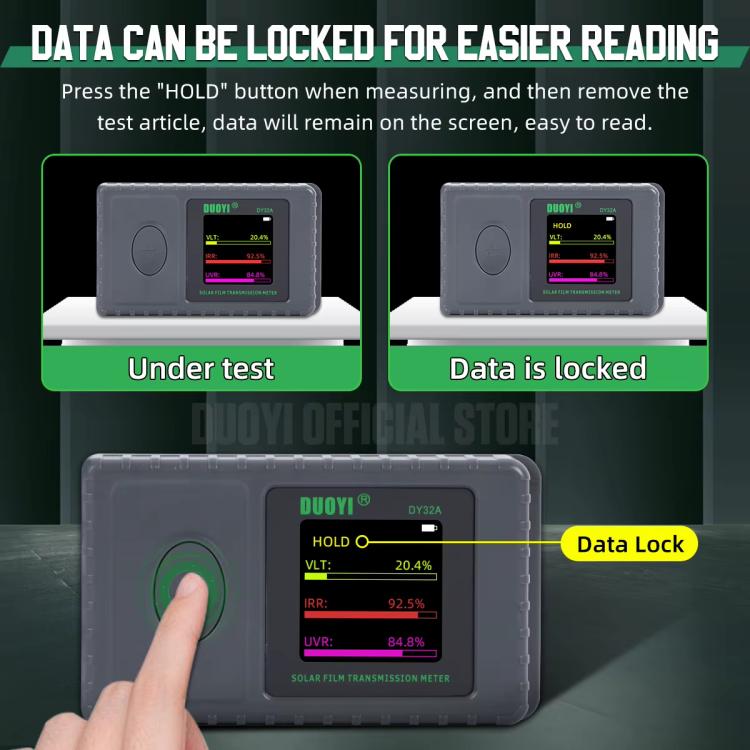

3. Keep the test sample still. The test data will be displayed on the LCD screen. Once the data stabilizes, briefly press the "ON/Hold" button to save the test data (a "Hold" symbol will appear in the upper left corner of the LCD screen) for easy reading.
4. Power off: press and hold the "ON/HOLD" button for 3 seconds and then release. Otherwise, the instrument will automatically shut down after 3 minutes of inactivity. Automatically shuts off after 5 minutes of inactivity.
5. In "Hold" mode, the test data will not change even if the test sample is removed. To perform another measurement, simply short press the "On/Hold" button to cancel "Hold" mode and return to "Measurement" mode.

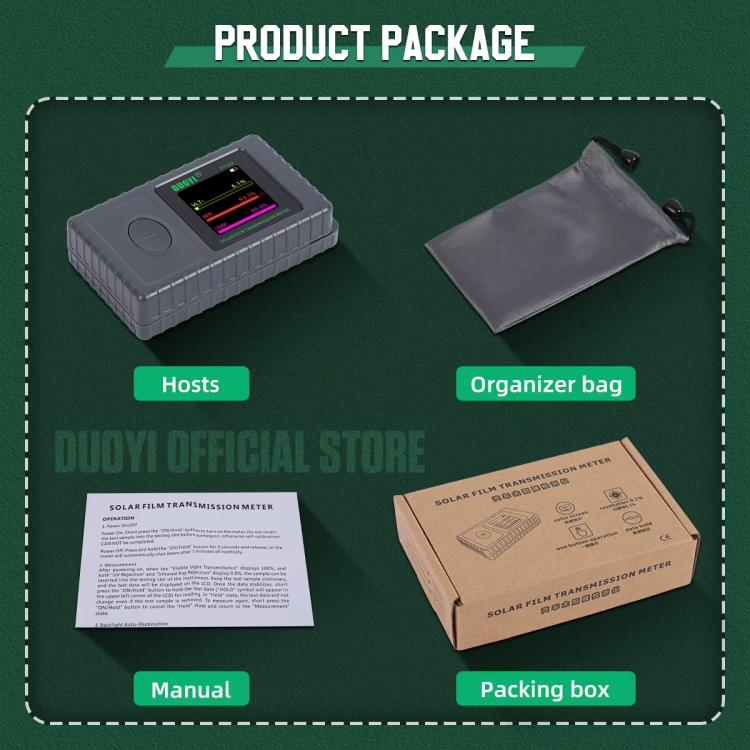

Package contents:
DY32A main unit x 1
Storage bag x 1
Operating instructions x 1
Packaging box x 1
