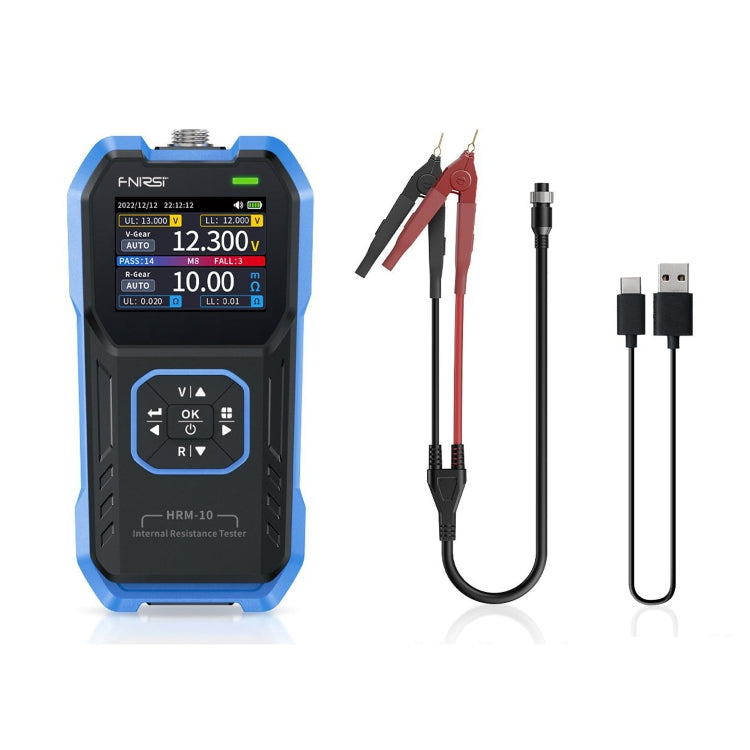

FNIRSI 18650 Lithium Battery Internal Resistance Voltage Measuring Instrument(HRM-10)

FNIRSI 18650 Lithium Battery Internal Resistance Voltage Measuring Instrument (HRM-10) is a device designed to measure the internal resistance and voltage of lithium batteries. It is suitable for testing various lithium batteries, enabling efficient identification of battery quality and performance issues.

• Voltage range: 0-100V (DC)
• Voltage measurement modes: automatic, 1V, 10V, 100V
• Resistance range: 0-200 ohms
• Resistance measurement modes: automatic, 20 milliohms, 200 milliohms, 2 ohms, 20 ohms, 200 ohms
• Instrument test signal frequency: AC 1kHz
• Charging interface: TYPE-C (5V/1A)
• Built-in battery: 1000mAh lithium battery
• Dimensions: 158.7mm x 80.5mm x 28.4mm
• Weight: 225g
• Design features: integrated folding bracket, back hanging hole gourd nail design, silicone anti-slip design
• Automatic shutdown mode options: user-defined or specific shutdown time
• Data retention features: one-click pause, memory stay
• Measurement method: customized Kelvin 4-wire connection
• Pre-set voltage resistance values: eight sets for efficient battery testing
• Display: TFT high-definition color screen
