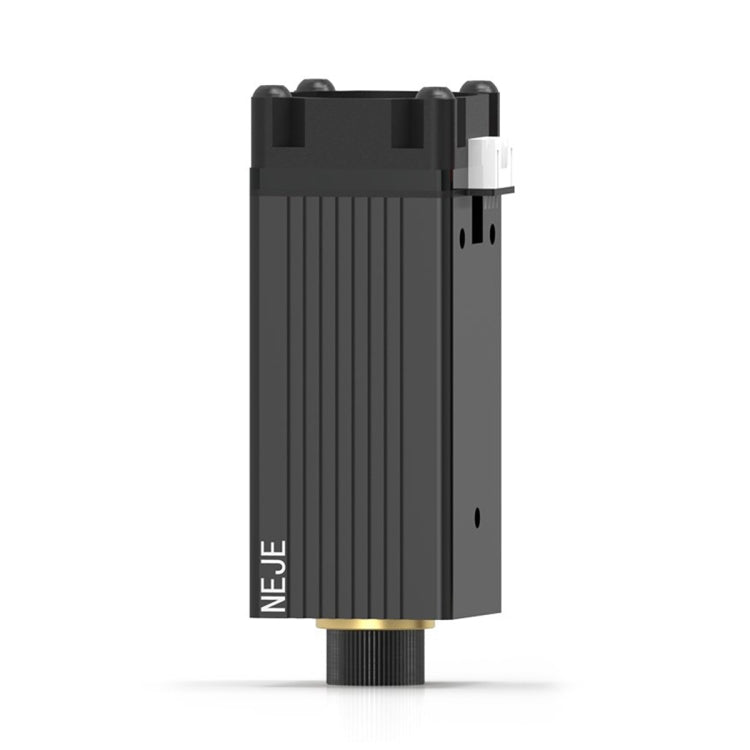

NEJE B30635 500MW 405nm Laser Engraver Module Kits
NEJE B30635 500MW 405nm Laser Engraver Module Kits
SKU: EDA0035536
Normaler Preis
£82.49
Normaler Preis
Verkaufspreis
£82.49
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, good-quality, Ensure service life！
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！
4. Clear focus lens, not stray light, adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).
Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Laser diode: sharp 350MW 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
3. LD current: 350mA
4. Luminous Color: Blue
5. Section Size: 30mm x 30mm
6. Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
7. Dimension: 60 x 30 x 30mm
8. Adapter Output Voltage: DC 12V 2A
9. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
10. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
1. Module Input: 3500MW
2. Laser Output Power: 500MW
3. Wavelength: 405nm
4. Beam Shape: Dot (Focusable)
5. Working Voltage: DC 12V
6. TTL&PWM Modulation: YES, compatible with Both TTL & PWM Modulation
7. Input Voltage: DC12V
8. PWM/TTL Input: DC3.3V-12V?
9. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL), 2Pin+2Pin (+,-) + (PWM/TTL,-)
10. NOTE：Temperature interface can be disconnected
11. Drive Mode: External ACC
12. Safe temperature range: <70 degrees Celsius
13. Module weight: 115g ( The lighter the weight, the smaller the moving inertia, the better the performance )
14. Life Time: 20,000 hours
Package Included:
- 1 x Laser Engraving Module
- 2 x Screw
- 2 x ABS cushion post
-1 x L-shaped wrench
-1 x 4 Pin Cable(30cm Sports Cable)?
-1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
2. Original laser diodes, good-quality, Ensure service life！
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！
4. Clear focus lens, not stray light, adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).
Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Laser diode: sharp 350MW 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
3. LD current: 350mA
4. Luminous Color: Blue
5. Section Size: 30mm x 30mm
6. Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
7. Dimension: 60 x 30 x 30mm
8. Adapter Output Voltage: DC 12V 2A
9. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
10. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
1. Module Input: 3500MW
2. Laser Output Power: 500MW
3. Wavelength: 405nm
4. Beam Shape: Dot (Focusable)
5. Working Voltage: DC 12V
6. TTL&PWM Modulation: YES, compatible with Both TTL & PWM Modulation
7. Input Voltage: DC12V
8. PWM/TTL Input: DC3.3V-12V?
9. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL), 2Pin+2Pin (+,-) + (PWM/TTL,-)
10. NOTE：Temperature interface can be disconnected
11. Drive Mode: External ACC
12. Safe temperature range: <70 degrees Celsius
13. Module weight: 115g ( The lighter the weight, the smaller the moving inertia, the better the performance )
14. Life Time: 20,000 hours
Package Included:
- 1 x Laser Engraving Module
- 2 x Screw
- 2 x ABS cushion post
-1 x L-shaped wrench
-1 x 4 Pin Cable(30cm Sports Cable)?
-1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
