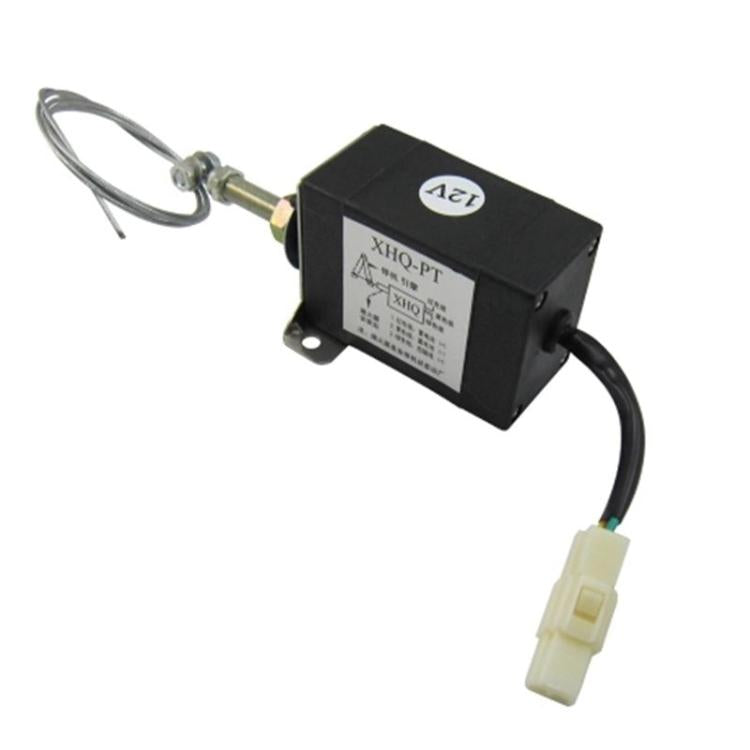

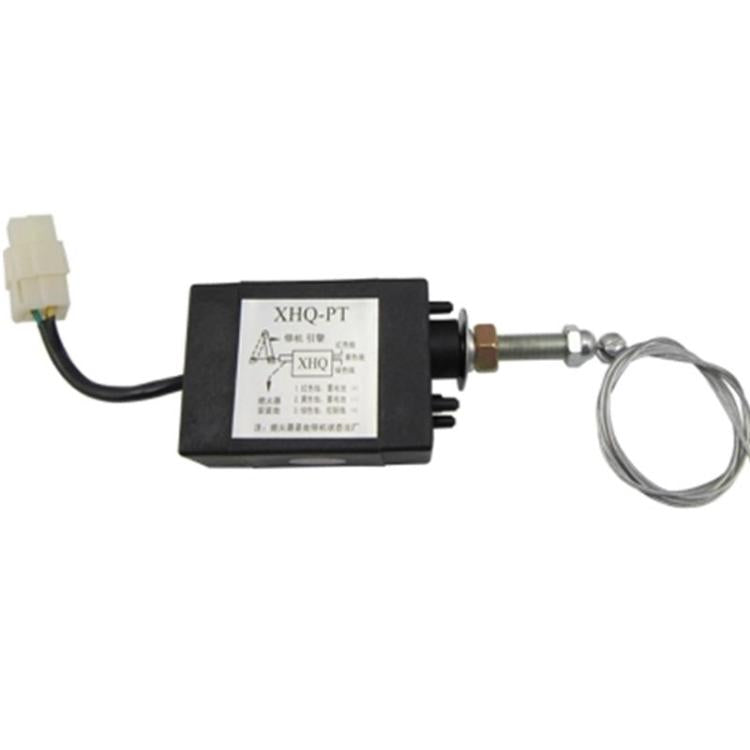

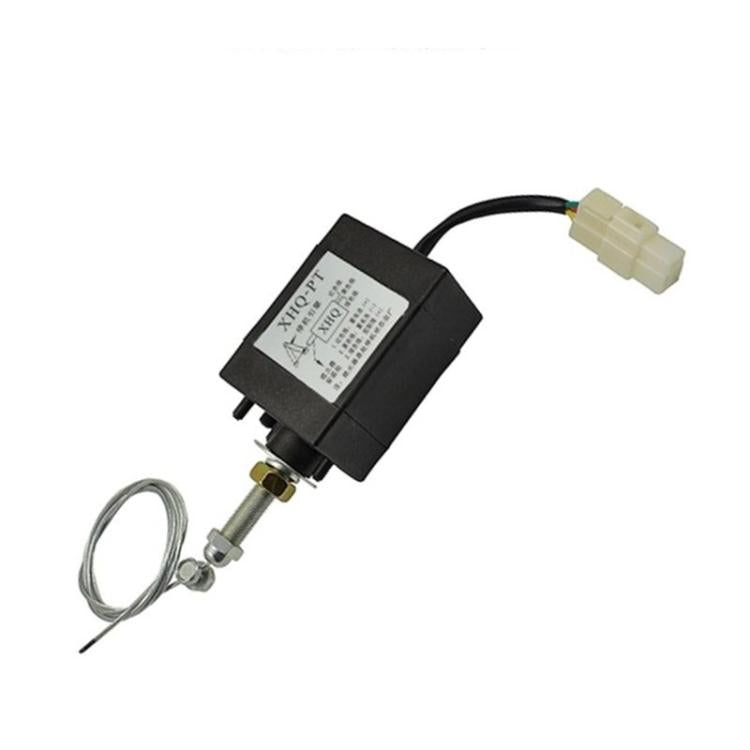

Normally Open Type NO 12V Diesel Engine Flame Out Device Engine Stop Solenoid Valve XHQ-PT Power Off Pull Type Flameout Magnetic Valve

1. The contact between the fire stopper and the switch is controlled by a relay. The switch opens and closes, ensuring that the screw contacts the travel distance first during operation, providing a good buffering effect, protecting the switch, and extending its service life.
2. The microswitch of the flameout device can carry a current of 2-3A, making it more robust and durable;
3. Effectively manage the sparks generated by the flameout motor during operation to improve motor performance and make it more stable;

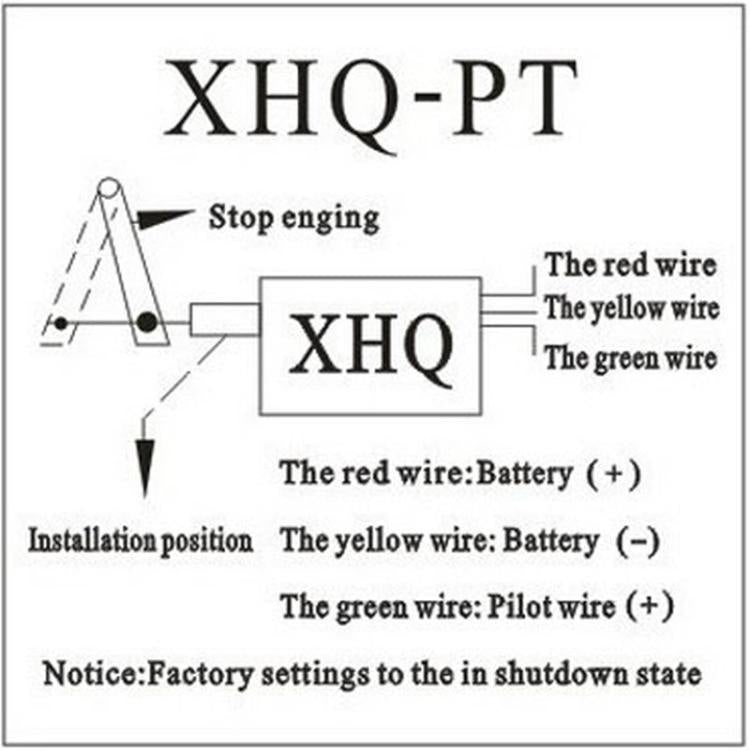

4. Wiring method: Connect the red wire to the positive power supply, the yellow wire to the negative power supply, and the green wire to the control wire. Use a direct-plug interface port for convenience and speed.
5. Each flameout device undergoes hundreds of load tests (150N+ tensile force) before leaving the factory, and is only packaged after passing the tests;
6. Perform 20 load tests each on an upward tilt of 60 degree and a downward tilt of 60 degree (tensile force of 150N+).
7. Conduct resistance-to-rotation tests, exceeding 1000 times.
8. Superior Material: The outer shell material has advantages such as high strength, high hardness, flame retardancy, freeze resistance, impact resistance, and aging resistance.
9. Low price: The price is much lower than that of the shutdown solenoid valves currently widely used in the market, which can reduce production costs.
10. Wide applicability: Applicable to various types of diesel engines.

Parameter:
1. Rated Voltage: DC 12V / DC 24V (optional)
2. Working Current: Less than or equal to 1A
3. Reaction Time: Less than 2S
4. Distance of run: 45mm +/-2mm
5. Temp Range: -40~150 degrees
6. Service lifetime: Greater than or equal to 10000 times
7. The length: 100cm
8. Pull: Greater than or equal to 150N
