Original E-Port V2 Development Kit For DJI Matrice 400
Original E-Port V2 Development Kit For DJI Matrice 400
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
Processed in 0–3 days
Verfügbarkeit für Abholungen konnte nicht geladen werden
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
The Original E-Port V2 Development Kit is designed to convert the aircraft's E-Port V2 into multiple standard hardware interfaces. It is compatible with the DJI Matrice 400 and facilitates hardware device connections and SDK debugging.
- Development board dimensions: 89mm (L) x 60mm (W) x 13.4mm (H)
- XT30 VCC output: 13.8V / 17.02V / 24V, 5A
- XT30 12V output: 12V, 4A
- XT30 5V output: 5V, 4A
- Compatible with: DJI Matrice 400

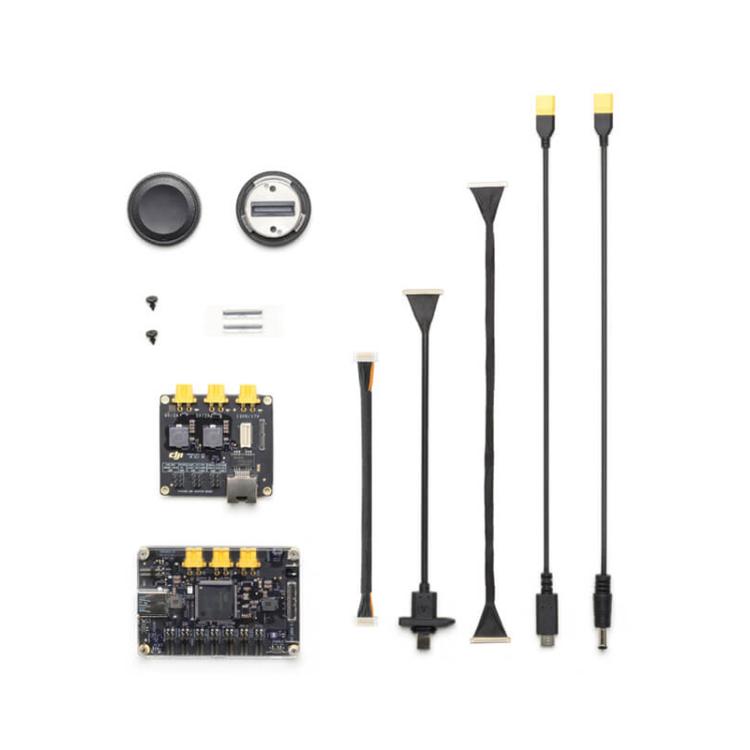

- Package contents: DJI E-Port V2 development board x 1, DJI E-Port V2 coaxial cable x 1, XT30 to DC5.5 power cable x 1, XT30 to USB-C power cable x 1, Skyport V3 coaxial cable x 1, Skyport V3 coaxial cable connector terminals x 2, Skyport V3 adapter ring x 1, X-Port adapter board x 1, X-Port flexible cable x 1
- Important notes: Ensure proper heat sink and metal housing design when integrating the adapter board into a finished payload.
- Monitor for sparks, smoke, burning odor, or other abnormalities after powering on the adapter board.
- Total output power from all three XT30 power output ports must be less than the maximum output power of a single port on the aircraft.
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
