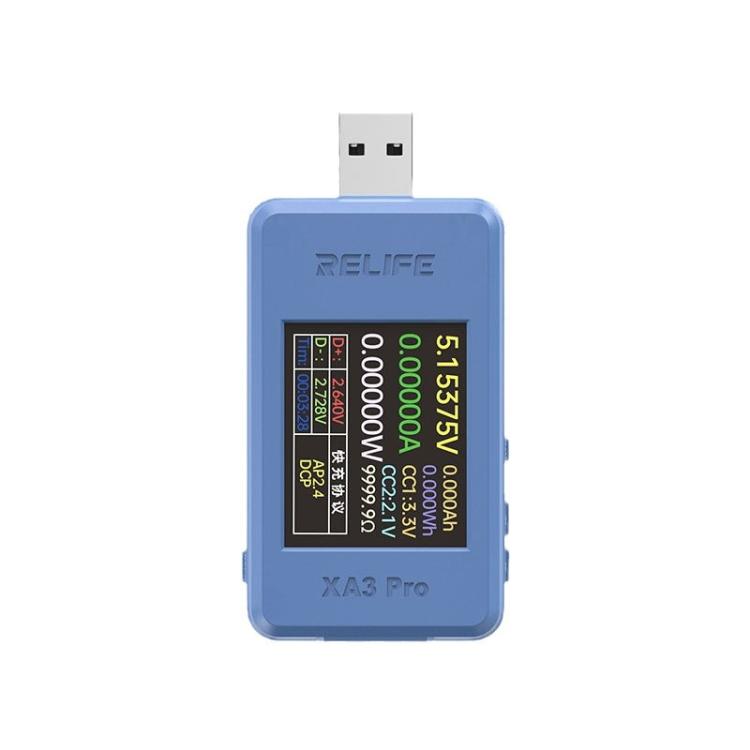

RELIFE XA3 Pro USB / Type-C Smart Detector Fast Charging Protocol Identification Detection

1. Voltage range: 4-24V
2. Current range: 0-6.5A
3. Power range: 0-156W
4. D+/D- voltage range: 0-3.3V
5. Capacity range: 0-9999.99Ah
6. Power consumption range: 0-9999.99Wh
7. Cable internal resistance range: 0-9999.99 ohms
8. Resolution: 0.00001 (V/A/W)
9. Sampling rate: 3.2Msps
10. Display: 1.77 inch TFT LCD
11. Size: about 8.2 x 4.28 x 1.23cm
12. Weight: about 27.5g

Features:
1. Automatically identify fast charging protocols, support PD, QC2.0, QC3.0, SCP, AP2.4A, DCP fast charge identification detection
2. 6-digit display, high-precision maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging
3. Support 6.5A high current measurement, easy to test various high current detection data, wide range of uses
4. 1.77 inch high-definition display, one screen with multiple displays, long press to flip the display, ripple voltage and current curve display
5. Test various USB/Type-C digital devices
