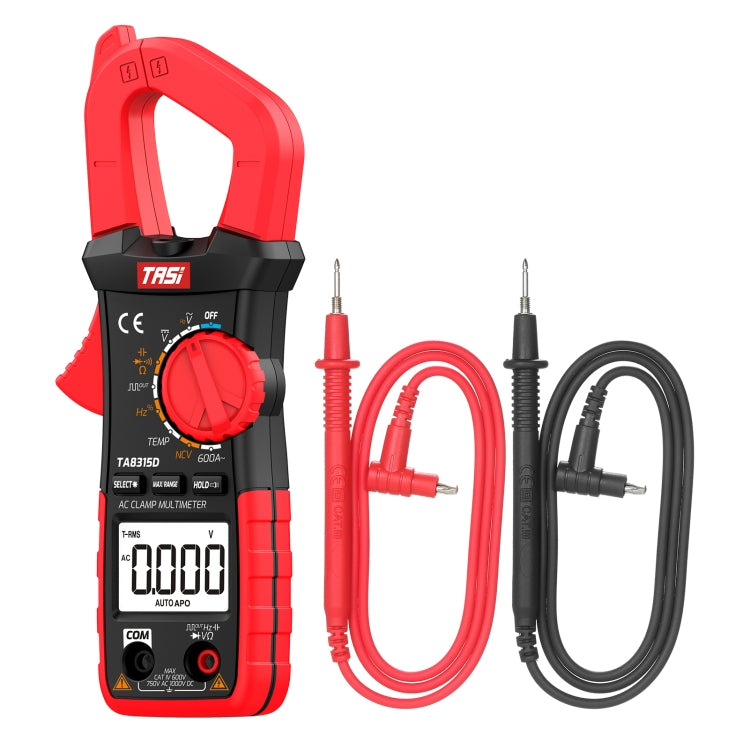

TASI TA8315D Pincers Meter High-Precision Digital Ammeter

1. DC voltage: 1mV-1000V
2. AC voltage: 1mV-750V
3. DC current: 0.1-600A
4. Alternating current: 0.6-600A
5. Frequency: 10Hz-10MHz
6. Measurement method: Double integral A/D conversion
7. Automatic shutdown: After about 15 minutes
8. Sampling frequency: About 3 times/sec
9. Power supply: Two AAA batteries (not included)
10. Function: Square wave output, flashlight lighting, NCV measurement, true effective value, backlight display, on-off alarm, diode measurement, value lock, low voltage display
11. Packing list: Host x1, meter pen x2, temperature thermocouple x2, cloth bag x1, manual x1
12. Opening size of jaws: About 27mm
13. Overall size: About 17.6x6.7x3.3cm
14. Weight: About 300g

Features:
1. Large jaw design, the opening size is about 27mm, suitable for a variety of wire measurements
2. For NCV measurement, set the gear to NCV, and when the non-contact voltage sensing area is close to the circuit to detect AC voltage, the clamp meter will display and buzzer alarms of different frequencies according to the magnitude of the detected voltage intensity
3. Large screen display, smart chip LCD display screen, clear writing, with backlight function, easy to read in the dark environment
4. With flashlight lighting, the flashlight function can be turned on when used in the dark or dark environment, which is convenient for measurement
5. The panel is tidy and the function parameters are clear at a glance
6. Lightweight and portable, easy to operate
