VAS 5054A VW ODIS V2.0 Support UDS Protocol with Bluetooth Multi-language Diagnostic Tool(Grey)

Note
You need to disable your antivirus software (including the system built-in one) before installation. If you mind this, please do not purchase.

Features
1. The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers, mainly for A-U-D-I VW Seat.
2. It is bluetooth version.
3. Multi-language available: You can choose any language you need freely, English / Chinese / Japanese / Portuguese / Romanian / Korean / Dutch / Polish / Turkish / Spanish / French / Italian / Croatian / Danish / German / Swedish / Finnish / Slovenian / Czech / Russian / Greek / Polish
4. Newest version: VAG ODIS V2.0
5. VAS 5054A hardware support online coding, but our software do not support online coding, need use for VW dealer software
6. Supported Car models: For VW A-U-D-I SKODA SEAT
7. ODIS System Core Advantage: Realizing higher quality and lower cost on repair through high-efficiency diagnosis process
8. The GFF database guided by centralized management posts fault information and solution directly.
9. A full range of integration from developing to after sale service makes procedure basis reliable.
10. The integration of diagnostic system (eg: Elsa pro) further enhances the core processes of service.
11. Systematically optimizes technician diagnostic procedure and saves their time cost.
12. The optimization of diagnostic procedure makes the distributor cost reasonable
13. VAS 5054A ODIS V1.2.0 Computer Windows System Requirements:
1) Windows System Language: American English
2) Windows XP(xp2/xp3)
3) System C:// have to be NTFS format
4) C:// need to have at least 40GB space for installing VAS5054A
14. Bluetooth version:
1) The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
2) The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
3) No cables are needed for vehicle diagnostics using the VAS 5054A.
4) The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
5) The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported

Specification
1. The vehicle protocols are handled directly in the VAS 5054A.
2. This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
3. The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
4. The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
5. Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).
6. The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
7. Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application
8. The following vehicle bus systems are supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
9. 5054A is original equipment; the recognition of original pattern can only supports to repair the system, but can not let the system stop working.

Package list:
1. 1 x VAS 5054A Main unit
2. 1 x USB Cable
3. 1 x USB Bluetooth Adapter
4. 2 x CD Software

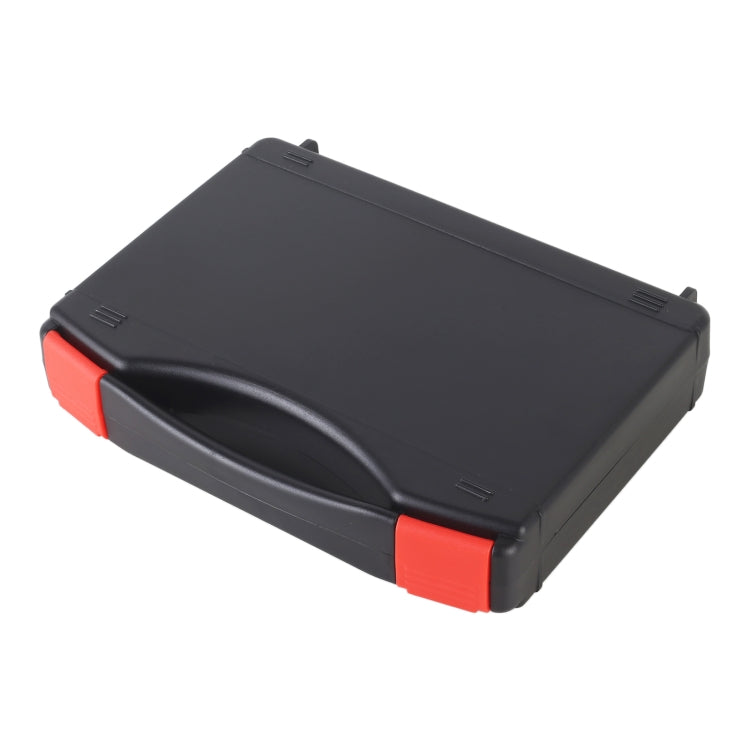

5. 1 x Carry Case
