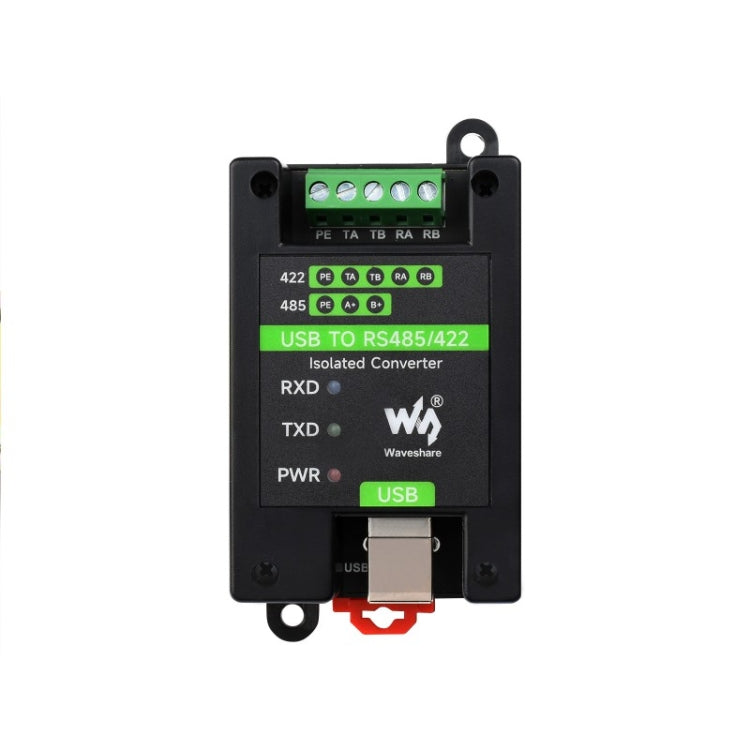

Waveshare 23949 USB To RS485/422 Isolated Converter, FT232RL And SP485EEN
Waveshare 23949 USB To RS485/422 Isolated Converter, FT232RL And SP485EEN
SKU: TBD05765731
Normaler Preis
£27.73
Normaler Preis
Verkaufspreis
£27.73
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features:
1. Onboard original FT232RL and SP485EEN chips; fast communication speed, stable and reliable, better compatibility
2. On-board integrated power isolation, providing stable isolation voltage, no additional power supply is required at the isolation end
3. Onboard integrated digital isolation, signal isolation, high reliability, strong anti-interference, low power consumption
4. Onboard TVS (Transient Voltage Suppressor), effectively suppressing surge voltage and transient peak voltage in the circuit, lightning protection and anti-static
5. On-board self-recovery fuse and protection diode to ensure stable current/voltage output, provide over-current/over-voltage protection, and improve impact resistance
6. Onboard 15KV ESD isolation protection and 600W lightning surge protection
7. The RS485/RS422 interface has a 120R terminal resistor on board, which is enabled by default and can be configured by jumpers
8. 3 LEDs to indicate power and transceiver status
9. Industrial-grade rail-type ABS shell design, small size, easy installation, high cost performance
Product parameters:
1. Baud rate: FT232RNL (300bps-3Mbps)
2. Host port: USB
3. Device port: RS485/422
4. Working voltage: 5V
5. Connector: USB-B
6. Protection: 200mA resettable fuse, ESD protection
7. Transmission distance: about 5m
8. Connector: screw terminal
9. Pins: A+, B-, PE
10. Direction control: hardware automatic control
11. Protection: 600W lightning protection surge suppression, 15KV ESD protection (120R balance resistor on board)
12. Transmission distance: about 1.2km (low speed)
13. Transmission method: point-to-multipoint (MAX32 nodes, repeaters are recommended for more than 16 nodes)
14. LED indicator light: PWR: red power indicator light, it is on when there is a USB connection and voltage is detected; TXD: green TX indicator light, it is on when the USB port sends data; RXD: blue RX indicator light, when the device port sends data back lights up
15. Working environment temperature: minus 15-70 degrees Celsius
16. Humidity: 5%-95% RH
17. Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
18. Shell: rail type ABS shell, suitable for 35mm DIN rail
19. Product size: 81.9 × 54.0 × 32.0mm
20. Weight: 104 grams
Packing list:
-USB to RS485/422 x 1
-1.2mUSB-A to USB-B cable x 1
-Screwdriver x 1
