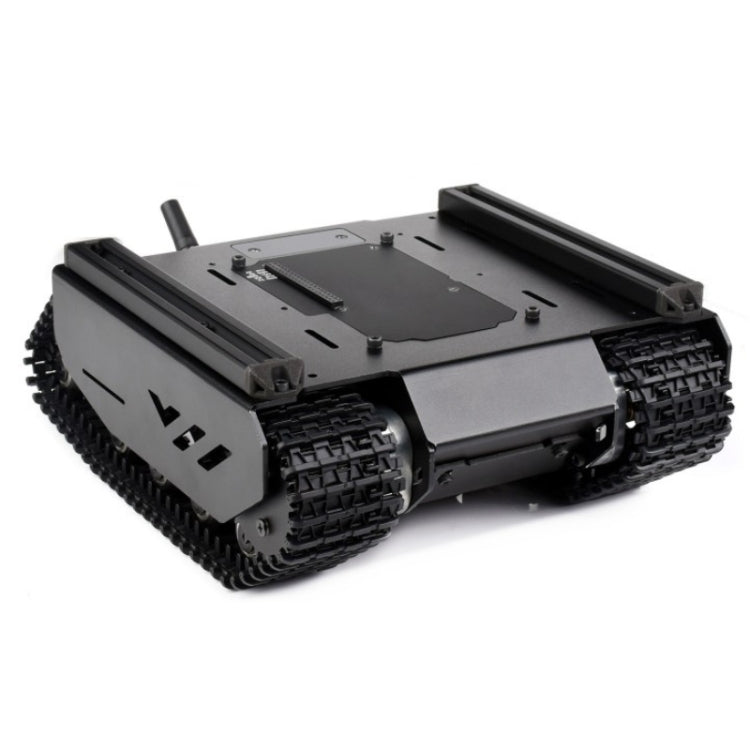

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer
Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer
SKU: TBD02637841
Normaler Preis
£228.89
Normaler Preis
Verkaufspreis
£228.89
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Dimensions: 231x197x151mm
2. Suspension system: 4×2 (independent)
3. Chassis height: 26mm
4. Guide rail center distance: 170mm
5. Track width: 44mm
6. Running speed: 0.25~1m/s
7. Track horizontal ground length (no load): 115mm
8. Suspension material: 1.5mm (thickness) stainless steel
9. Track climbing ground length (with large load): 170 mm
10. Body material: 2 mm (thickness) 5052 aluminum alloy
11. Weight: 1.9 kg
12. Vertical obstacle clearance capability: 40mm
13. Driving Payload: 6.2kg
14. Climbing ability: 36 degrees
15. Battery holder: 18650 lithium battery x 3 (not included)
16. Turning radius (min): 0 meters (rotating in place)
17. Charging time: 1.5 hours
18. Battery life: 1 hour (full power continuous output)
19. Motor power: 5.2W×2
20. Remote control function: WIFI, AP/STA
21. Motor encoder: basic pulse 11PPR
22. Communication interface: UART/serial bus servo interface/IIC
23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development
24. Support multiple host computers, can communicate with ESP32 slaves through the serial port
25. Motors with encoders can get speed feedback for closed-loop speed control
26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time
27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.
28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road
29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary development
