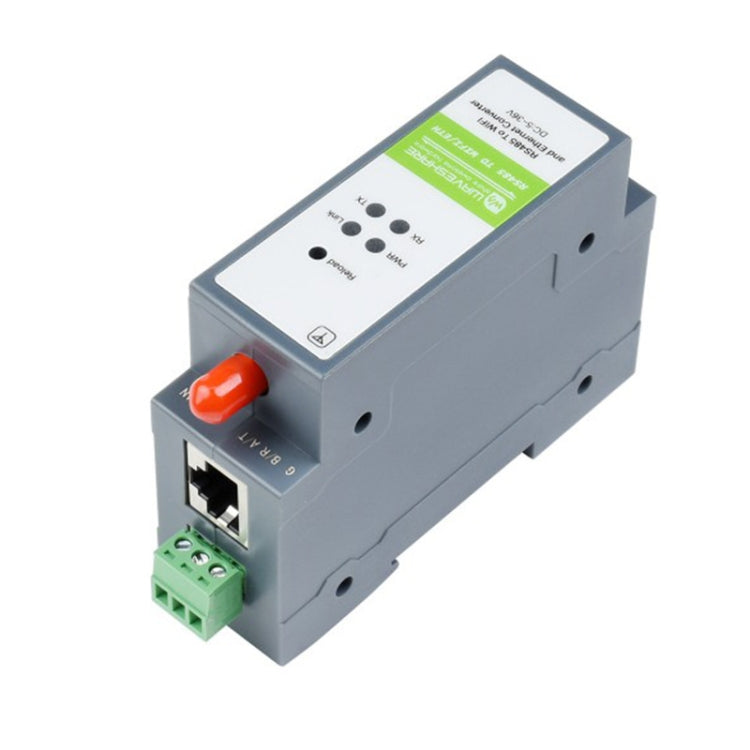

Waveshare Rail-Mount Serial Server RS485 to WIFI/Ethernet Module, Modbus MQTT Gateway
Waveshare Rail-Mount Serial Server RS485 to WIFI/Ethernet Module, Modbus MQTT Gateway
SKU: DIY0282
Normaler Preis
£44.79
Normaler Preis
Verkaufspreis
£44.79
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features
This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
Outline:
1. Communication interface: RS485, screw terminal
2. Power supply: 5 ~ 36V DC, screw terminal
3. Case: PC + ABS, V0 flame retardant grade
4. Dimensions: L x W x H: 109.66 x 28 x 64.71 mm
Comunication:
1. Ethernet: 10 / 100M auto-negotiation RJ45 connector
2. WIFI: 802.11b/g/n compliant
3. Serial port: RS485 interface (Anti-surge, Lightningproof, Over-current protection)
Wireless specification:
1. Frequency Band: 2.412 ~ 2.484 GHz
2. Wireless network: Station / AP / AP+Station Mode
3. Security mechanism: WPA-PSK / WPA2-PSK
4. Encryption type: TKIP / AES
5. Transmitting power:
- 802.11b: +19dBm (11Mbps)
- 802.11g: +18dBm (54Mbps)
- 802.11n: +17dBm (HT20, MCS7); +17dBm (HT40, MCS7)
6. Receiving sensitivity:
- 802.11b: -89dBm (11Mbps)
- 802.11g: -81dBm (54Mbps)
- 802.11n: -73dBm (HT20, MCS7); -71dBm (HT40, MCS7)
Serial specification:
1. Baudrate: 300 ~ 460800 bps
2. Parity bit: None, odd, even, mark, space
3. Data bit: 5 ~ 9 bits
4. Flow control: N/A
Software
1.Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
2. Configuration: Host, web browser, serial AT command
3. Communication method: TCP/IP direct communication, VCOM
4. Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environmental requirements
1. Working temperature: -40 ~ 85 degree C
2. Storage temperature: -45 ~ 125 degree C
3. Humidity range: 5% ~ 95% relative humidity
Package List
1. RS485 TO WIFI/ETH x 1
2. Antenna x 1
This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
Outline:
1. Communication interface: RS485, screw terminal
2. Power supply: 5 ~ 36V DC, screw terminal
3. Case: PC + ABS, V0 flame retardant grade
4. Dimensions: L x W x H: 109.66 x 28 x 64.71 mm
Comunication:
1. Ethernet: 10 / 100M auto-negotiation RJ45 connector
2. WIFI: 802.11b/g/n compliant
3. Serial port: RS485 interface (Anti-surge, Lightningproof, Over-current protection)
Wireless specification:
1. Frequency Band: 2.412 ~ 2.484 GHz
2. Wireless network: Station / AP / AP+Station Mode
3. Security mechanism: WPA-PSK / WPA2-PSK
4. Encryption type: TKIP / AES
5. Transmitting power:
- 802.11b: +19dBm (11Mbps)
- 802.11g: +18dBm (54Mbps)
- 802.11n: +17dBm (HT20, MCS7); +17dBm (HT40, MCS7)
6. Receiving sensitivity:
- 802.11b: -89dBm (11Mbps)
- 802.11g: -81dBm (54Mbps)
- 802.11n: -73dBm (HT20, MCS7); -71dBm (HT40, MCS7)
Serial specification:
1. Baudrate: 300 ~ 460800 bps
2. Parity bit: None, odd, even, mark, space
3. Data bit: 5 ~ 9 bits
4. Flow control: N/A
Software
1.Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
2. Configuration: Host, web browser, serial AT command
3. Communication method: TCP/IP direct communication, VCOM
4. Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environmental requirements
1. Working temperature: -40 ~ 85 degree C
2. Storage temperature: -45 ~ 125 degree C
3. Humidity range: 5% ~ 95% relative humidity
Package List
1. RS485 TO WIFI/ETH x 1
2. Antenna x 1
