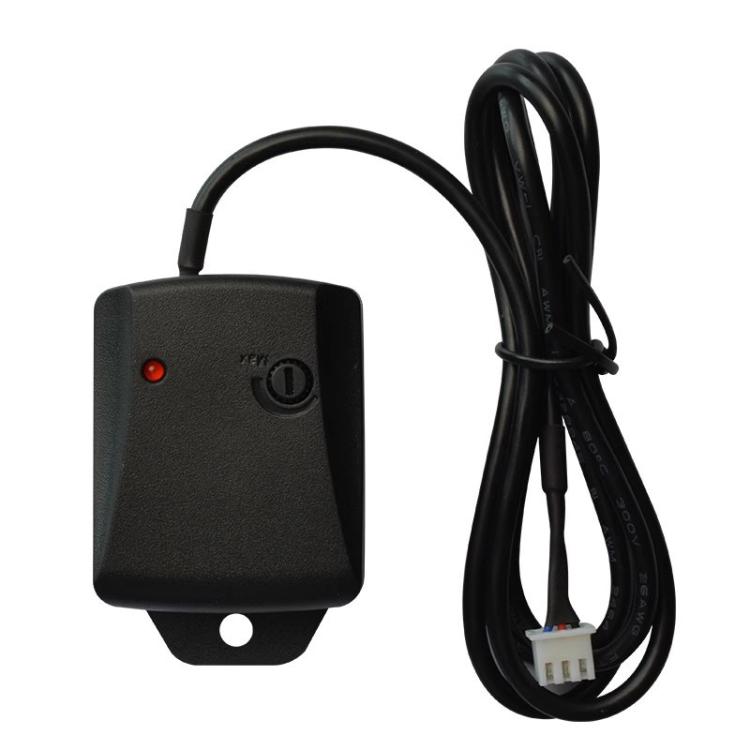

XH2.54/XF2510 3P 12V Car Anti-theft Vibration Sensor(GY166)
XH2.54/XF2510 3P 12V Car Anti-theft Vibration Sensor(GY166)
SKU: TBD0606219301A
Normaler Preis
£10.80
Normaler Preis
Verkaufspreis
£10.80
Versand wird beim Checkout berechnet
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Output current: 100mA (MAX)
2. Sensitivity: -105dB
3. Quiescent current: 6mA
4. Rated operating Voltage: 12V
5. Operating voltage: 5V (MIN)
6. Cable type: 1m shielded cable
7. Adhesive backing for easy mounting
8. Piezoelectric and spring sensing components for high accuracy and stable operation
9. Clockwise rotation increases sensitivity, counterclockwise rotation decreases sensitivity
10. Vibration sensing system composed of a buzzer and contact spring, offering high sensitivity, speed, and performance
11. Internally, a piezoelectric ceramic component and spring weight structure detects vibration signals, which are amplified and output via an op amp such as the LM358
Pin description:
1. The blue wire is the signal output via the 358 op amp. It is high when there is no vibration (IO port pull-up resistor) and low when there is vibration.
2. Red wire: +12V power supply.
3. Black wire: ground.
Pin definition:
1. Blue wire: signal output. Each vibration detected generates a pull-down signal for one cycle, allowing for interfacing with a microcontroller.
2. Black wire: ground.
3. Red wire: positive power supply (5-15V DC).
