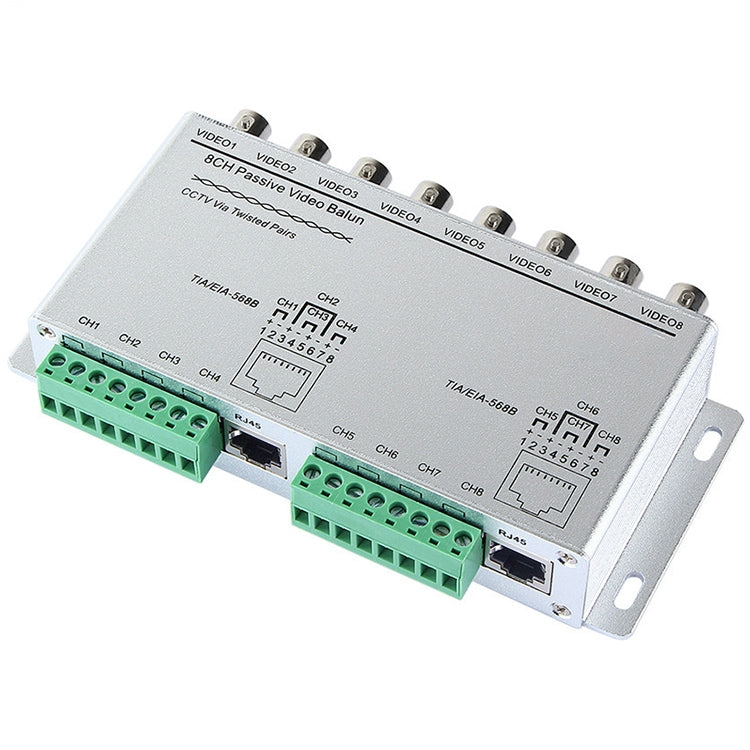

8 Channel Passive UTP Video Balun(Silver)
8 Channel Passive UTP Video Balun(Silver)
In stock
Couldn't load pickup availability
Shipping Information
Shipping Information
FAST DELIVERY to UK & 40+ countries.
Delivery: Typically 4-8 working days total including 1-3 days handling to the UK (estimated times for other locations shown at checkout)
Import duties and taxes may apply depending on destination. UK orders under £135 or less ship DDP with no extra charges at delivery. Orders over £135 may have import duties.
Ships from China. Your order will be processed and dispatched from the warehouse within 1–3 days if you order by 12 AM London.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered, any costs to you will be refunded.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Easy Returns
Easy Returns
Start your return online in seconds. No forms, no hassle.
Trusted by DIY & repair professionals in 40+ countries
1) Adopt differental signal transmissin with excellentanti-jamming ability
2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit of video signal
3) Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
4) Up to 1500m with any active UTP video receiver
5) No power required
6) Built-in transient suppression protection
Technical Specification:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60DB
3) Impedance: BNC ternimal: 75Ω, Connection terminal: 100Ω
4) Working temperature: -10°C - 70°C
5) Storage temperature: -30°C - 70°C
6) Applicable to NTSC, PAL, SECAM, and CCIR systems.
7) Power supply: DC 12V (Max: 50mA)
8) Characteristic impedance: 100Ω ± 20Ω
9) DC loop resistance: 18Ω/100m
10) Differential capacitance: 62pf/m (maximum)
11) Size: 157x65x29mm
12) Weight: 167g
