BSIDE ZT102A LCD Display 6000 Words AUTO Intelligent Gear Automatic Range Digital Multimeter

BSIDE ZT102A LCD Display 6000 Words AUTO Intelligent Gear Automatic Range Digital Multimeter

SKU: TBD05749596
Regular price 418,00 kr
Regular price Sale price 418,00 kr
Sale Sold out
In Stock
CHN This item is shipped from China.

Processed in 0–3 days

Quantity

Product Details

Brand: BSIDE

Features:
1. The EBTN LCD screen enhances the reading experience and facilitates reading.
2. Integrated design of manual and automatic modes: manual or automatic measurement is possible.
3. This multimeter can measure temperature, capacitance, diode, NCV (non-contact voltage detection), ohm, Hz, AC/DC voltage, AC/DC current, etc.
4. Handheld multimeter, easy to carry and operate, stable and reliable, 6000 count display.
5. Comes with a protective bag, easy to carry around.

parameter:
1. Display (LCD): 6000 times
2. Material: ABS/PVC
3. Update speed: 3 times/sec
4. Dimensions: 130 x 65 x 32mm
5. Power supply: 1.5V (AAA) x 2 (not included)
6. DC voltage: 600mV (+1.0%+10 of A/CN.9/XL/CRP.1/Add.3), 6V/60V/600V/1000V (+0.5%+3)
7. AC voltage: 600mV (+3.0%+3) 6V/60V/600V/750V (+1.0%+3)
8. DC current 600uA / 6000uA (+ 1.5% + 3), 60mA / 600mA (+ 1.5% + 3), 10A (+ 1.5% + 3)
9. Alternating current 600uA/6000uA(+1.5%+3), 60mA/600mA(+1.5%+3), 10A(+1.5%+3)
10. Resistance: 600 (+0.5%+3) 6K/60K/600K/6M (+0.5%+2) 60M (+1.5%+3)
11. Frequency: 5/50/500 / 5k / 50k / 500k / 5M / 10M (+ 0.1 + 3)
12. Capacitance: 10nF (+ 5.0 + 20) 100nF / 1uF / 10uF / 100uF (+ 2.0% + 5) 1000uF / 10000uF (+ 5.0% + 5)
13. Temperature: 1000~-20 degrees Celsius/-4~1832 degrees Fahrenheit (ZT102)

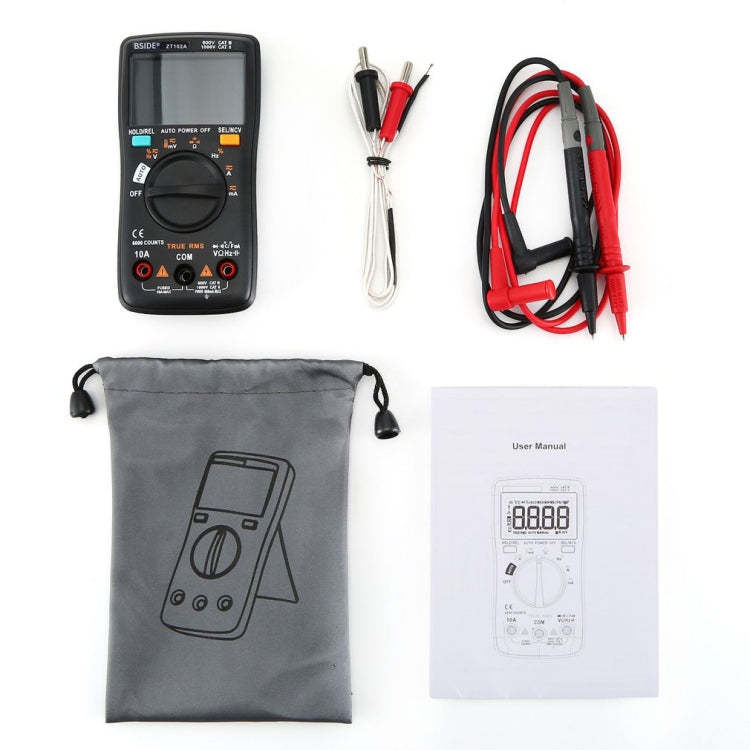

packing list:
1 host
1 x English manual
1 x test lead
1 x temperature probe
1 x drawstring bag
