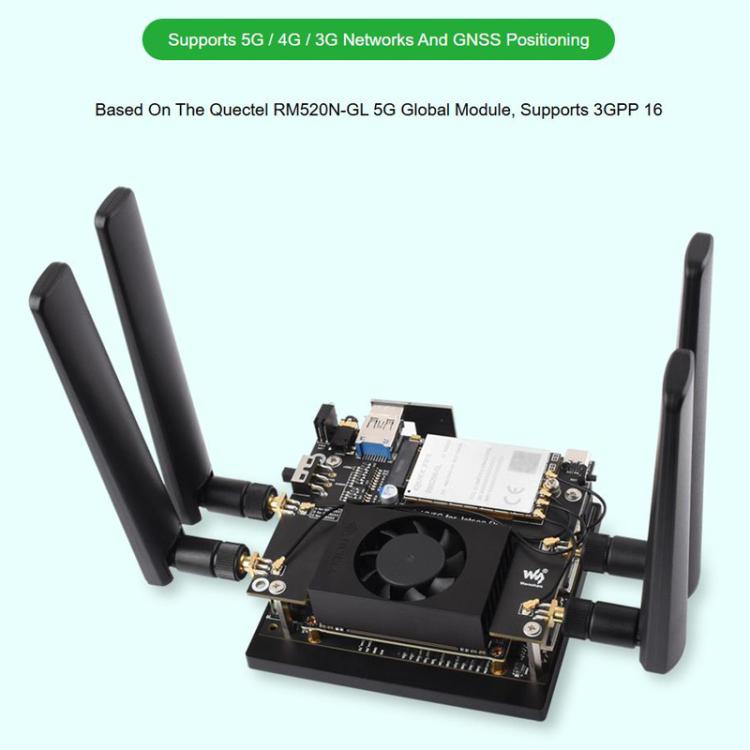

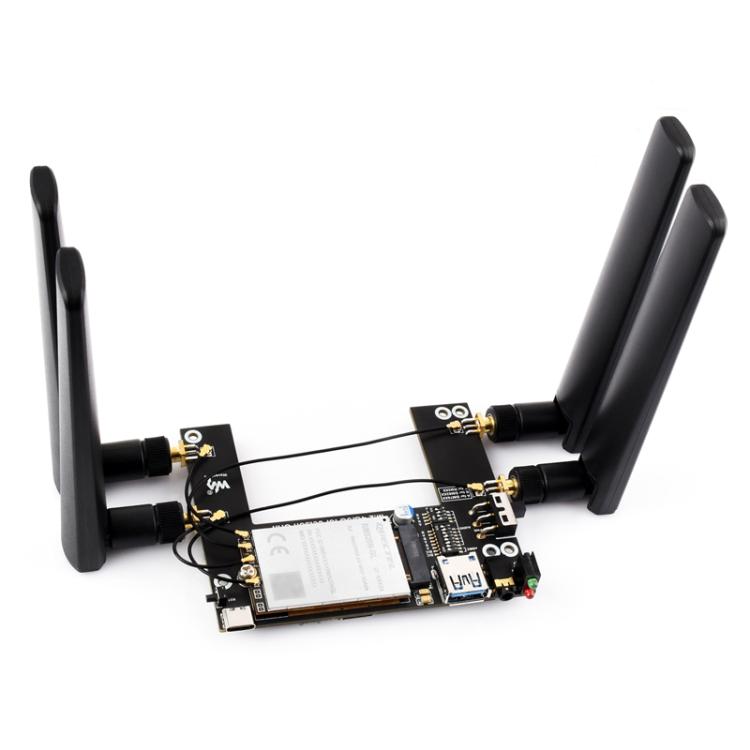

For Jetson Orin WAVESHARE 5G / 4G / 3G Module, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS Positioning

1. 5G standard: 3GPP Release 16
2. Chipset solution: Qualcomm Snapdragon X62
3. LTE: 1.6Gbps (DL) / 200Mbps (UL)
4. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)

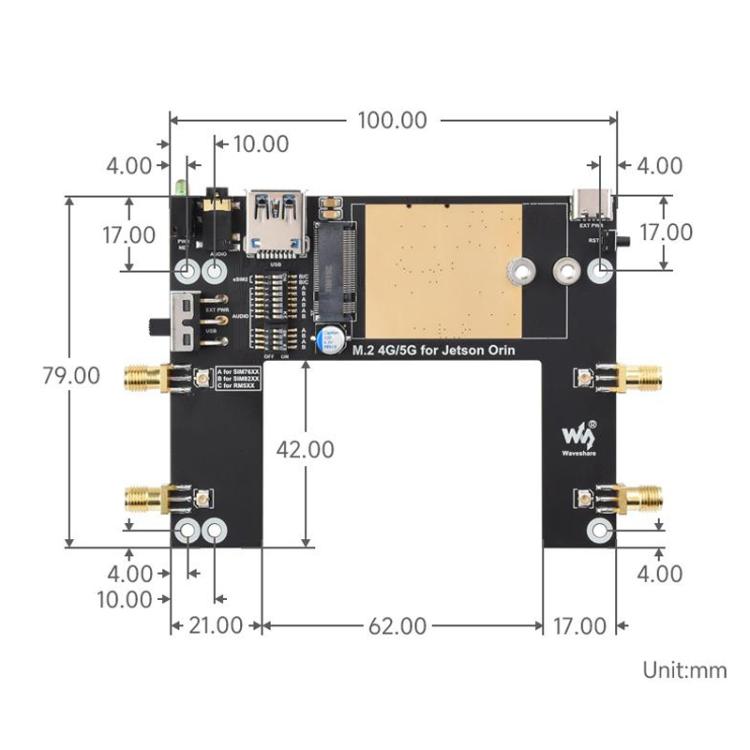

5. Size: about 10 x 7.9cm

Features:
1. Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode and multi-band capabilities
2. Integrated dual-frequency positioning across multiple satellite constellations: GPS, GLONASS, BeiDou, Galileo, and QZSS

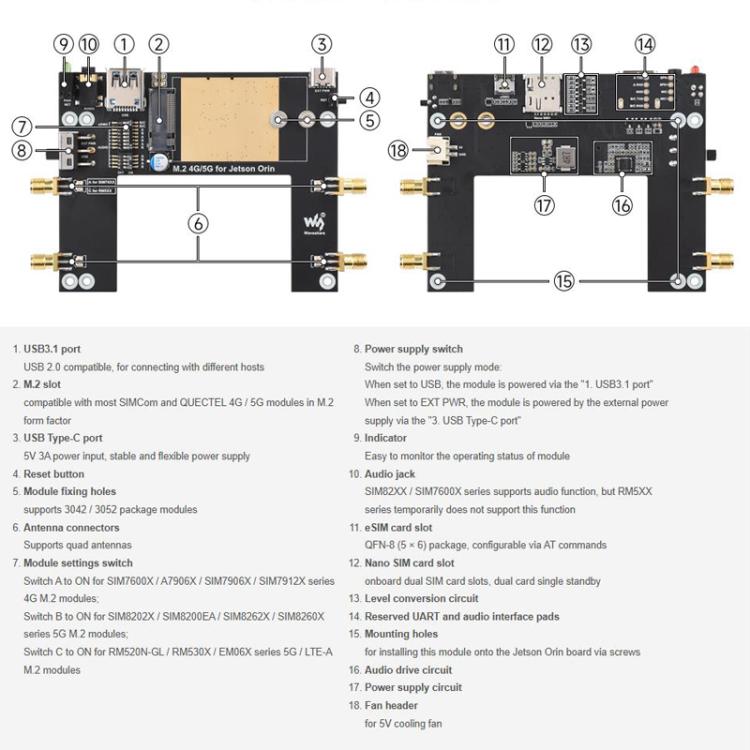

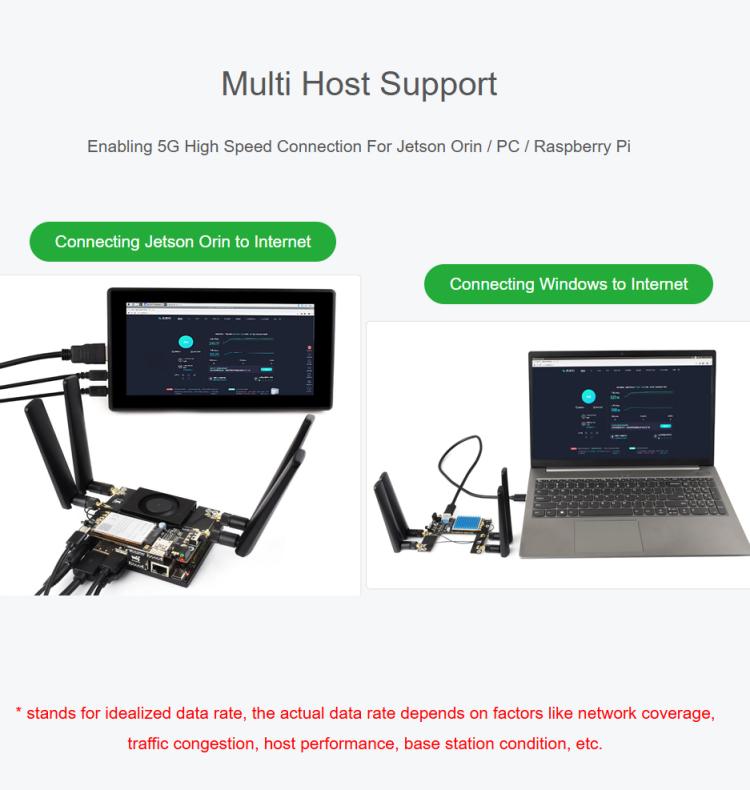

3. Onboard USB 3.1 interface, backward compatible with USB 2.0, enabling high-speed 5G connectivity when connected to Jetson Orin motherboards, computers, or Raspberry Pi
4. Onboard M.2 B KEY standard interface with pin configuration switch
5. Onboard 4x SMA-to-IPEX antenna conversion ports for simplified antenna installation
6. Reserved UART solder pad interface for data transmission with select modules
7. Onboard 1 Nano SIM card slot and 1 eSIM slot packaged as QFN-8 (5 x 6), supporting dual-SIM single-standby with AT command switching
8. Onboard power switch, reset button, and LED indicator for module power control and status monitoring
9. Onboard high-efficiency power circuit capable of delivering up to 3A current

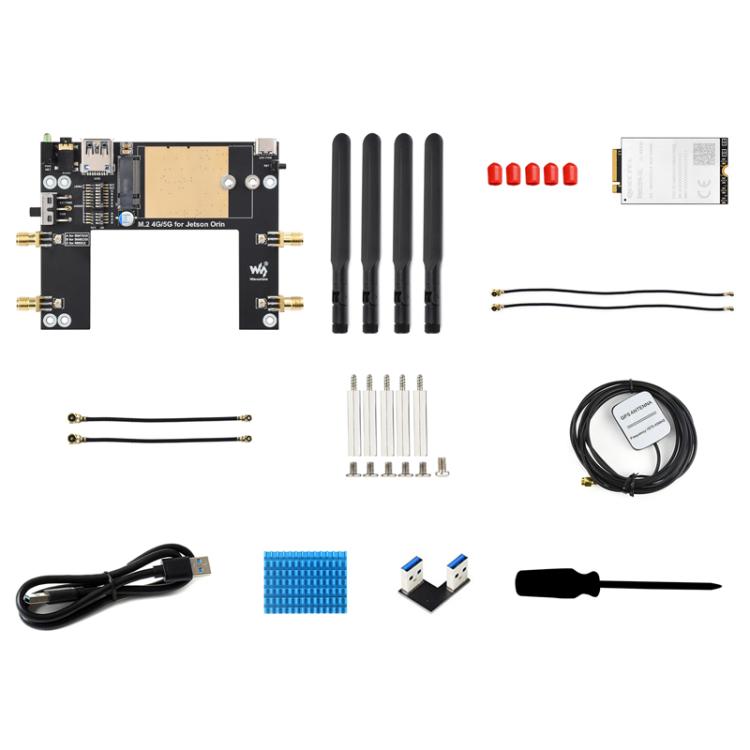

Package list:
- Expansion board x 1
- Module x 1
- 5G antennas x 4
- SMA dust caps x 5
- 13cm IPEX1 to IPEX4 cables x 2
- 5cm IPEX1 to IPEX4 cables x 2
- Screw set x 1
- GPS antenna x 1
- Dual-ended USB cable x 1
- Heat sink x 1
- USB 3.0 adapter x 1
- Screwdriver x 1
