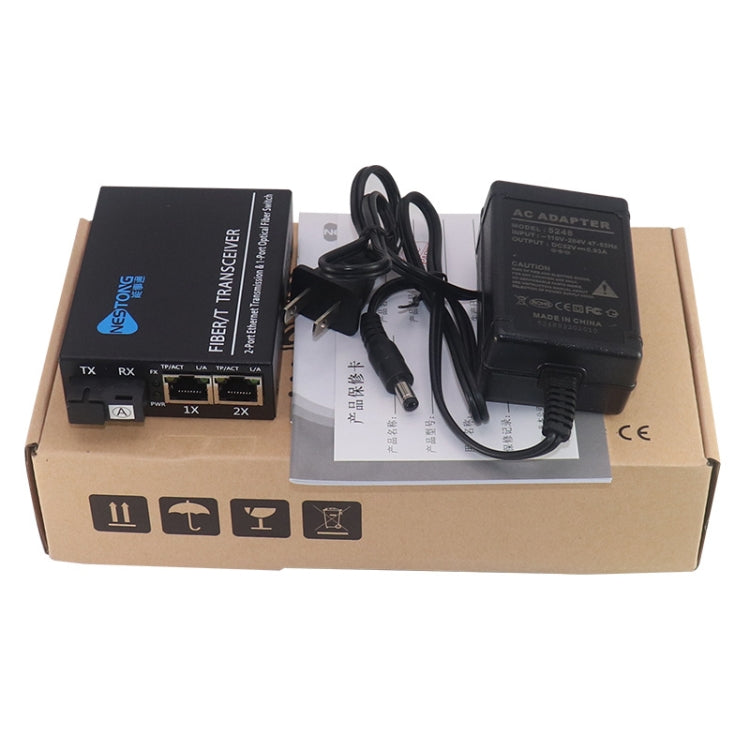

1. 1 optical 2 electrical 10/100/1000M switch, the electrical port supports POE, IEEE 802.3AF/AT international standard, the port power supply power is 15.4W/25.4W, the total power of the whole machine is 30W, the backplane bandwidth is 5.0Gbps, and the network port Transmission support 100 meters, single fiber SC TX1310nm 2. High-quality chip, efficient decoding, stable and fast transmission 3. High-quality cold-rolled plate, double-sided ventilation, fast heat dissipation and long service life 4. Plug and play, no need to set up, support hot plug, connect optical fiber and network cable, automatic matching
Parameter: 1. Production transmission rate: optical port 1.25G/network port 1000M 2. Fiber mode: single mode single fiber 3. Interface type: SC interface & POE electrical interface 4. Transmission distance: 25km 5. Product size: 105mm x 70mm x 25mm 6. Product weight: 427g 7. Working voltage: DC 52V 1A 8. Working temperature: -10 to 60 degrees Celsius 9. Working wavelength: -A end: TX1310nm/RX1550nm -B end: TX1550nm/RX1310nm
