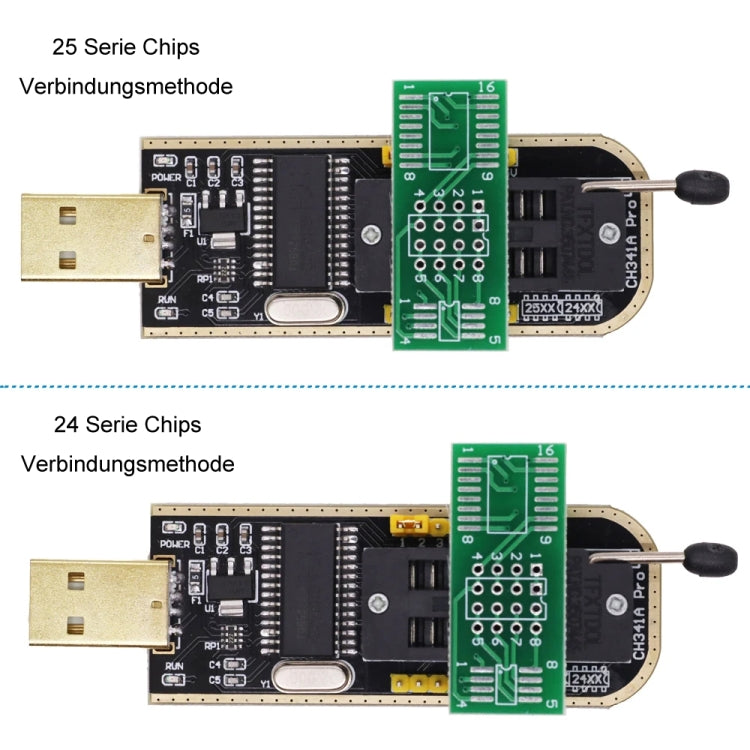

Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool
Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool
SKU: TBD0604399403
Regular price
182,00 kr
Regular price
Sale price
182,00 kr
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Product Details
Type:
MCU Tools
Product features:
1. Adopts FT232BL chip with external EEPRON (93C46)
2. Support Windows 10
3. Support 3 power supply modes: 5V external power supply, 3.3V external power supply, external power supply (requires 3.3V-5V)
4. With 3 LEDs: TXD LED, RXD LED, POWER LED
5. GND, RXD, TXD, 3V3, 5V: using a curved pin pin out
6. The rest of the function PIN: reserved pads CTS, RTS
Instructions for use: (to access the MCU as an example)
1. GND: connected to GND
2. RXD: connect to MCU.TX (Signal flow: MCU.TX - FT232 - PC.RX)
3. TXD: connect to MCU.RX (signal flow: PC.TX - FT232 - MCU.RX)
4. 3V3/5V: output 3.3V or 5V (the module is powered by USB, the jumper cap must be jumped to 3.3V or 5V)
5. RTS: connect to MCU.CTS (signal flow: PC.RTS - FT232 - MCU.CTS)
6. CTS: connect to MCU.RTS (Signal flow: MCU.RTS - FT232 - PC.CTS)
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
