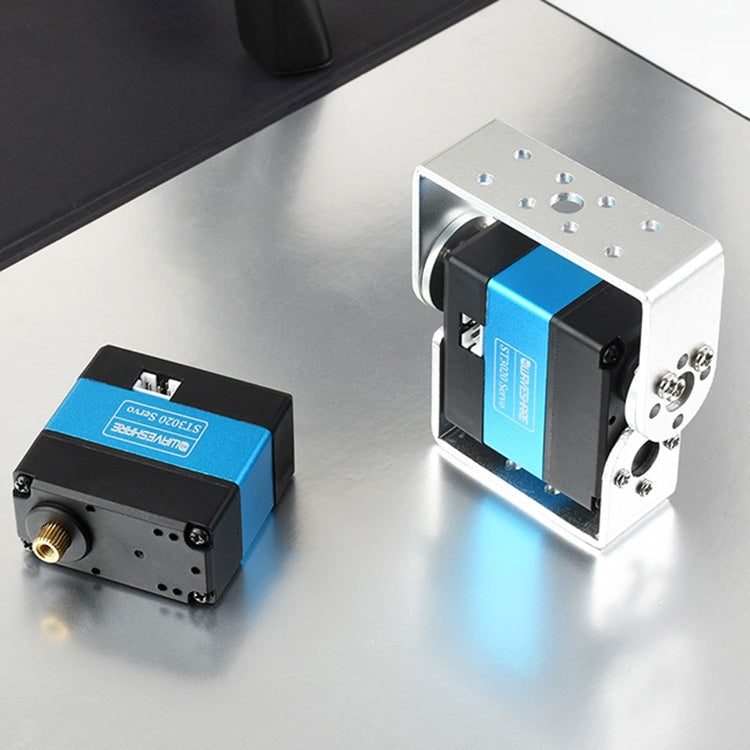

The Waveshare 24703 is a high-torque servo motor designed for precise control in various applications. It is suitable for robotics and automation projects requiring a wide range of voltage and torque specifications.
Torque: 25 kg.cm at 12V
Rotation angle: 360 degrees (0-4095)
Position sensor resolution: 0.088 degrees (360 degrees/4096)
Institutional restriction angle: no restriction
Working voltage: 6-14 V (typical 12V)
Gear type: high-precision metal gear
No-load speed: 0.167 seconds per 60 degrees (60 RPM) at 12V
Encoder type: 12-bit magnetic encoder
ID range: 1-253
Baud rate: 38400 bps to 1 Mbps (default 1 Mbps)
Feedback: position, load, speed, input voltage, current, temperature
No-load current: 200 mA at 12V
Stalled rotor current: 2.7 A at 12V
KT: 9.26 kg.cm/A
Weight: 97 grams
SKU:
TBD06006694
Product Origin:
China
