Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
SKU: DIY0234EU
Regular price
1.521,00 kr
Regular price
Sale price
1.521,00 kr
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
About The Protuct

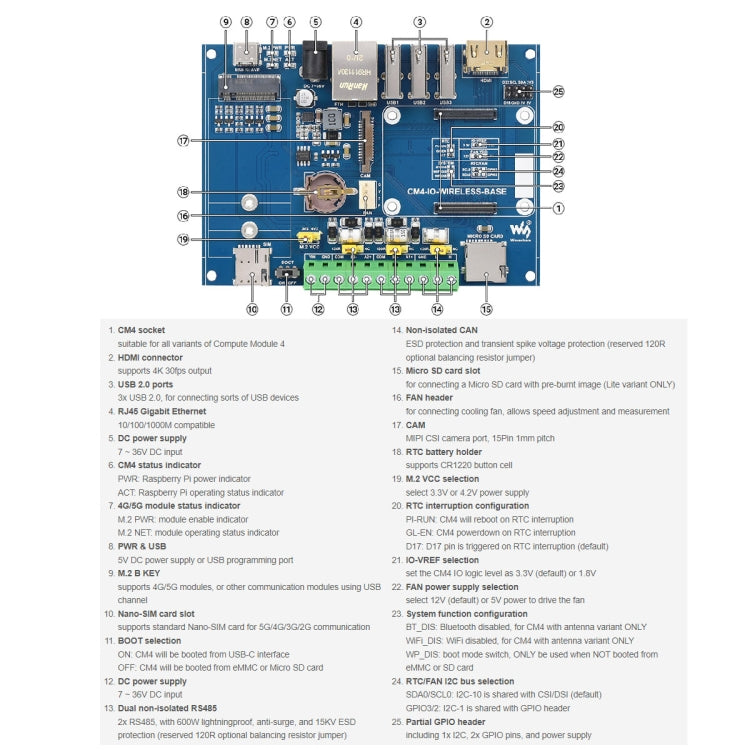

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.
Specifications
1. CM4 socket: For all variants of Compute Module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 2.0 x 3
4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
6. Video: HDMI x 1, support 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm
Package List
1. CM4-IO-WIRELESS-BASE x 1
2. PCIe to 4G/LoRa adapter x 1
3. Screwdriver x 1
4. Screws pack x 1
5. 12V 2A power adapter x 1
This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.
Specifications
1. CM4 socket: For all variants of Compute Module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 2.0 x 3
4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
6. Video: HDMI x 1, support 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm
Package List
1. CM4-IO-WIRELESS-BASE x 1
2. PCIe to 4G/LoRa adapter x 1
3. Screwdriver x 1
4. Screws pack x 1
5. 12V 2A power adapter x 1
