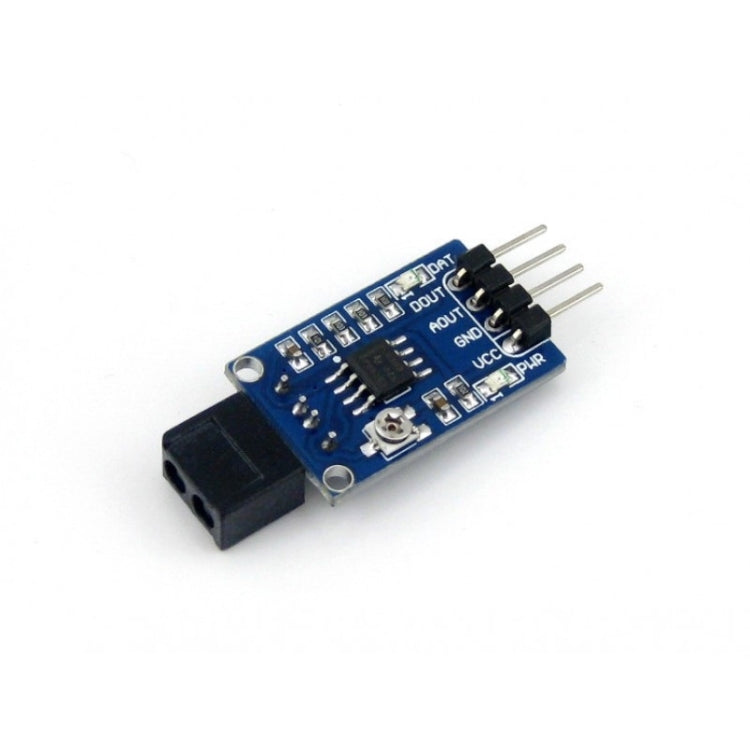

Waveshare Infrared Reflective Sensor
Waveshare Infrared Reflective Sensor
SKU: ZY16355427
Regular price
176,00 kr
Regular price
Sale price
176,00 kr
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Overview
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm
Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter
How to Use
In the case of working with a MCU:
Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)
Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1
1. Reflective infrared Transceiver
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Power: 3.0V ~ 5.3V
2. Dimension: 25mm * 15.9mm
3. Mounting holes size: 2.0mm
Applications
1. Robot path tracking
2. Obstacle-avoiding car
3. Pipeline counter
How to Use
In the case of working with a MCU:
Pinouts
1. VCC: 3.0V ~ 5.3V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT : MCU.IO (digital output)
Package Contents
1. Infrared Reflective Sensor x1
2. 4-pin custom connector jumper wire x1
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
