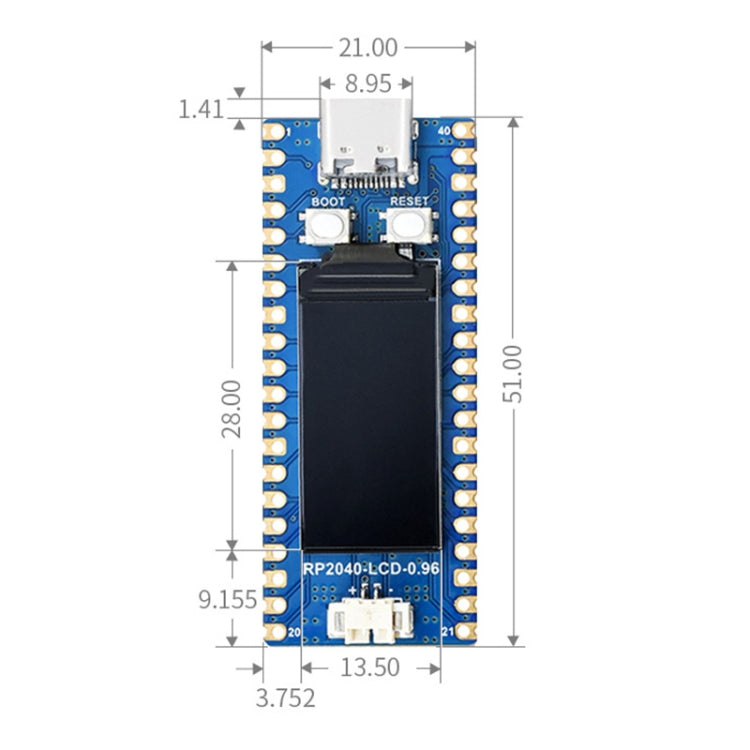

Waveshare RP2040-LCD-0.96 Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader

RP2040-LCD-0.96 is a Pico-like MCU board designed for embedded applications. It is suitable for software development using Raspberry Pi C/C++ SDK or MicroPython.

• Microcontroller: Raspberry Pi RP2040
• Processor: Dual-core Arm Cortex M0+ up to 133 MHz
• SRAM: 264KB
• Flash Memory: 2MB
• Display: 0.96 inch IPS LCD, 160x80 pixels, 65K colors
• USB Connector: USB-C
• Battery Header: Lithium battery recharge/discharge
• DC-DC Chip: TPS63000, 1.8A current switch
• GPIO Pins: 26 multi-function
• Communication Interfaces: 2 x SPI, 2 x I2C, 2 x UART
• ADC: 3 x 12-bit
• PWM Channels: 16 controllable
• On-chip Clock: Accurate clock and timer
• Temperature Sensor: Integrated
• Programming: Drag-and-drop via USB mass storage
• Low-power Modes: Sleep and dormant
• Castellated Module: Allows soldering to carrier boards
• USB Support: USB 1.1 with device and host support
• PIO: 8 x Programmable I/O state machines
• Development Environment: Raspberry Pi C/C++ SDK, MicroPython
