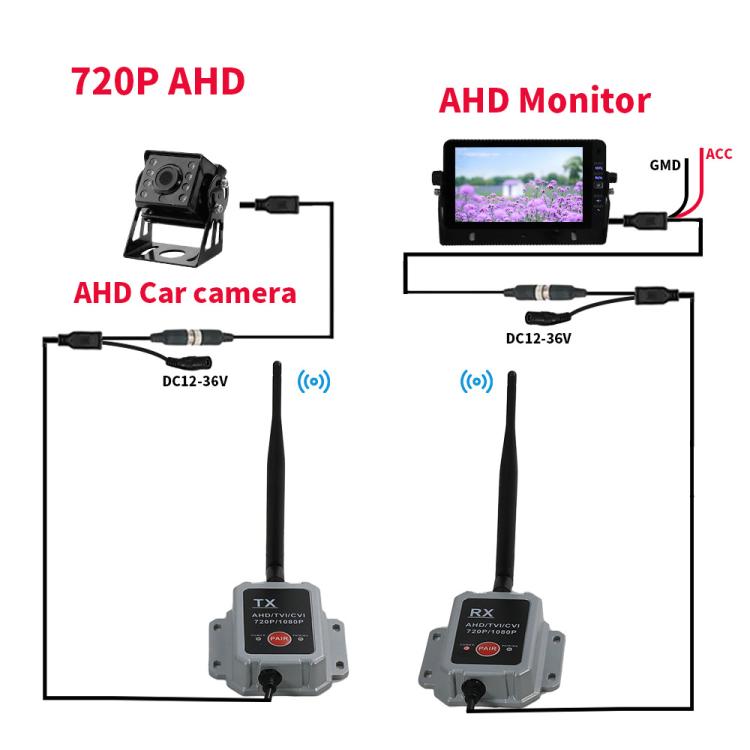

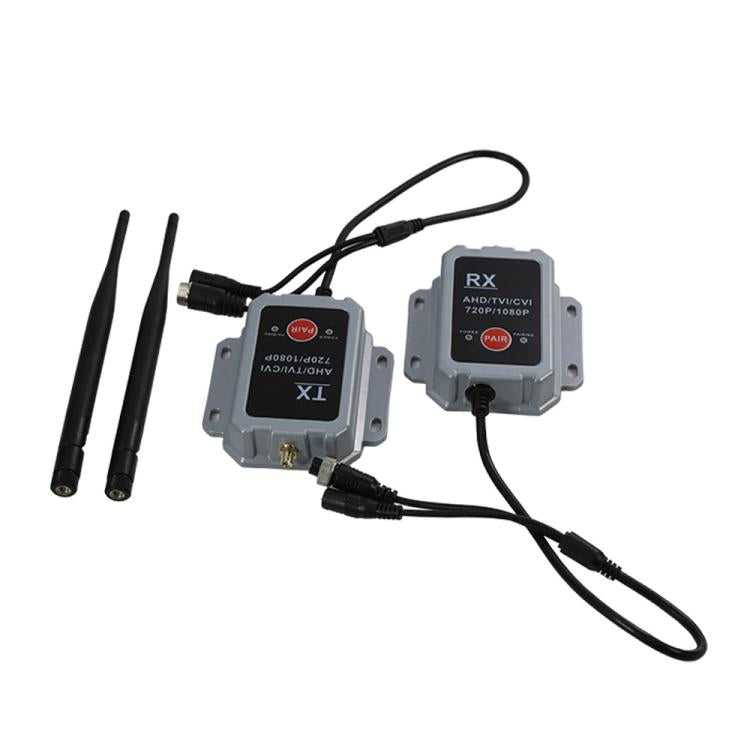

Functions AHD wireless transmitter receiver, suitable for wired truck camera transmitter up to 1080P panoramic wireless set, wireless working distance 200-300 meters. Mainly used for long-distance trucks, camping trailers, trucks with trailers. Support AHD/TVI/CVI signal input and output (transmitter supports 720P, 1080P, CVBS signals, receiver video output is AHD 720P PAL). 12V-36V working voltage, suitable for different vehicles.

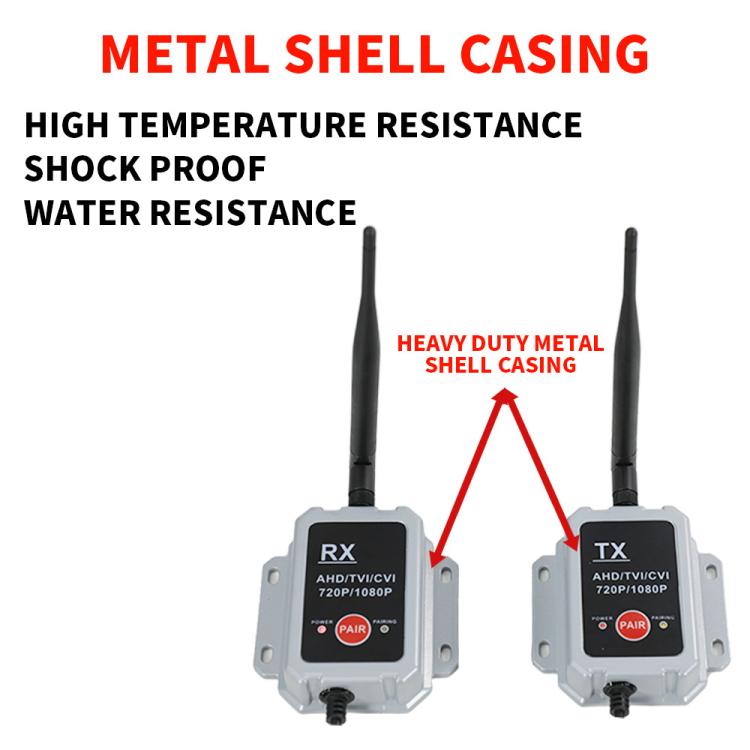

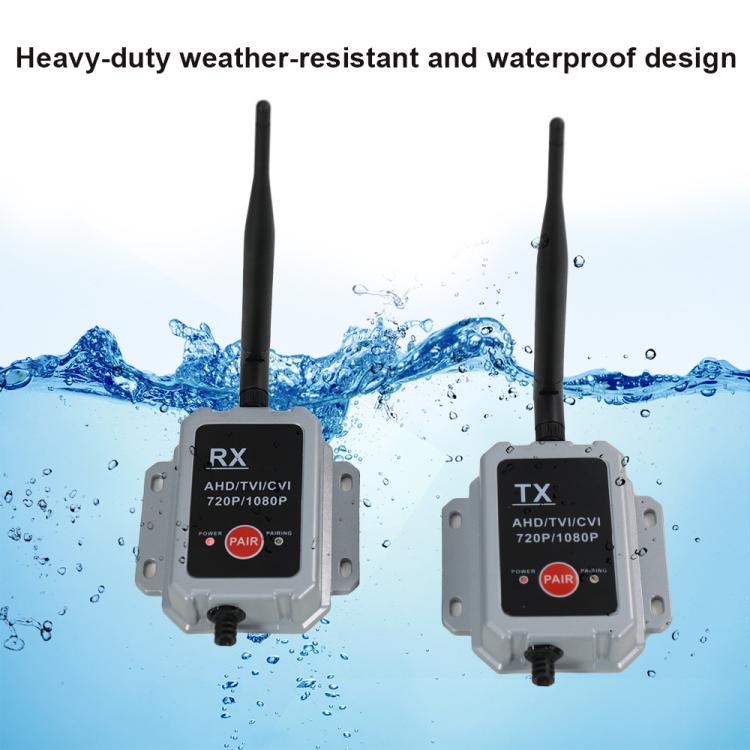

Features 1. Wireless transmitter and receiver for wired cameras 2. Can transmit 1080p AHD/HDCVI/HDTVI CVBS signals 3. Wide signal coverage, wireless distance up to 200-300m 4. Will make adding cameras to trailers simple and installation time shorter 5. Perfect for trailers, RVs and any two-piece equipment 6. Heavy-duty weather-resistant and waterproof design, no fear of bad weather such as rain and snow 7. The receiver output of the monitor is 720p PAL format
Parameters 1. Power input: 12V-36V 2. RF band: 12Mbps 3. Frequency: 2400-2483.5 MHZ 4. Modulation: QPSK/16QAM 5. Working distance: 200-300m 6. Receiving sensitivity: -86dBm QPSK 7. Jump rate: 1200/S 8. Resolution: 1080P 25F/S 9. Compression code: H.264 10. Maximum delay: 100ms 11. TV mode: PAL/NTSC TX Video AHD/TVI/CVI 1080P RX Video AHD/TVI/CVI 720P (1080P is not recommended because the image is unstable and there will be freezes) 12. Operating temperature: -20 to +80 degrees Celsius 13. Operating humidity: 85% relative humidity
