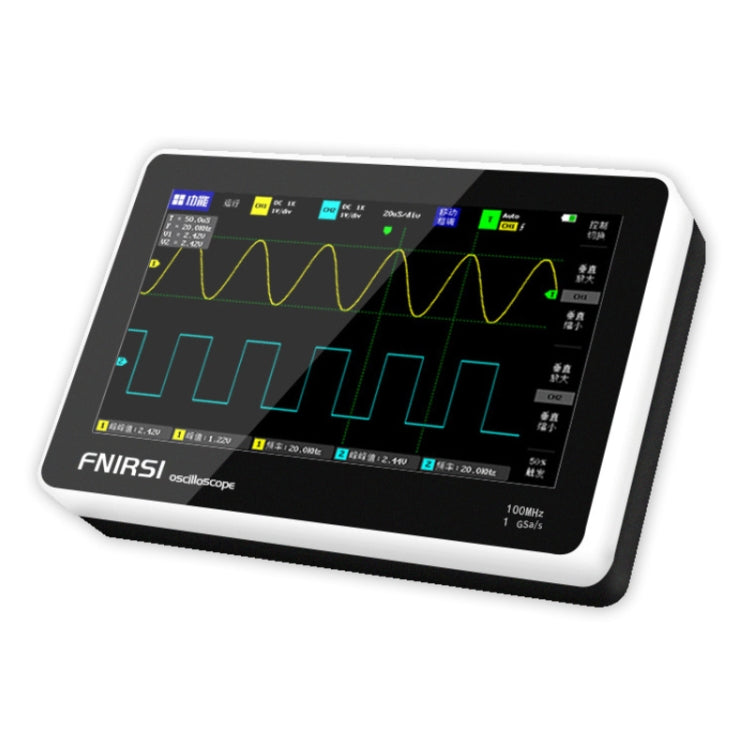

FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscilloscope, US Plug(English)

The FNIRSI 1013D is a dual-channel digital oscilloscope designed for measuring electronic signals. It is suitable for various applications, including electronics repair and testing, with a maximum test voltage of 400V using a 10X probe.

• Material: ABS
• Analog bandwidth: 100MHz
• Number of channels: 2
• Real-time sampling rate: 1GSa/s
• Vertical sensitivity: 50mV/div to 500V/div
• Horizontal time base range: 50S/div to 10nS/div
• Test voltage: 40V (1X probe), 400V (10X probe)
• Storage depth: 240Kbit
• Input resistance: 1M
• ADC precision: 8 bits
• Coupling method: AC/DC
• Trigger mode: single, normal, automatic
• Trigger edge: rising edge/falling edge
• External trigger voltage: 0 to 40V
• Operation method: capacitive touch screen + gesture
• Expansion port: USB image export
• Intelligent anti-burnout: 1X can withstand up to 400V
• Display: 7-inch 800x480 resolution color TFT LCD
• High measuring voltage range: 1X: 0 to 40V, 10X: 0 to 400V, 100X: 0 to 4000V
• Measurement capabilities: Up to 12 parameters including VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Period
• Cursors for manual measurement of period, frequency, and voltage
• Complete trigger function: single, normal, automatic
• Waveform display freeze function
• One-button AUTO function
• Waveform storage and screenshot capability
• Built-in 1GB storage space for 1000 screenshots and 1000 sets of waveform data
• Waveform image manager with thumbnail browsing and detailed viewing
• USB interface for computer connection
• FFT display function for signal spectrum analysis
• Built-in 6000mAh rechargeable lithium battery with 4 hours of continuous use
• Memory compression technology to prevent screen flicker
• Screen brightness adjustment
• Dimensions: 184mm x 124mm x 50mm
• Packing list: FNIRSI 1013D Oscilloscope Host x 1, 100MHz probes (1X and 10X) x 2, USB cable x 1, US charging adapter x 1
