WAVESHARE Luckfox PicoKVM Lightweight IP KVM Remote Management Tool Full Version (With Case and 1.54inch Display)

• Product type: Lan Cable and Tools
• Brand: WAVESHARE

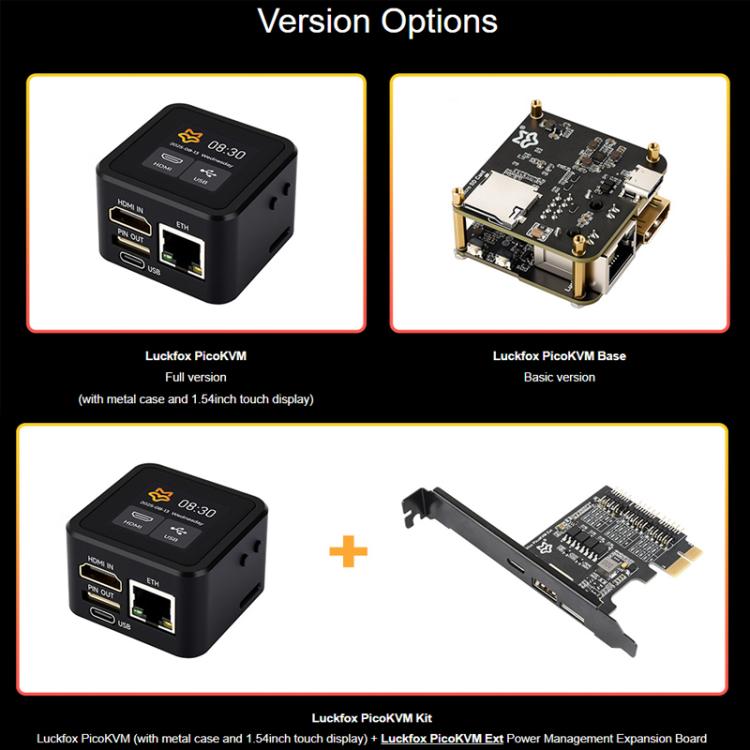

• Compatibility: Various devices
• Material: Not specified
• Key feature: Lightweight IP KVM management
• Color/Variant: Not specified
• Intended use: Remote management and maintenance
• Category: Networking Accessories

1. Luckfox PicoKVM is a lightweight IP KVM management tool that supports remotely acquiring the screen of a target device and simulating HID input over the network, enabling contactless maintenance and management of development boards, computers, and servers. This product features stable, low-latency video capture and remote control capabilities, making it widely applicable to scenarios such as remote computer control and server maintenance. 2. Onboard HDMI input interface: Can be recognized as a monitor by a computer for screen capture.3. Onboard USB interface: Supports mouse, keyboard, and U disk device emulation.3. Onboard 100Mbps Ethernet interface: Used for video and control signal transmission.4. 1.54-inch touch screen: Displays IP address, connection status, and system operating status (Basic version does not have a screen).5. Micro SD card slot: Supports storage expansion.6. 10 expansion interfaces: Can be used for host power on/off control.Function Support:1. Main Controller: RV1106G32. Core: 1 x A7@1.2G3. Memory: 256M DDR34. Hard Drive: 8G eMMC5. System: PicoKVM6. Resolution: 1080P@60fps7. Video Encoding: H2648. Video Latency: 80ms ~ 200ms9. Audio Transmission: Supported10. UEFI/BIOS Support: Yes11. Emulated USB Keyboard and Mouse: Yes12. Emulated USB Storage: Yes13. UEFI/BIOS Access: Yes14. Wake-on-LAN (WOL): Yes15. Web Terminal: Yes16. Custom Scripts: Yes17. Serial Terminal: 1 channel18. Storage Expansion: Micro SD card19. Power Control: GPIO control20. Ethernet: 100Mbps21. LCD Display: 1.54-inch 240 × 240 resolution touch screen (Only the full version includes a screen)22. Power Input: Type-C23. Dimensions:-- Full version: 48.50 × 48.50 × 29.00 (mm)-- Basic version: 44.00 x 42.00 x 23.60 (mm)
