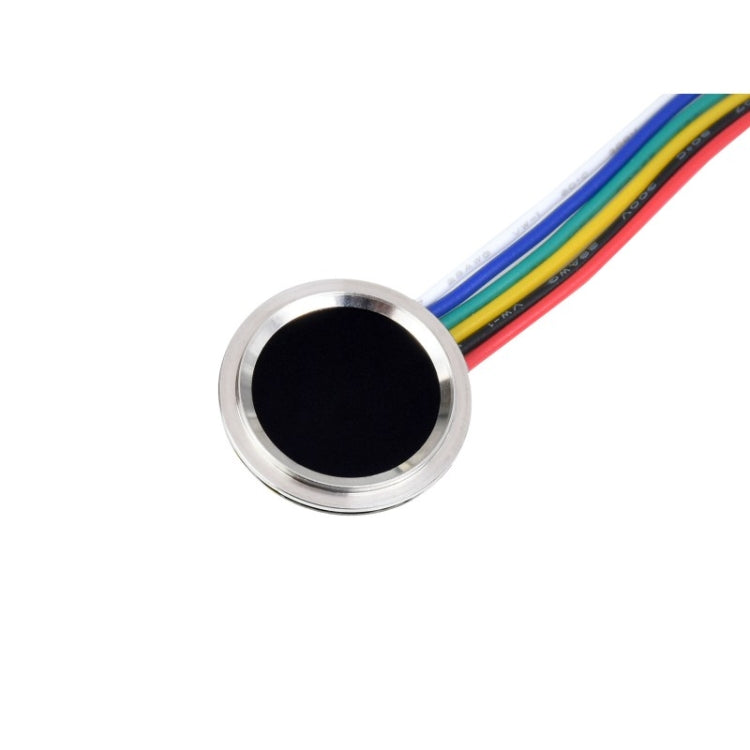

Waveshare Round UART Capacitive Fingerprint Sensor
Waveshare Round UART Capacitive Fingerprint Sensor
In stock
Couldn't load pickup availability
Shipping Information
Shipping Information
FAST DELIVERY to UK & 40+ countries.
Delivery: Typically 3-8 working days total including 0-3 days handling to the UK (estimated times for other locations shown at checkout)
Import duties and taxes may apply depending on destination. UK orders under £135 or less ship DDP with no extra charges at delivery. Orders over £135 may have import duties.
Ships from China. Your order will be processed and dispatched from the warehouse within 1–3 days if you order by 12 AM London.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered, any costs to you will be refunded.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Easy Returns
Easy Returns
Start your return online in seconds. No forms, no hassle.
Trusted by DIY & repair professionals in 40+ countries
Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.
1. Easy to use by some simple commands, you do not have to know any fingerprint technology, or the module inter structure
2. Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification
3. Capacitive sensitive detection, just touch the collecting window lightly for fast verification
4. Highly integrated hardware, processor and sensor in one small chip, suitable for small size applications
5. Narrow stainless steel rim, supports 360 degree omni-directional verification
6. Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption
7. Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi1.
Specifications
1. Sensor: Capacitive touch sensor
2. Resolution: 508 DPI
3. Image pixels: 160 x 160
4. Image greyscale: 8
5. Sensor dimension: R15.5 mm
6. Fingerprint capacity: 150
7. Matching time: Less than 500ms (1:N, and N Less than or equal 100)
8. False acceptance rate: Less than 0.001%
9. False rejection rate: Less than 0.1%
10. Operating voltage: 2.7~3.3V
11. Operating current: Less than 50mA
12. Sleep current: Less than 16uA
13. ESD: Contact discharge 8KV / aerial discharge 15KV
14. Communication port: UART
15. Baudrate: 19200 bps
16. Operating environment temperature: -20 degree C~70 degree C; Humidity: 40%RH~85%RH (no condensation)
17. Storage environment temperature: -40 degree C~85 degree C; Humidity: Less than 85%RH (no condensation)
