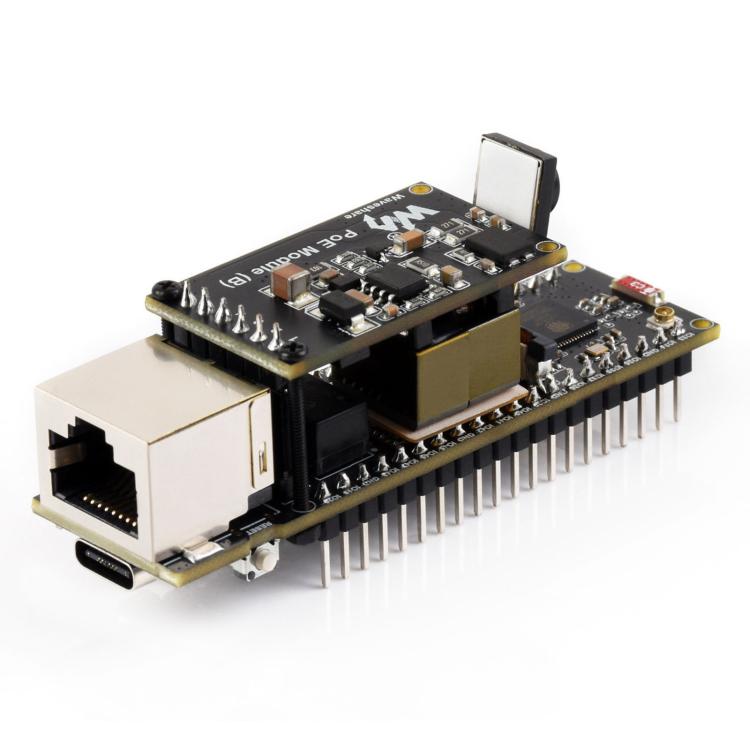

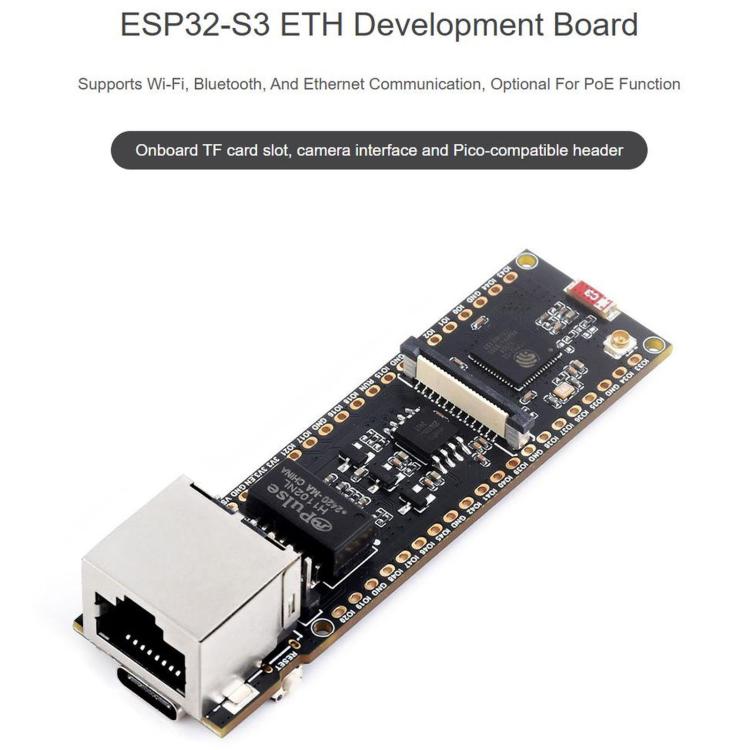

WAVESHARE ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet Port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, Spec: Mainboard+PoE Module+OV5640 Camera With Soldered Pin Header
WAVESHARE ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet Port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, Spec: Mainboard+PoE Module+OV5640 Camera With Soldered Pin Header
SKU: TBD0607007808
Prix habituel
€44,95
Prix habituel
Prix promotionnel
€44,95
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantité
Impossible de charger la disponibilité du service de retrait
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.

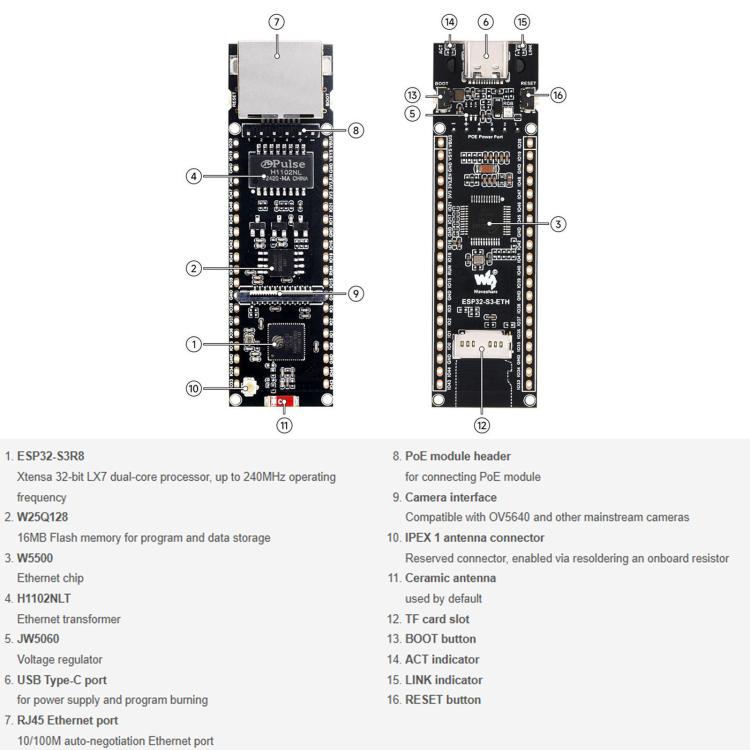

1. Based on the high-performance ESP32-S3R8 chip, featuring an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz
2. Integrates 512 KB of SRAM and 384 KB of ROM, with 8 MB of PSRAM and 16 MB of Flash

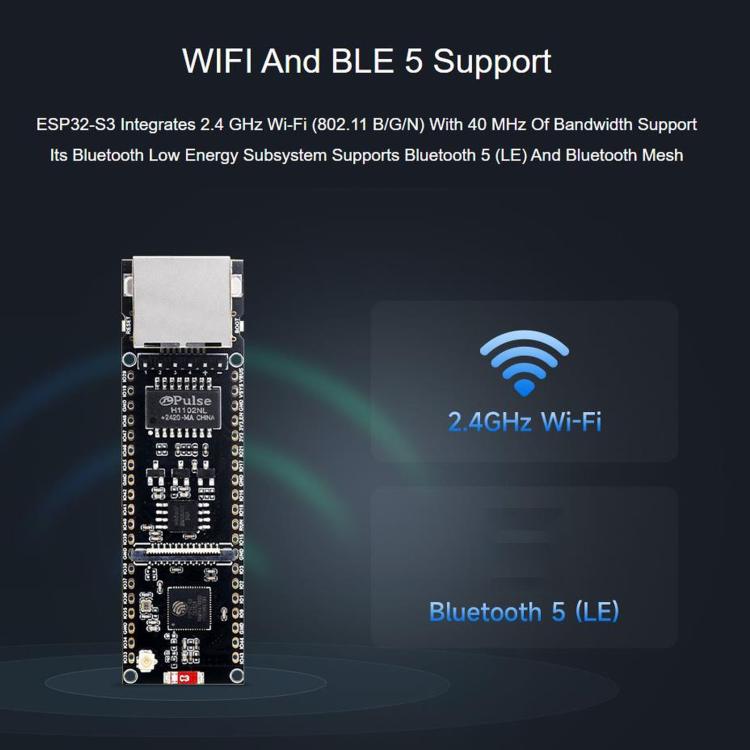

3. Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with a built-in antenna and support for external antennas
4. On-board W5500 Ethernet chip, providing 10/100Mbps network connectivity via the SPI interface

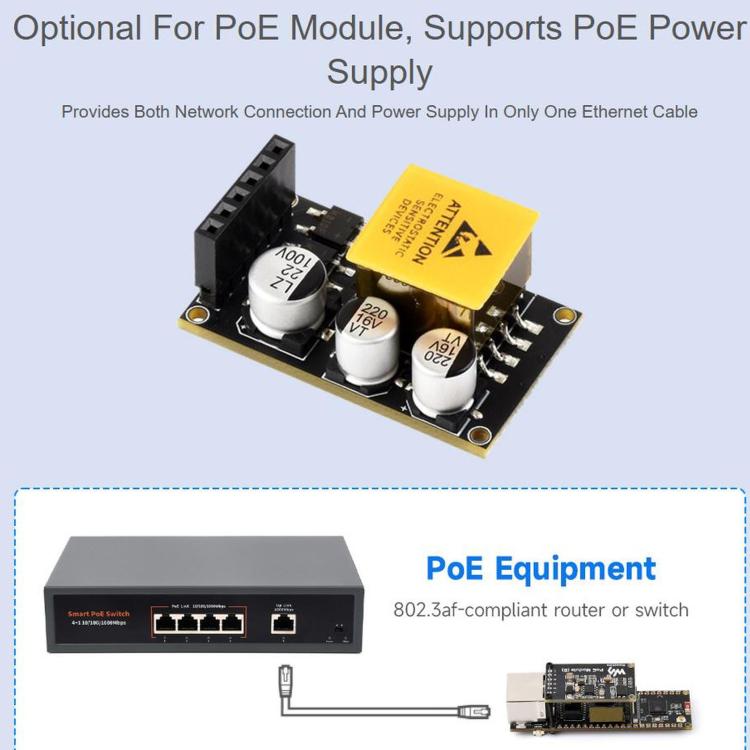

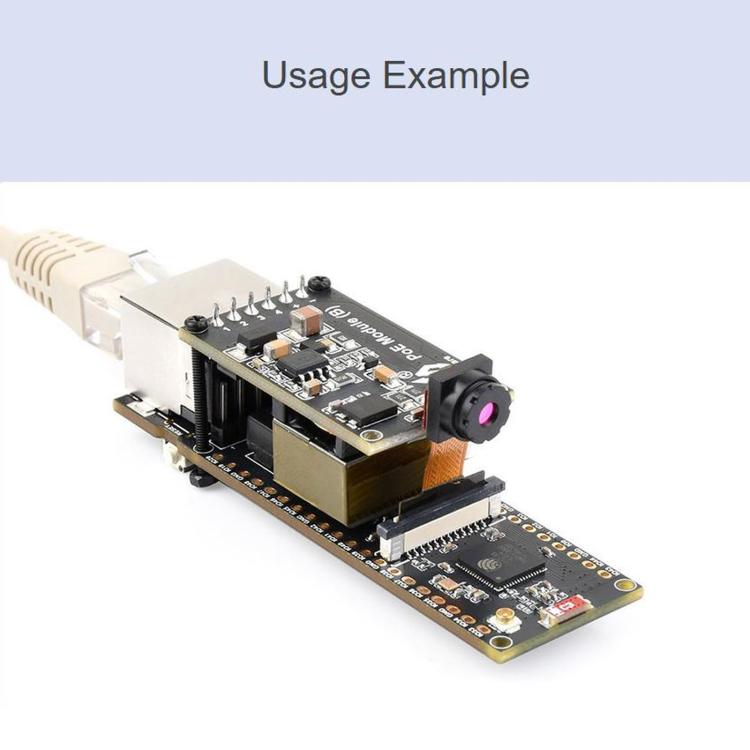

5. Supports an external PoE module for Power over Ethernet (compliant with the IEEE 802.3af standard)

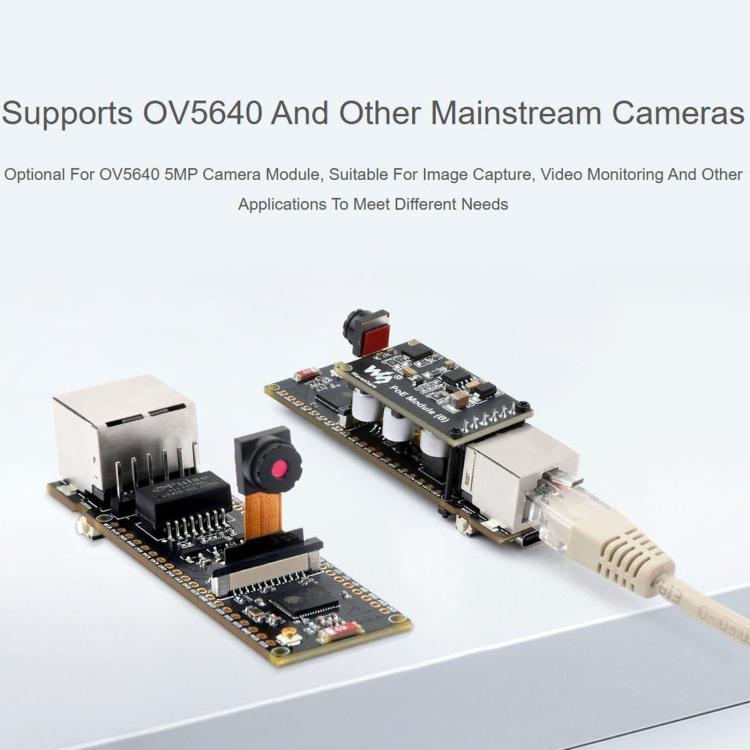

6. On-board camera interface supporting mainstream cameras such as the OV5640, suitable for image and video capture

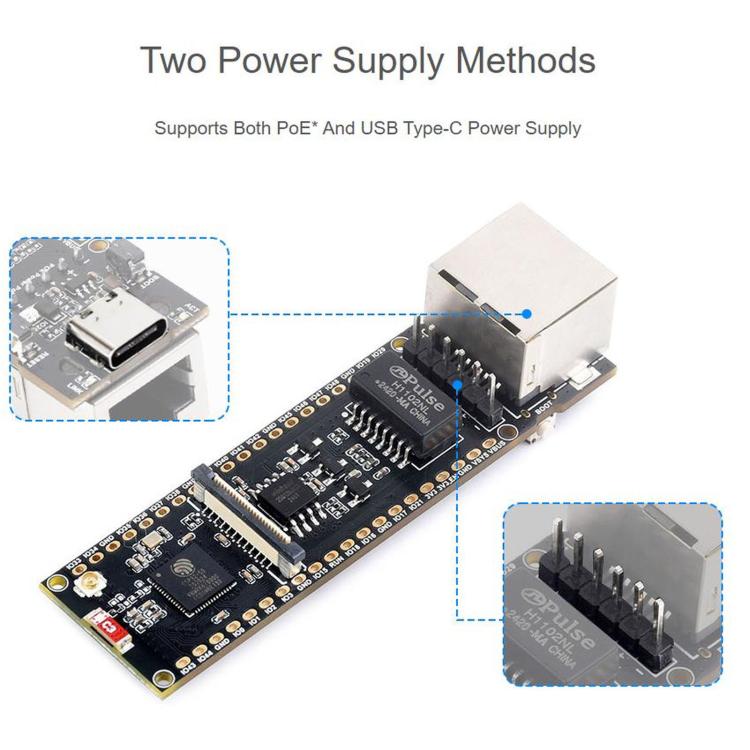

7. On-board USB Type-C port supporting power delivery, debugging, and firmware downloads for more convenient development
8. On-board Micro SD card slot supporting external SD cards for storing images and files

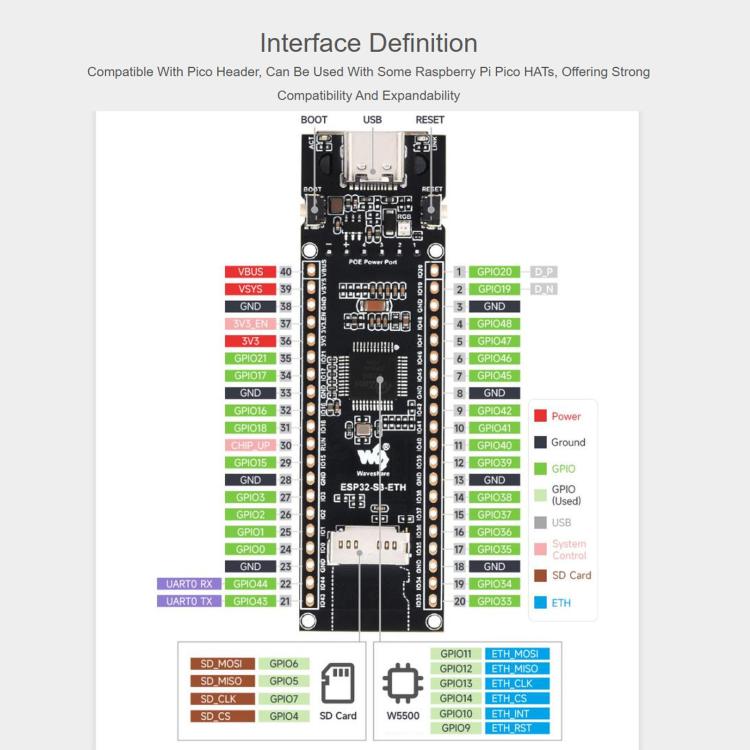

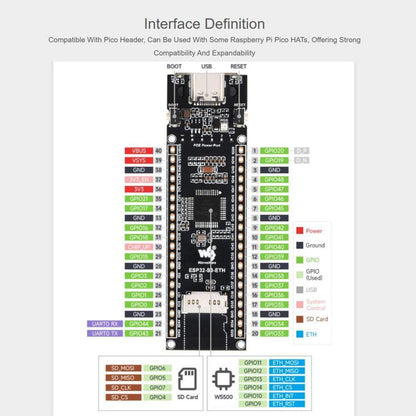

9. On-board Pico-compatible interface providing extensive peripheral expansion options with strong compatibility

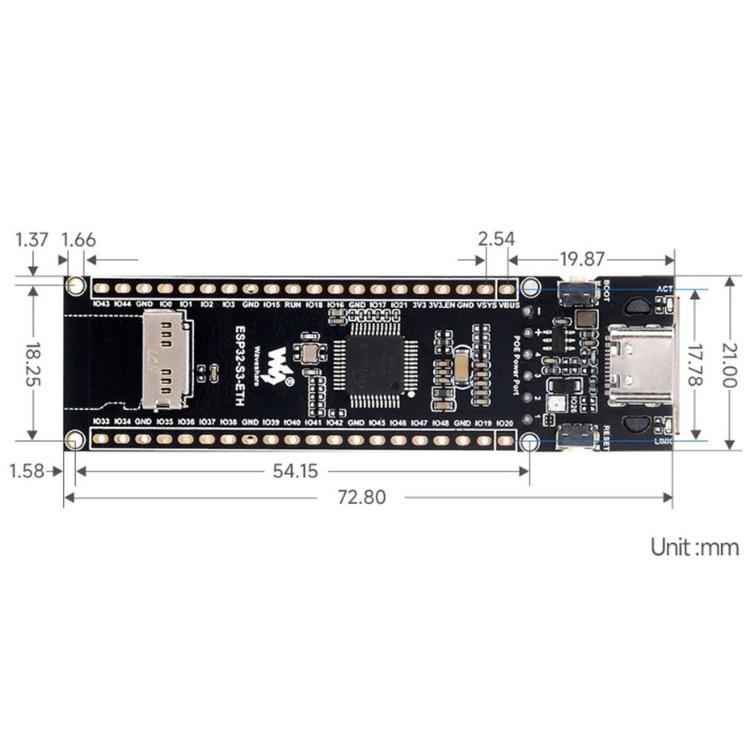

10. Dimensions: Approximately 7.28 x 2.1 cm
OV5640 Camera Specifications:
1. Sensor size: 1/4 inch
2. Focal length: 4.1 mm
3. Aperture: f/2.8
4. Field of View: 68 degrees (D) x 55 degrees (H) x 42 degrees (V)
5. Maximum Resolution: 2592 x 1944
6. Output Interface: DVP
7. Output Formats: RGB565, YUV/YCbCr422
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
