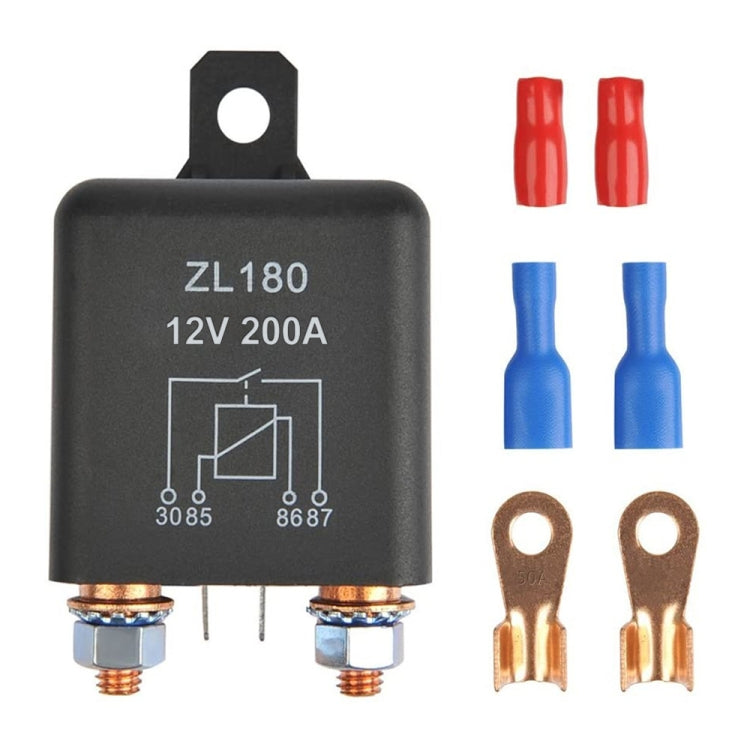

12V 200A Car Start Relay with Accessories

1. High 200A coil capacity: able to handle these high-current applications with ease, heavy duty opener or normally open (on / off) relay. With 2pin footprint + 2-port accessories, hundreds of applications include-starter toetet, e top view, trunk unlocking , Polarity change, central locking / actuator control.
2. High quality durable, firm and stable contact load: high performance perfect for universal 12V applications, vinyl install tool for building tools, industrial tools, advertising film, mobile s n install s n protector install.
3. Contact details:
- Contact material: AgSnO12
- Contact form: Normally open
- Contact Ratings: None: 200A 14 / 28VDC
- Contact resistance: 100mMax at 6V DC 1A
- Max switching current: 500A (5 ms)
- Max switching voltage: 75VDC
- Max switching power: 2000W
- Expected lifespan Electric: 100,000 operations (at 30 operations / min)
- Mechanical life: 10,000,000 operations
4. Coil Specification:
4. Coil specifications:
- Rated voltage (VDC): 12V
- Coil resistance (4,8W): 30
- Operate voltage max(VDC): 6.0 ~ 8.0
- Release voltage (VDC): 1.2 ~ 3.6
- Overload voltage max (VDC): 15.6
5. Characteristics:
- Temperature range: -30 ~ + 80 Celsius
- Vibration resistance: 10 ~ 55Hz, 1.5mm
- Impact resistance: operation extreme: 10g, damage limits: 100g
- Humidity: 40% ~ 85%
- Insulation resistance: 100 mOhm min at 500 VDC
- Dielectric strength between open contacts 500VAC (for one minute / s)
- Between contact and coil: 750VAC (for one minute / s)
- Operating time: 7ms
- Release time: 5ms
- Material: plastic
