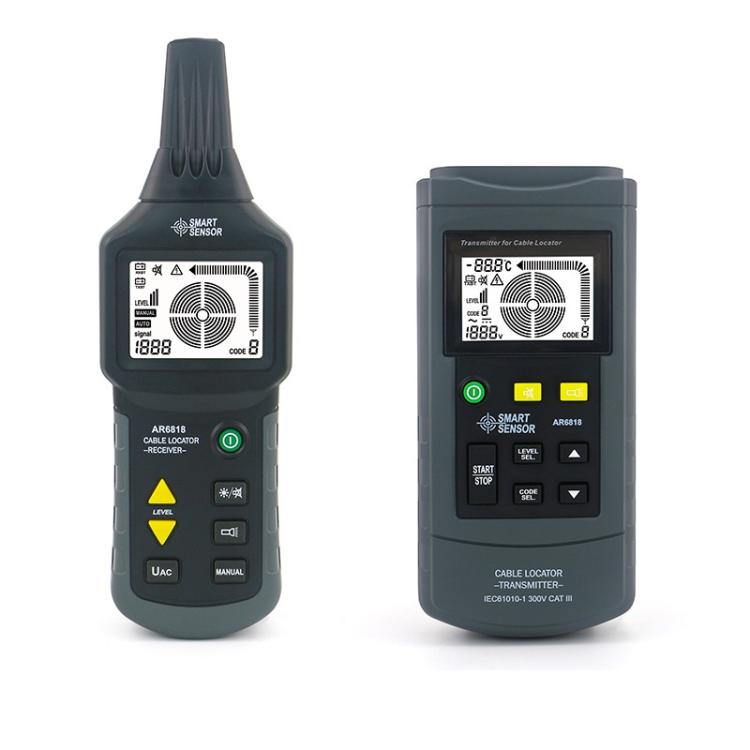

SMART SENSOR Pipeline Hidden Wire Fault Detection Underground Cable Detector

1. Scientifically designed function buttons for easy operation.
2. Streamlined, ergonomically designed body for a comfortable, non-slip grip.
3. The receiver battery compartment accepts six 1.5V AAA batteries; the transmitter accepts 9V batteries (not included).
4. The transmitter has a stand for convenient measurement.
5. Locate fuses/sockets, locate and trace wires in electrical installations, branch outlets, and switch boxes.
6. The receiver LCD has a backlight for easy use in dimly lit environments and supports flashlight illumination.
7. Locate open/short circuits in electric floor heating systems and accurately detect the path of underground water and gas pipelines.

5.1 Transmitter technical parameters:
1. Output signal: 125 kHz
2. External voltage detection range: DC 12-400 V; AC 12-400 V (50-60 Hz):
3. Temperature Measurement Specifications: 2.5°C
4. Display: LCD with function display and bar graph
5. External voltage dielectric strength: 400 V AC/DC
6. Overvoltage category: CAT III 300 V
7. Pollution degree: 2
8. Power supply: 1 x 9V, IEC 6LR61
9. Current (MIN): approximately 31 mA
10. Current (MAX): approximately 115 mA
11. Fuse: F0.5 A 1000 V, 6.3 x 32 mm
12. Altitude (MAX): 2000 m
13. Dimensions: 190 x 89 x 4 mm
14. Weight: approximately 360 g

5.2 Receiver specifications:
1. Tracing depth: depends on the medium and specific application
2. Cable locating mode (monopolar application): approximately 0 to 2 m
3. Cable locating mode (bipolar application): approximately 0 to 0.5 m
4. Cable locating mode (single loop): Up to 2.5 m
5. Grid voltage identification: approximately 0 to 0.4 m
6. Display: LCD with function display and bar graph
7. Power supply: 6 x 1.5 V AAA, IEC LR03
8. Current consumption (minimum): approximately 32 mA
9. Current consumption (maximum): approximately 89 mA
10. Altitude (maximum): 2000 m
11. Dimensions: 24.5 x 78 x 38.5 mm
12. Weight: approximately 280 g
