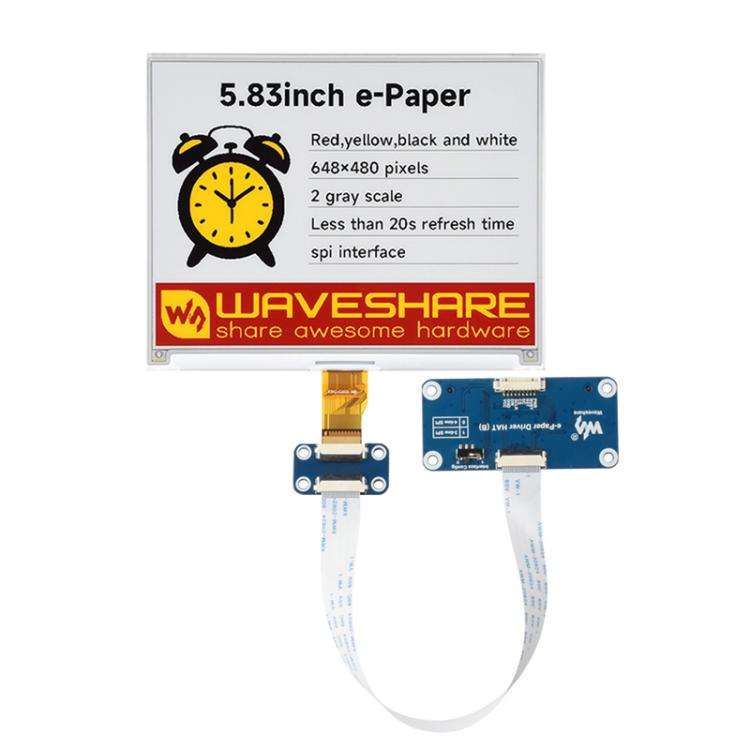

WAVESHARE 5.83 Inch E-Paper 4 Color E-Ink Display Module, Spec: With Driver HAT

1. Operating voltage:
- Bare screen version: 3.3V
- Module version: 3.3V/5V
2. Communication interface: 3-wire SPI, 4-wire SPI
3. Dot pitch: 0.1833 x 0.1833mm
4. Resolution: 648 x 480 pixels
5. Display color: red, yellow, black, white
6. Gray scale level: 2
7. Fast refresh: 12s
8. Global refresh: 20s
9. Refresh power consumption: less than 100mW
10. Sleep current: less than 0.01uA (close to 0)
11. Viewing angle: more than 170 degrees
12. Display size: about 118.78 x 88.22 mm
13. External size:
- Bare screen: about 125.4 x 99.5 x 1.2mm
- Module: about 30.5 x 65mm

Features:
1. Based on Raspberry Pi 40PIN interface design, suitable for Raspberry Pi series motherboards, Jetson Nano
2. Reserved SPI control interface, can be connected to Raspberry Pi / Jetson Nano / ESP32 / Arduino / STM32 and other motherboards
3. On-board level shifter chip, compatible with 3.3V and 5V level interface
4. Suitable for shopping mall price tags, asset and equipment tags, electronic shelf tags and conference name tags, etc.
