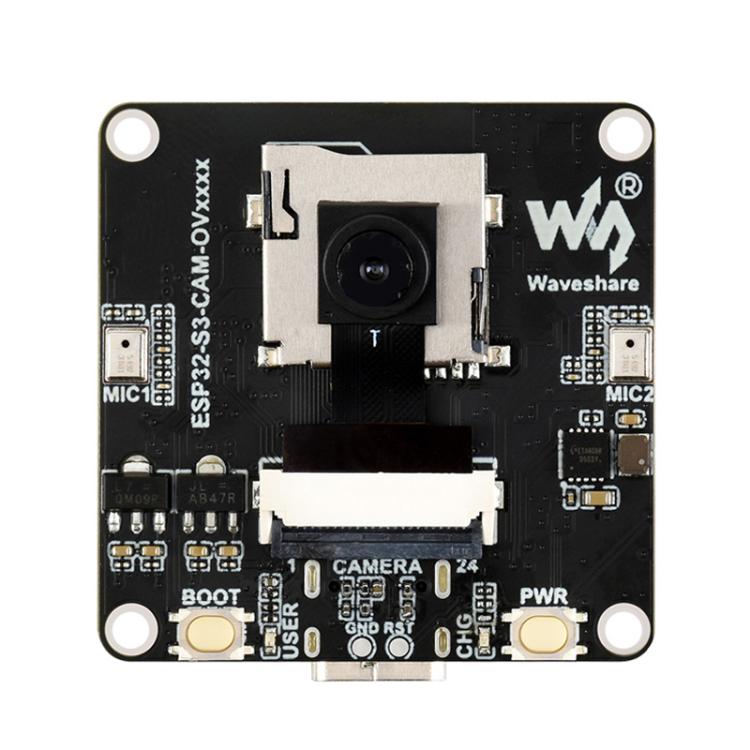

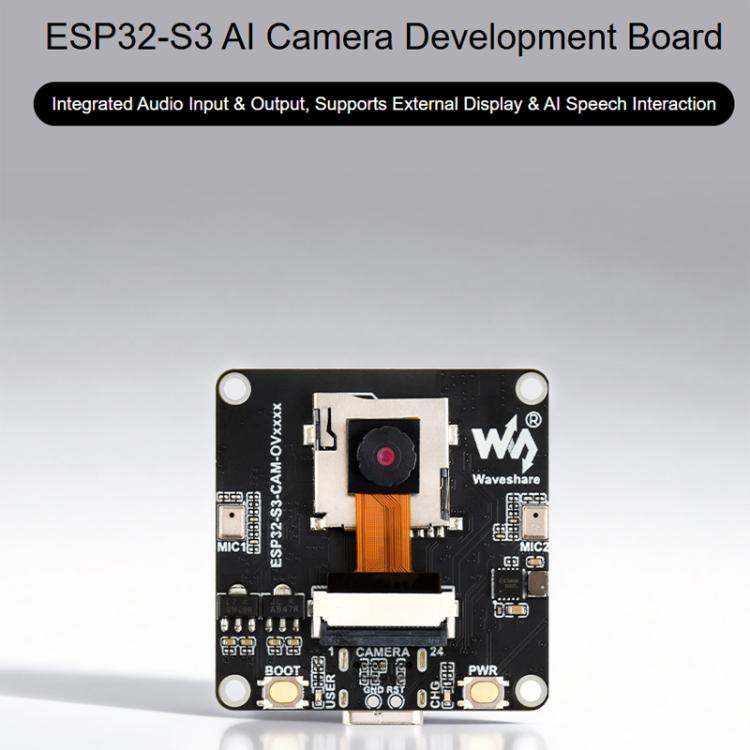

Waveshare ESP32-S3 AIoT Camera Development Board With GC2145 Camera

1. This product is an AI development board based on ESP32-S3, integrating camera interface (DVP), SPI/QSPI display interface, and audio capture and playback functions, balancing low cost, high performance, and low power consumption to meet diverse smart terminal development needs. It supports integration with online AI platforms such as Xiaozhi/Doubao/DeepSeek, enabling human-computer interaction functions like voice dialogue and Q&A recognition. It also provides an Edge Impulse object detection example supporting real-time and multi-object recognition, suitable for rapid development of AI voice interaction, edge vision detection, HMI screen applications, and smart camera products.
2. Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a maximum main frequency of 240MHz.
3. Built-in 512KB SRAM, 384KB ROM, onboard 8MB PSRAM and 16MB Flash.
4. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with excellent RF performance.
5. Dual microphone array supporting noise reduction and echo cancellation for high-quality voice interaction.

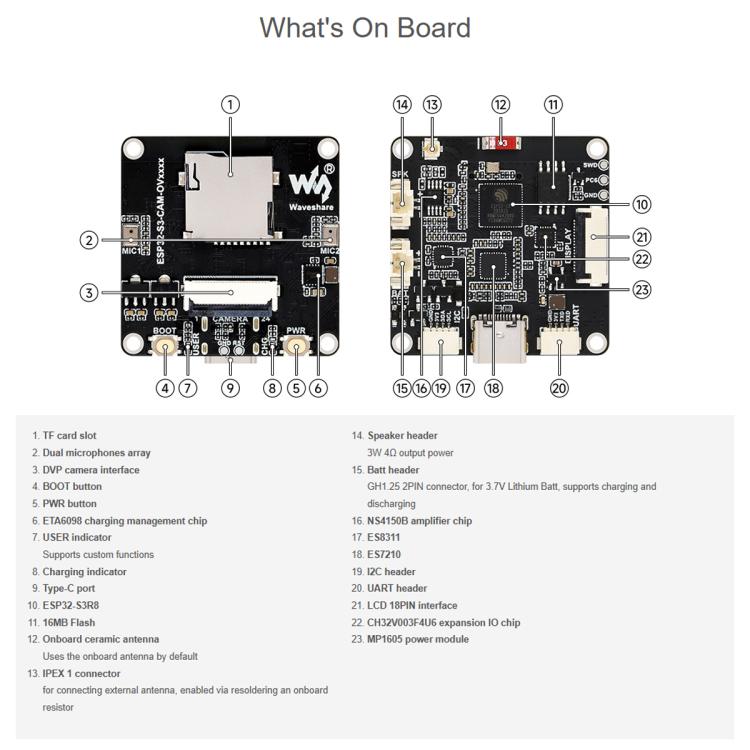

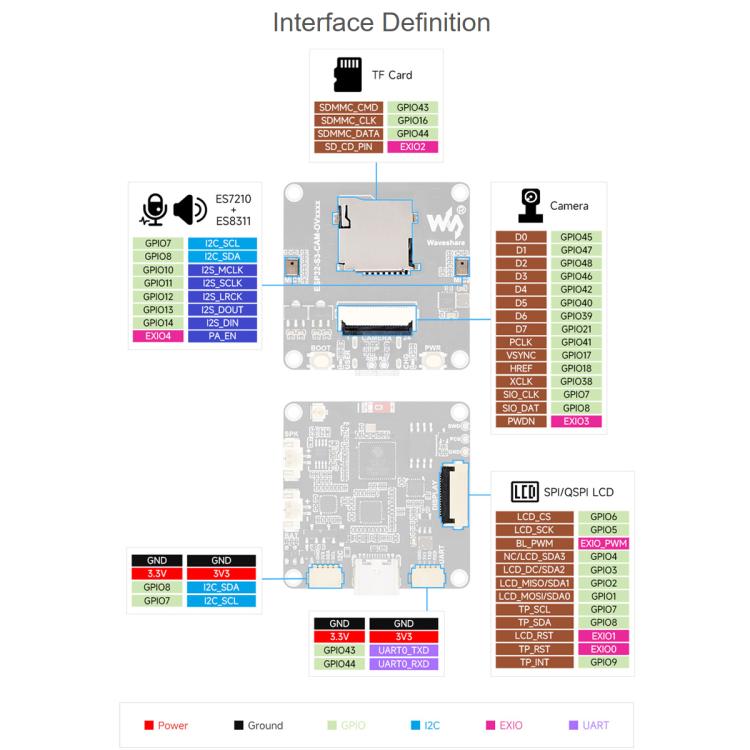

6. Expansion and interfaces:

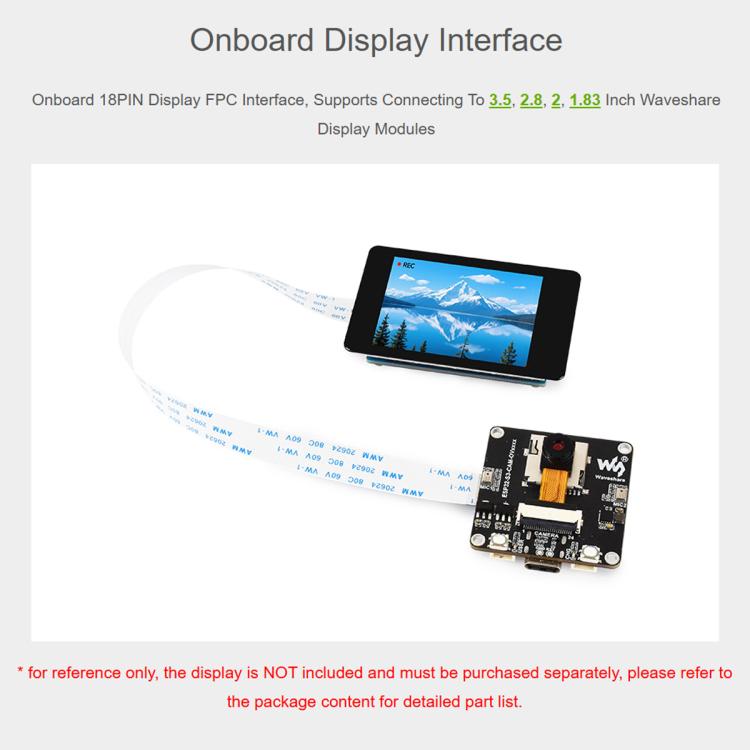

--SPI/QSPI LCD display interface

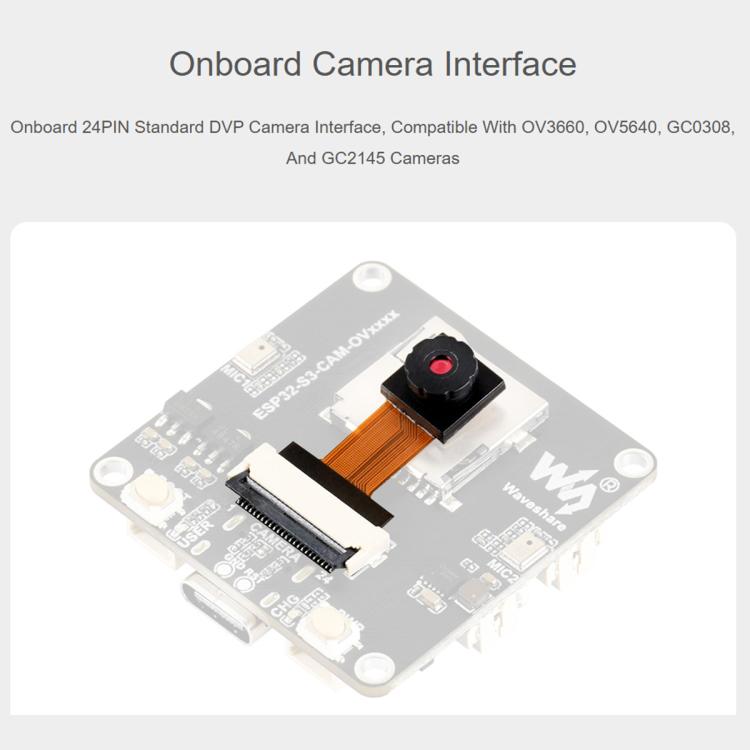

--24PIN DVP camera interface
--USB, I2C, and UART interfaces accessible.
7. Onboard lithium battery charging circuit supports 3.7V lithium battery power supply.
8. Reserved 2 user-defined buttons.
9. The overall solution is highly integrated with rich interfaces, suitable for rapid prototyping and application deployment of AIoT smart terminal products.
