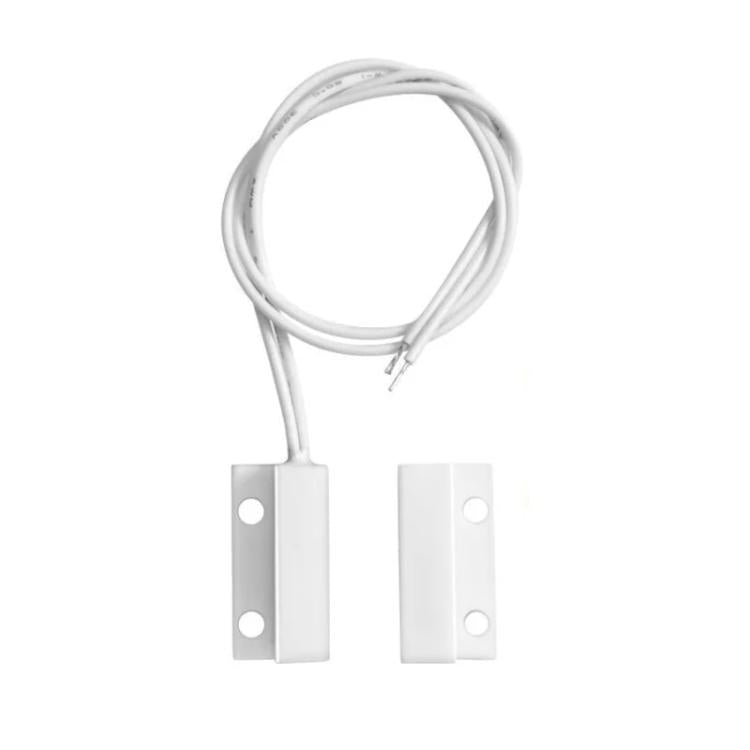

Embedded NC Model Door Magnetic Sensor Switch

Embedded NC Model Door Magnetic Sensor Switch

SKU: TBD06056687
Regular price €13,95
Regular price Sale price €13,95
Sale Sold out
In Stock
CHN This item is shipped from China.

Processed in 0–3 days

Quantity

Product Details


1. Material: ABS imported reed switch; 1007#/26#360mmUL wire
2. Action distance: 18mm
3. Switch withstand voltage: 100VDC
4. Load current: 300mA
5. Switch output: normally open (the normally open door magnetic switch means that the switch signal is disconnected when the switch and the magnet are close together, and the switch signal is closed when the switch and the magnet are separated, commonly known as the passage)
6. Surface-mounted, suitable for installation on non-iron doors or windows
7. If the door magnetic is to be powered, the voltage is controlled at DC0V-24V, the power supply current cannot exceed 1A, and the load current is 120mA
8. Size: 27x14x8mm
9. Warm reminder: the door magnetic is not equipped with screws when it leaves the factory
