MaAnt RC-3 3D Infrared Thermal Imager Short Circuit Thermometer

• Product type: Others
• Brand: MaAnt
• Compatibility: Short Circuit Detection
• Material: Durable
• Key feature: 3D thermal field distribution
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Repair Tools

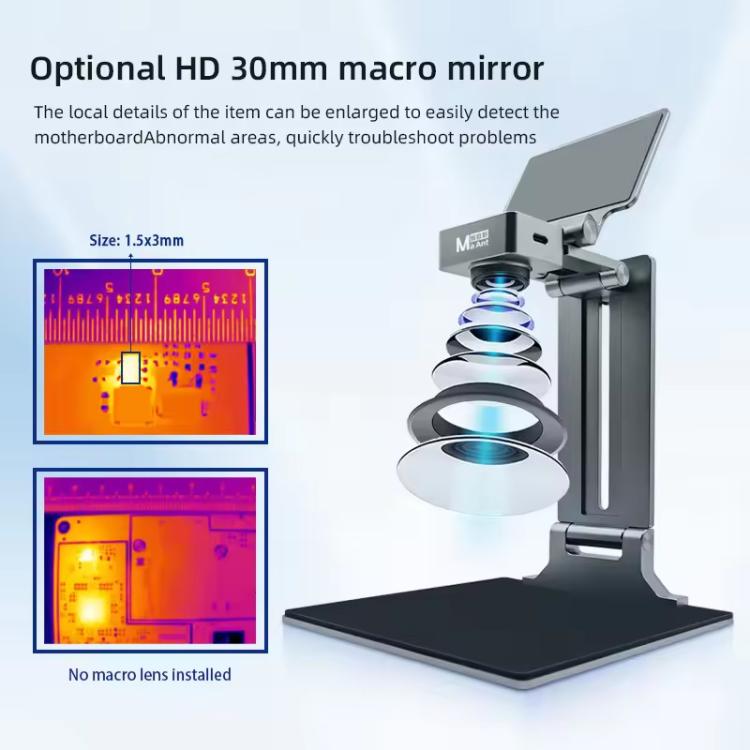

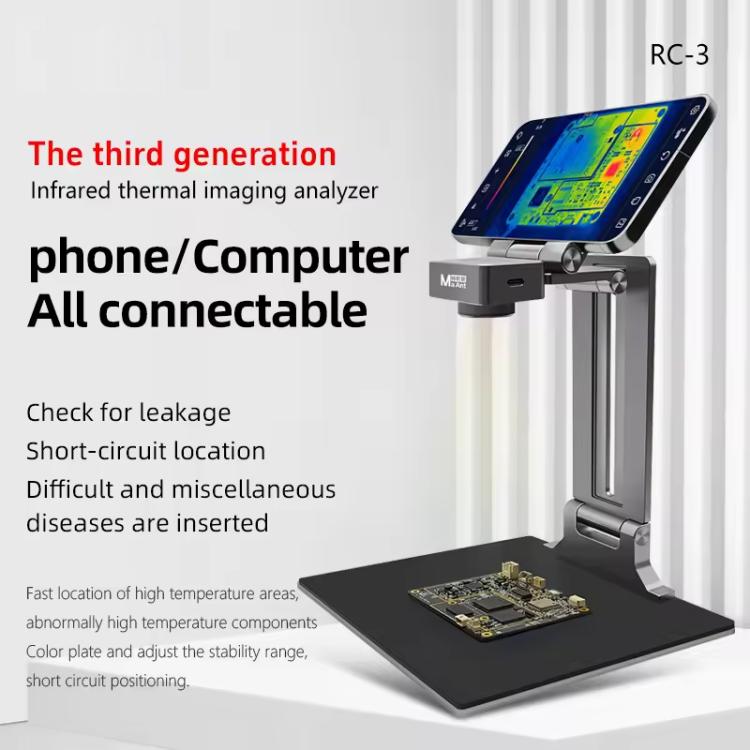

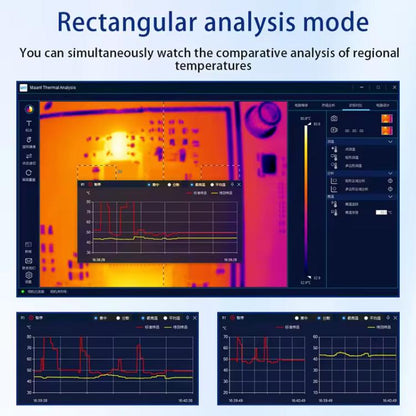

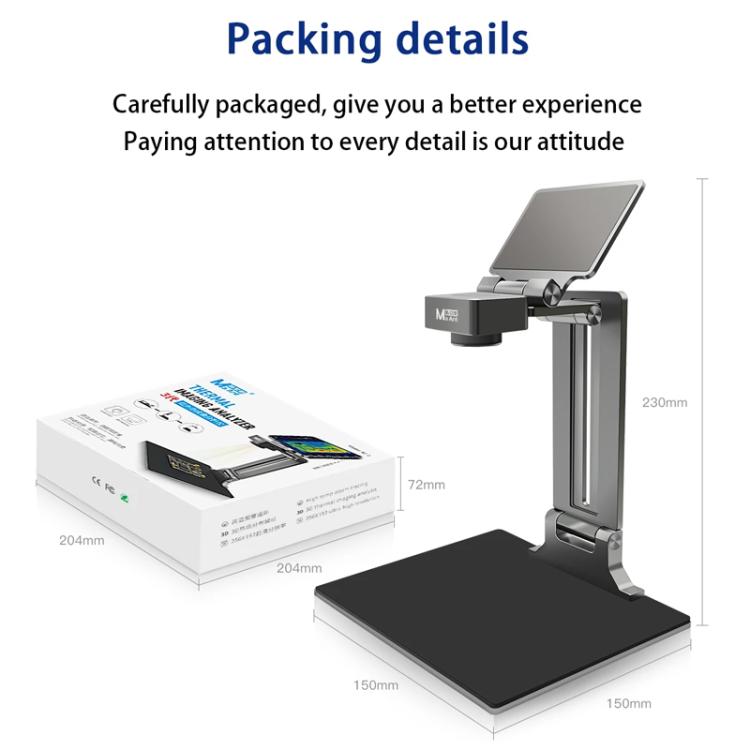

Specification:1. Resolution: 256 x 1922. Frame rate: 25Hz3. Lens Angle: 56 x 42 degrees4. Temperature measurement distance: 3mm-15mm5. Device port: USB Type-C6. Input voltage: DC 5V7. Temperature range: -15-600 degrees Celsius8. Storage temperature: -20-60 degrees Celsius9. Operating temperature: 0-50 degrees Celsius10. Net weight: 591g11. Product size: 15 x 15 x 23cmFeatures:1. Ultra clear detail, panoramic view, the third generation infrared thermal imaging analyzer, check for leakage, short-circuit location, complicated and complicated disease2. A quick check of leakage, open circuit positioning, difficult speed rower, fast location of high-temperature areas, abnormally, high-temperature components, color plate and adjust the stability range, short circuit positioning3. 3D thermal field distribution, visual display of temperature changes, multi-dimensional observation product heat dissipation design, mostly used in construction, industry, electrons, and so on4. Optional HD 30mm macro mirror, the local details of the item can be enlarged to easily detect the motherboard, abnormal areas, quickly troubleshoot problems5. Professional repair software to solve problems quickly, multiple palette modes, and different swatches can be used according to different scenes6. Double board contrast mode, on both sides of the dividing line, put the items that need to be observed and compared and carry out comparative analysis under the same conditions7. In rectangular analysis mode, you can simultaneously watch the comparative analysis of regional temperatures8. Temperature range: Minimum temperature: -15 degrees Celsius; Maximum temperature: 600 degrees Celsius9. High-temperature abnormal alarm, when the temperature alarm switch is turned on and the set the temperature threshold number is exceeded, a buzzer will sound an alert and the frame will flash with a red border10. Multi-platform applications are powered on with one key, after opening the software, connect the infrared thermal imaging to the computer via a USB cable11. Press the top power button, and the software interface will appear infrared effect, can support Win10 and above systems and mobile phone Android terminal12. Adjustable lens height, the position can be quickly adjusted according to the needs of the item, observe objects in detail from zero distance
