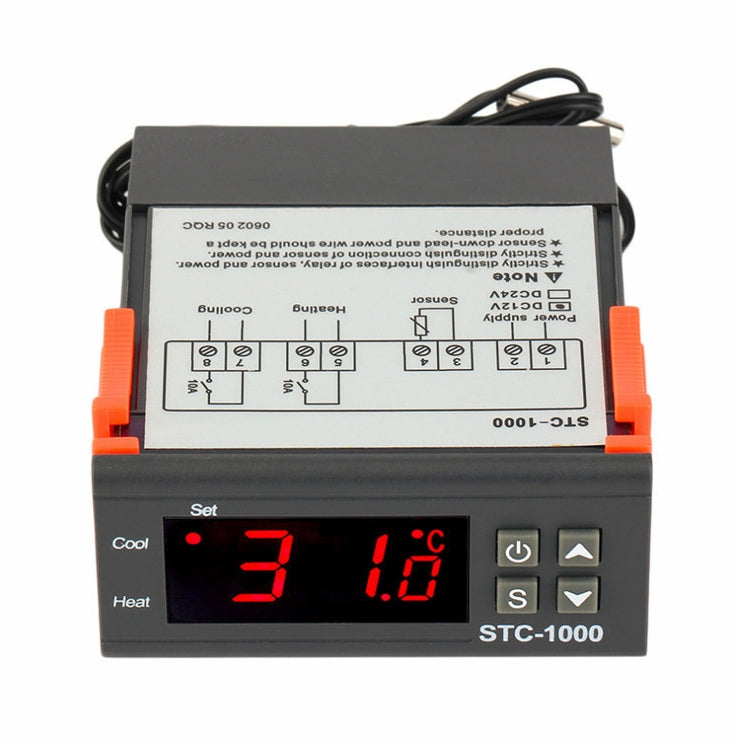

1. Shell material: gray ABS flame-retardant plastic shell 2. Refrigeration control output delay protection 3. Switch the mode between cooling and heating 4. Resolution: 0.1, accuracy: ±1 degrees Celsius 5. Measuring and controlling temperature range: -50～+110 degrees Celsius 6. After turning off the power, all parameter settings can be saved 7. Control the temperature by setting the temperature setting value and the difference value 8. Alarm when the temperature exceeds the temperature limit or the sensor is wrong 9. Sensor h type: imported NTC sensor, cable length 1 meter 10. Please connect the power supply according to the parameters and wiring diagram, and connect the cooling or heating equipment to the output terminal 11. Relay output contact capacity: heating: 10A/240VAC, cooling: 10A/240VCA 12. The OUT indicator on the panel: flashing indicates the delay of the cooling or heating start, and the constant light indicates the output 13. Long press set, 5 seconds to enter the internal parameter setting, press up and down to switch P0...P8, press Rst to confirm and return 14. Enter the internal settings to select heating (enter P0 to select H) or cooling (enter P0 to select C) mode according to needs 15. It can be used in household freezers, water tanks, refrigerators, industrial chillers, steamers, industrial equipment and other temperature control applications 16. Digital tube: display LLL for sensor open circuit; display HHH for exceeding the measuring range and the thermostat will be forced to power off; display --- high temperature alarm 17. P0 cooling and heating mode, P1 hysteresis setting, P2 setting range: setting temperature does not exceed this value, P3 setting range: setting temperature not lower than this value, P4 temperature correction, P5 delay Start-up time unit: minutes, P6 high temperature alarm, P7 data lock function, turn on the data lock, P8 restores factory settings 18. Product size: 75x34.5x85mm 19. Net weight: 120g
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
