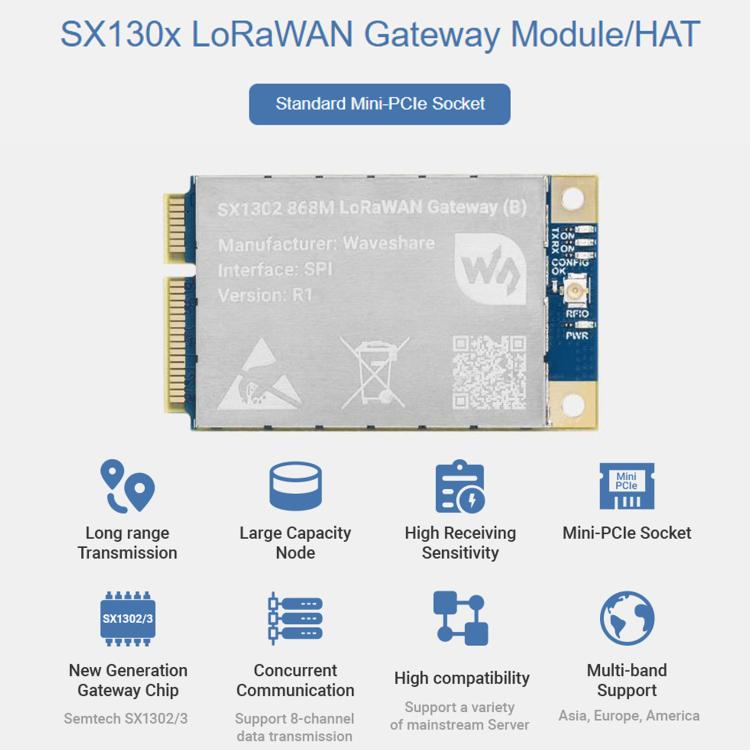

Waveshare For Raspberry Pi LoRaWAN Gateway Module Standard Mini-PCIe Socket(SX1303 915M With Expansion Board)

Gateway module features:
1. On-board Semtech SX1302/3 baseband processor and SX1250 RF front-end chipset
2. On-board PA and LNA, with +26 dBm transmit power and -141 dBm receive sensitivity

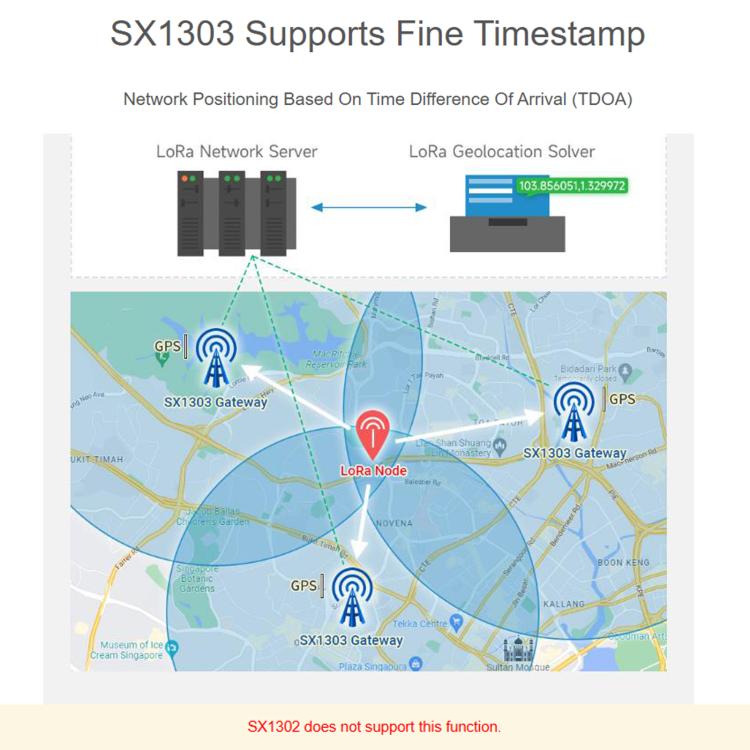

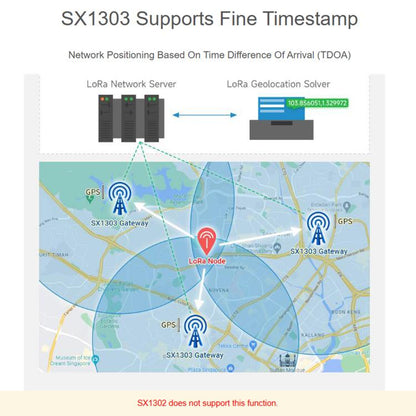

3. The SX1303 supports fine-grained timestamping, enabling network positioning based on Time Difference of Arrival (TDOA)

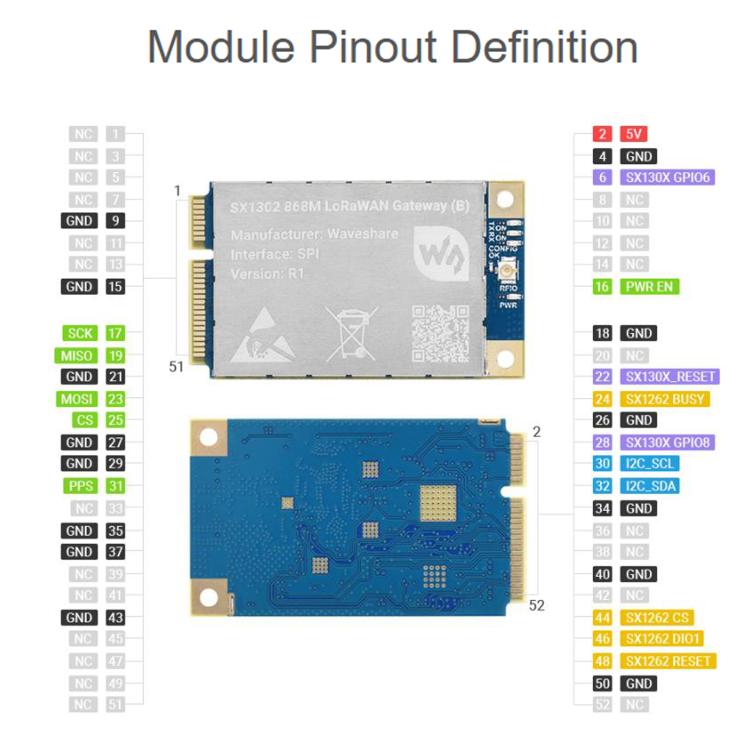

4. Mini-PCIe form factor with 52-pin header, facilitating integration into various embedded systems
5. Four onboard LED indicators for easy monitoring of module operating status

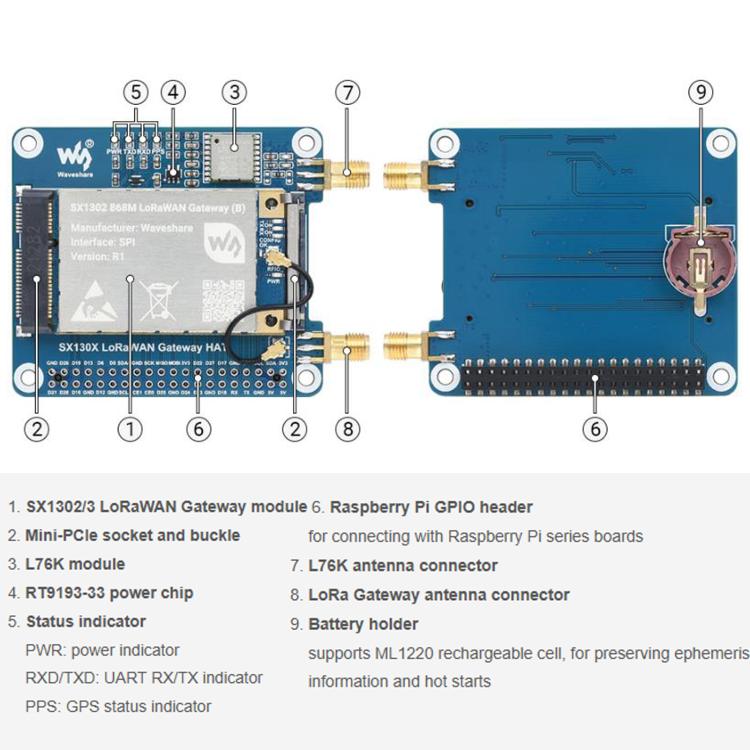

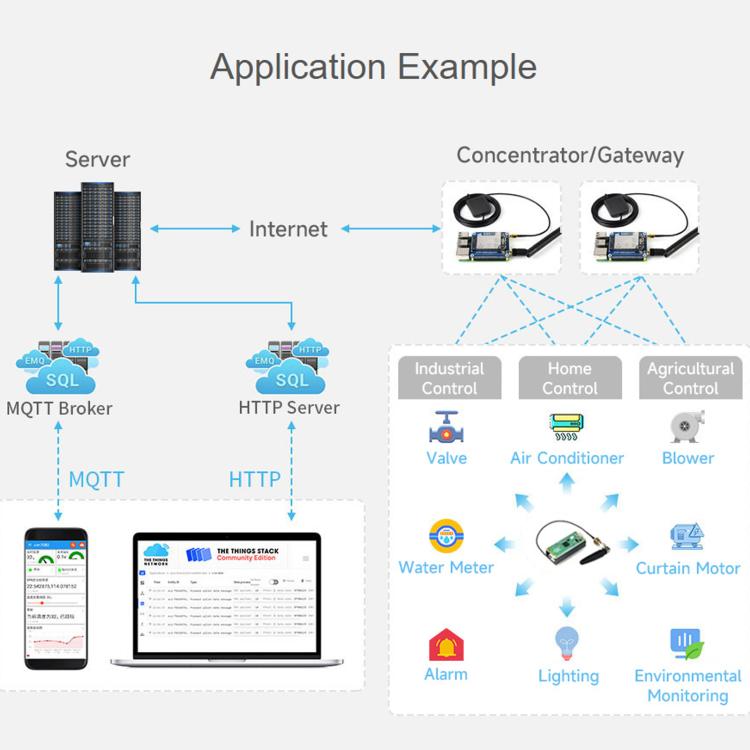

Expansion board features:

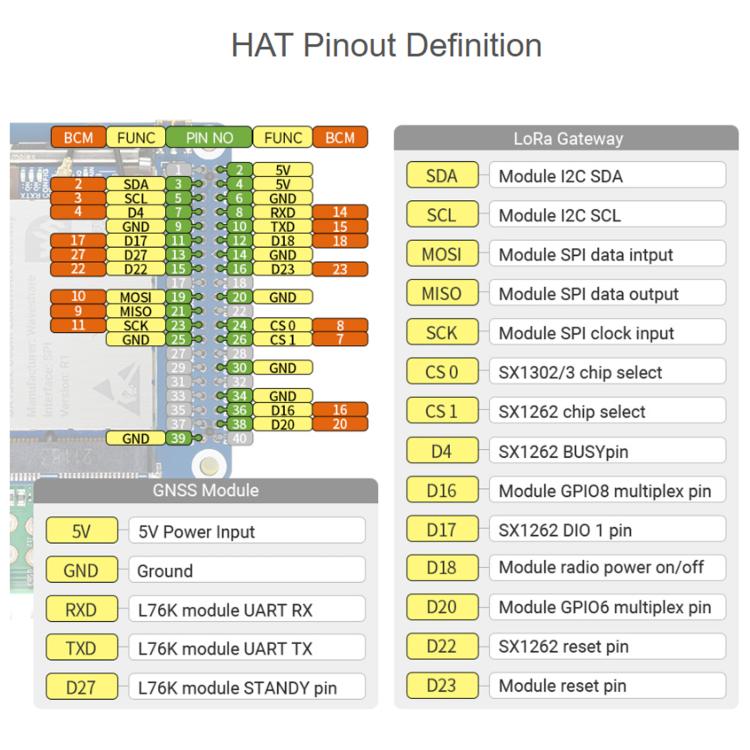

1. Based on the Raspberry Pi 40-pin GPIO interface, compatible with Raspberry Pi series motherboards
2. On-board L76K module supporting GPS and Beidou, providing precise clock and positioning coordinates for the gateway module

Module specifications

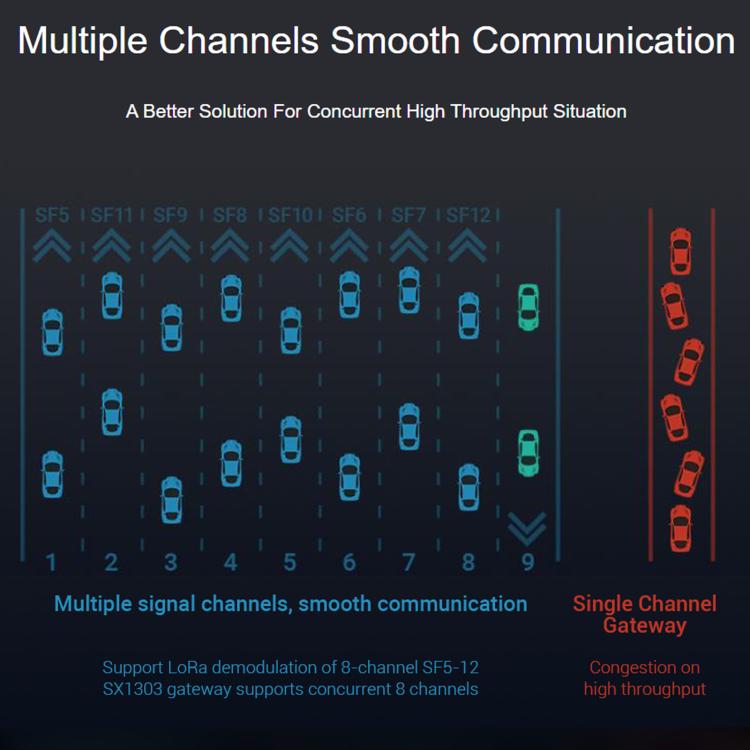

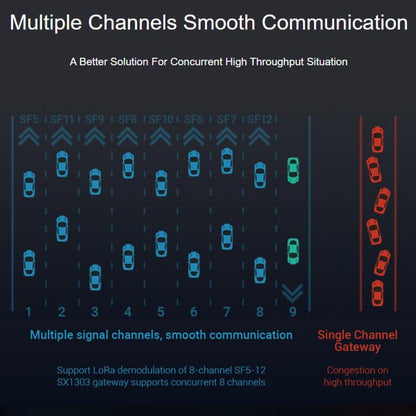

1. Baseband chip: SX1302: 868 MHz, 915 MHz; SX1303: 868 MHz, 915 MHz
2. Frequency bands: 868 MHz: EU868, IN865, RU864; 915 MHz: US915, AU915, KR920
3. Supply voltage: 5V

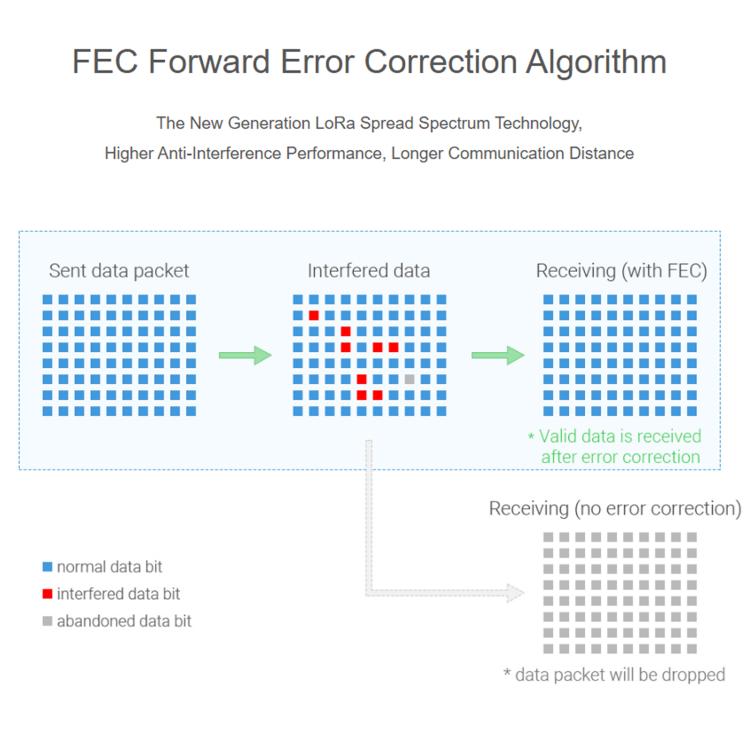

4. Modulation: LoRa/(G)FSK
5. Transmit power: +26 dBm at 5V
6. Receive sensitivity: -141 dBm at 125 kHz/SF12; -121 dBm at 125 kHz/SF5
7. Communication interfaces: SPI, I2C
8. Form factor: Mini-PCIe
9. Operating temperature: -40–85°C
10. Total power consumption: SX1302: Transmit: 454mA at 5V; Receive: 42mA at 5V; Sleep: 11mA at 5V; SX1303: Transmit: 427mA at 5V; Receive: 40mA at 5V; Sleep: 8mA at 5V

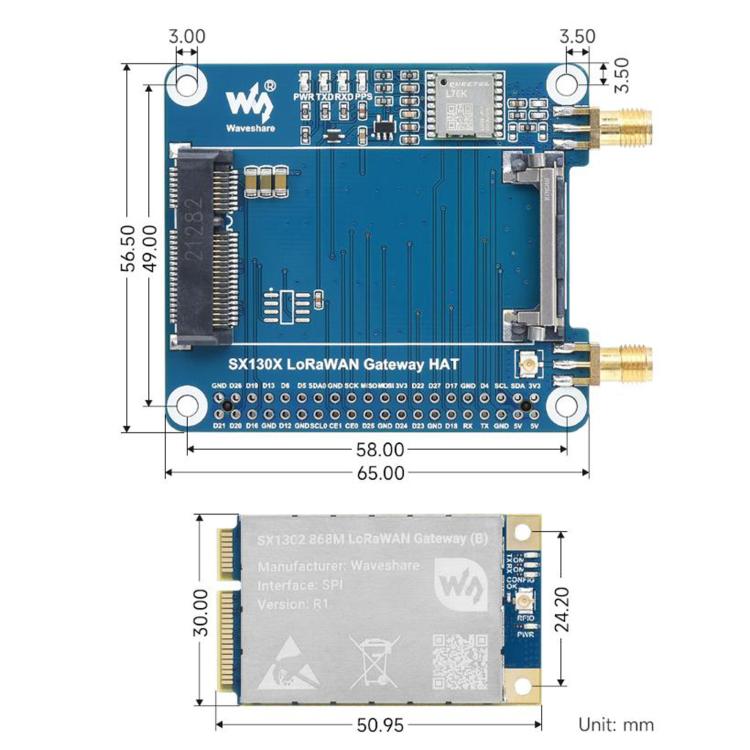

11. Size: about 5.095 x 3 cm

Package contents (Without expansion board):
- SX130x module x 1
- IPEX-to-SMA adapter (Male-to-Female, about 17 cm) x 1
- 868 MHz/915 MHz rubber rod antenna x 1

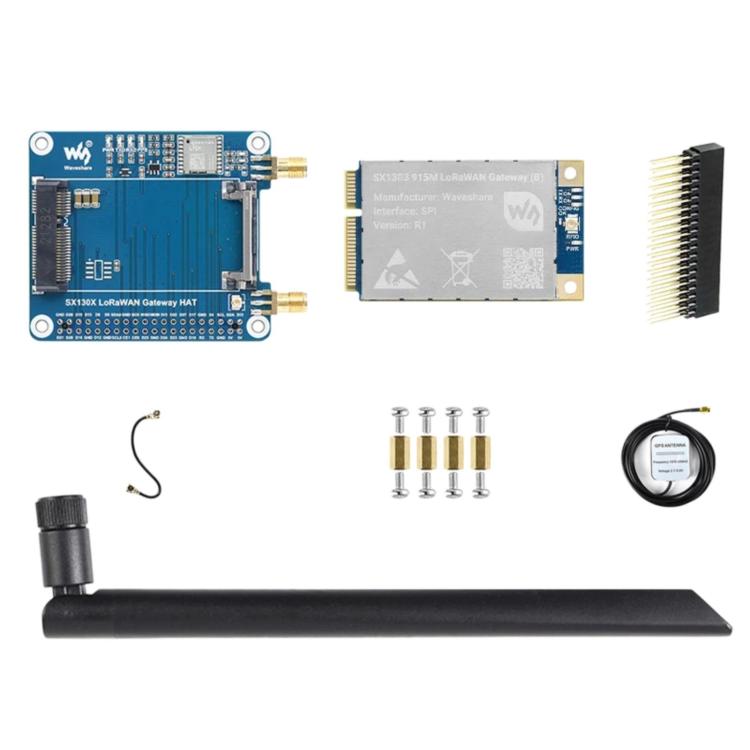

Package contents (With expansion board):
- SX130x module x 1
- 868 MHz/915 MHz rubber rod antenna x 1
- Expansion board x 1
- GPS antenna x 1
- 2x20-pin header x 1
- IPEX-1 (black) dual-ended cable x 1
- Screw pack x 1
