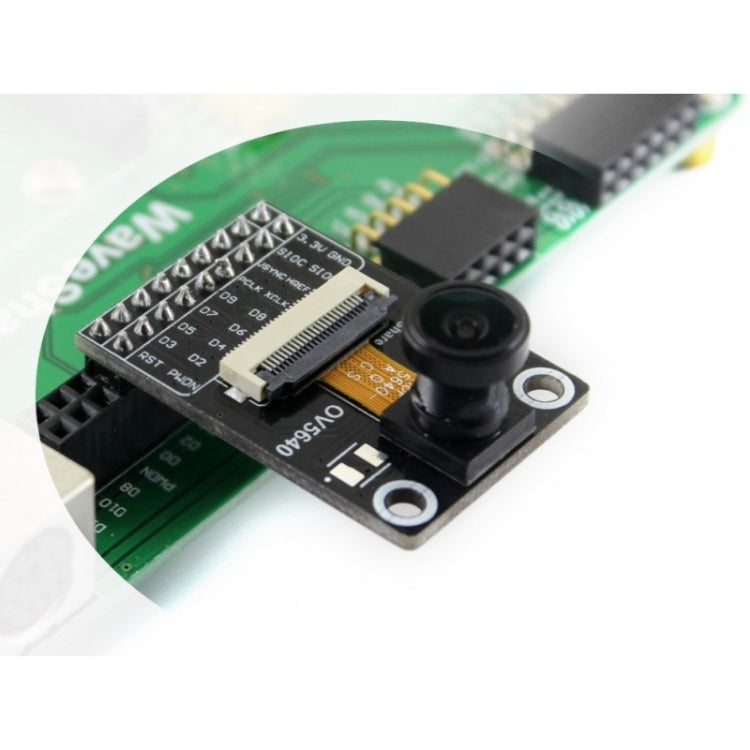

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
SKU: ZY15900084
Regular price
€30,95
Regular price
Sale price
€30,95
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Ships in 0–3 days
Quantity
Couldn't load pickup availability
1-Year Warranty
What's covered?
If your item develops a hardware fault or manufacturing defect, we've got you covered.
How we help
Our tech team is ready to test, repair, or replace your item to get you sorted as quickly as possible.
30-day returns
Fast refunds
Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage
Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
4. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.5
- Focal Length: 2.0mm
- Diagonal: 170 degree (fisheye)
5. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
6. Operating Voltage: 3.3V
7. Control Interface: SCCB (I2C compatible)
8. Data Interface: DVP 8-bit
9. Dimension: 35.70mm x 23.90mm
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
4. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.5
- Focal Length: 2.0mm
- Diagonal: 170 degree (fisheye)
5. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
6. Operating Voltage: 3.3V
7. Control Interface: SCCB (I2C compatible)
8. Data Interface: DVP 8-bit
9. Dimension: 35.70mm x 23.90mm
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
