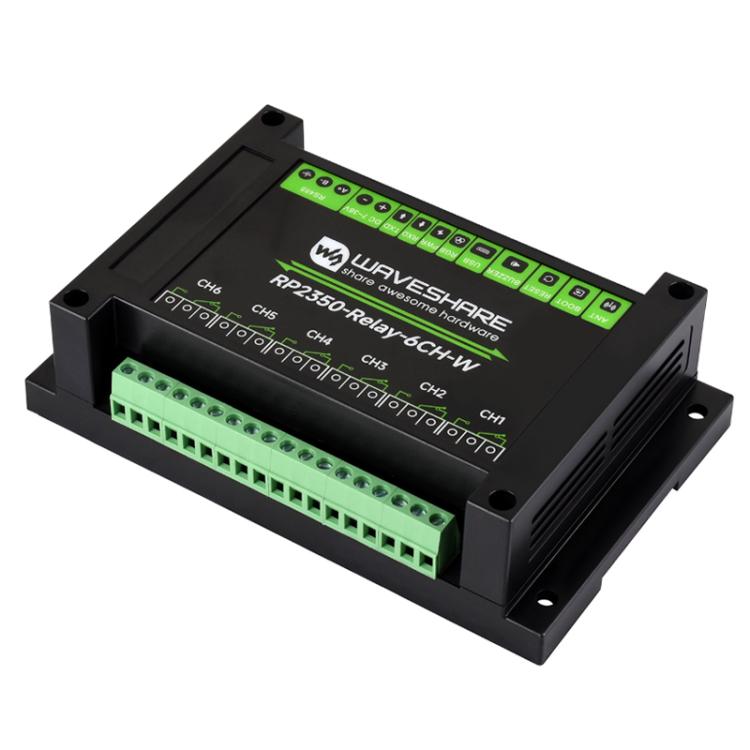

WAVESHARE RP2350 Industrial Control Board 6-Channel Relay Module, Based On RP2350 Microcontroller, Supports Wxternal Interfaces RS485 And Pico(With Wi-Fi Module)

The WAVESHARE RP2350 Industrial Control Board is a 6-channel relay module designed for industrial applications. It supports external interfaces such as RS485 and Pico, making it suitable for various industrial control tasks.

• Product Type: Relay Module
• Brand: WAVESHARE
• Compatibility: RP2350 Microcontroller
• Material: ABS
• Intended Use: Industrial use
• Processor: Dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V, up to 150MHz
• Memory: 520KB SRAM, 16MB on-chip Flash
• Power Supply: 7V~36V via terminal block interface

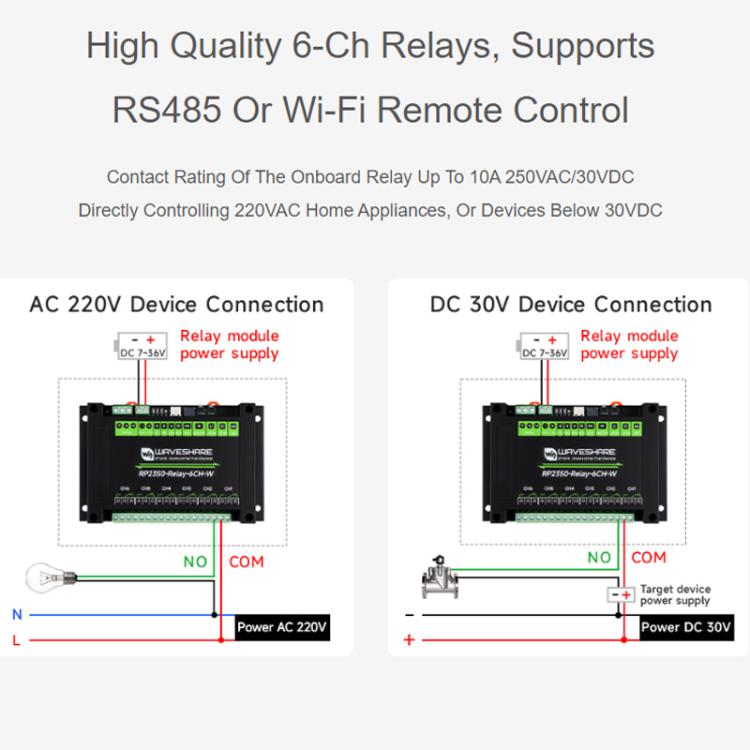

• Relay Specifications: 10A 250V AC or 10A 30V DC
• External Interfaces: RS485 and Pico-compatible

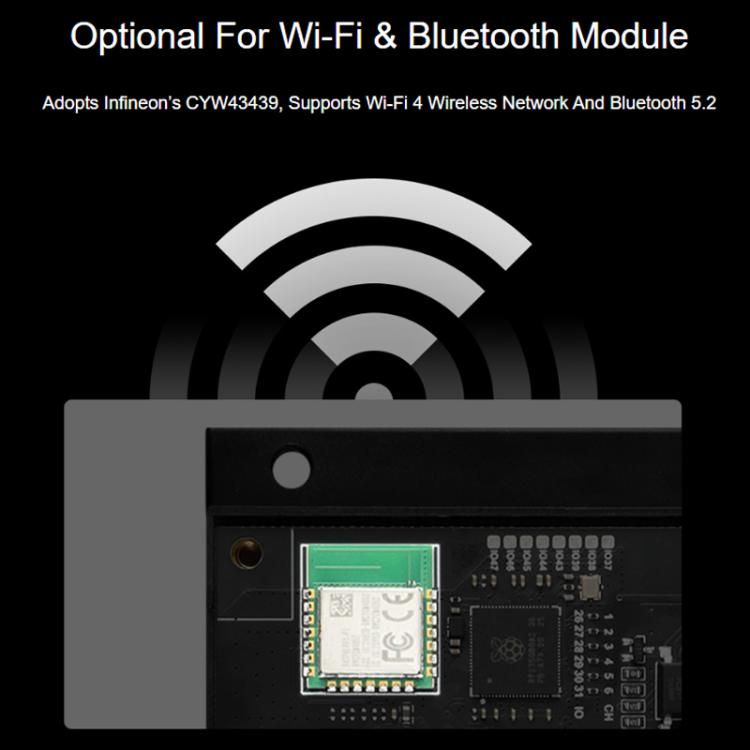

• Wireless Support: Wi-Fi 4 and Bluetooth 5.2 (Wi-Fi module version only)

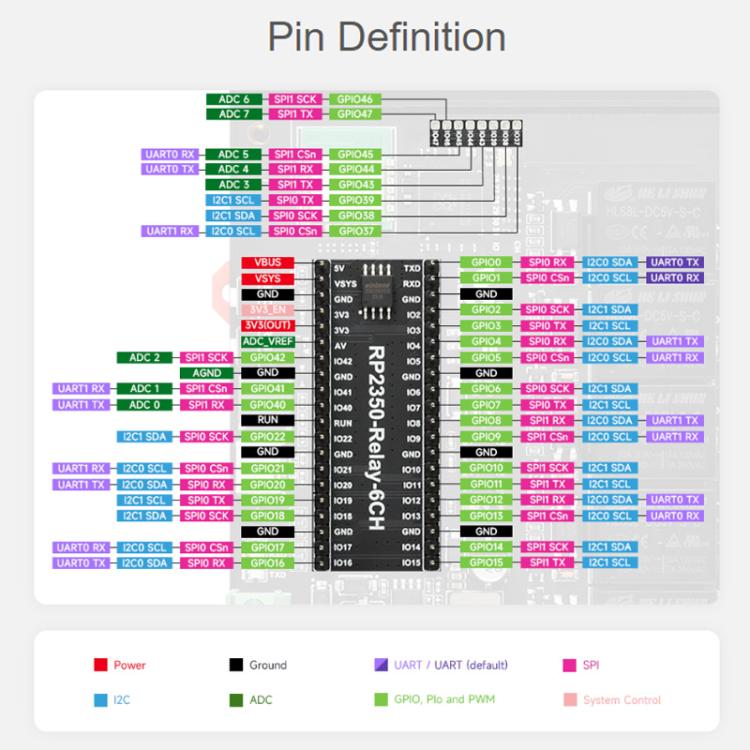

• GPIO Pins: 34 multi-functional GPIO pins
• Additional Pins: 1 HSTX pin, 2 I2C pins, 2 UART pins, 8 12-bit ADC pins, 24 controllable PWM channels, 12 programmable I/O state machines

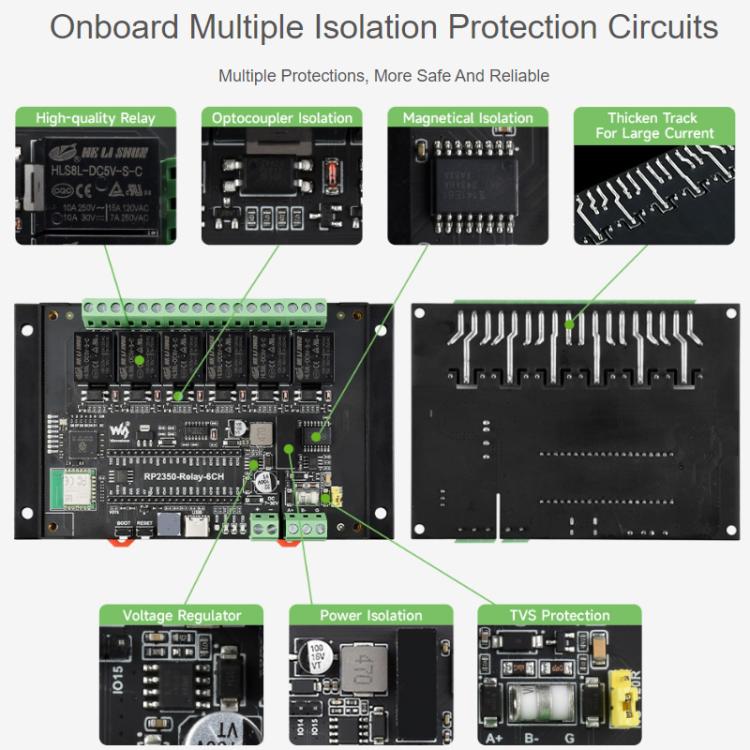

• Isolation Features: Built-in power isolation, optocoupler isolation, digital isolation
• Indicators: Power and RS485 transceiver indicator lights, buzzer, RGB LEDs
• USB Support: USB 1.1 host and device support, controllable via USB

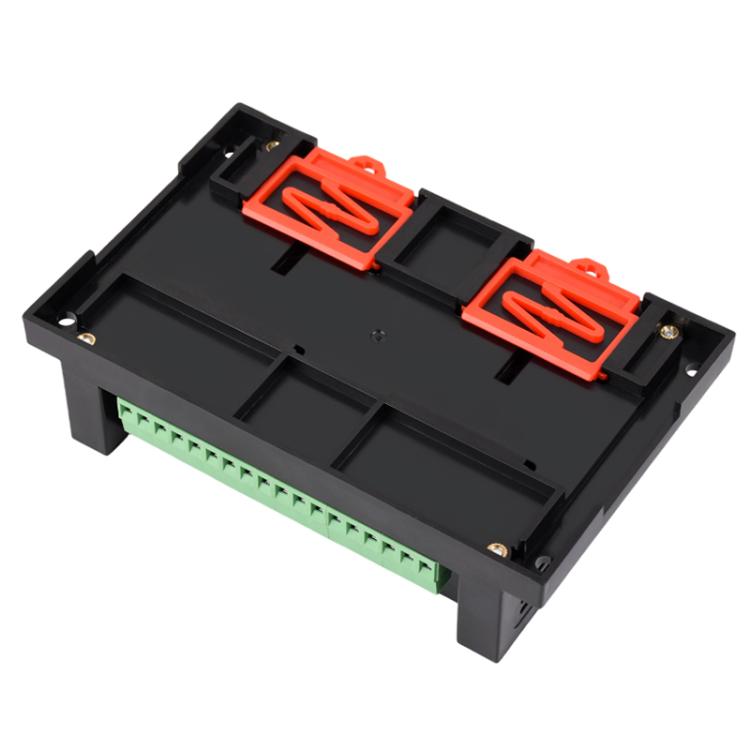

• Installation: Rail-mounted ABS protective casing
• Low Power Modes: Supports low-power sleep and hibernation modes
