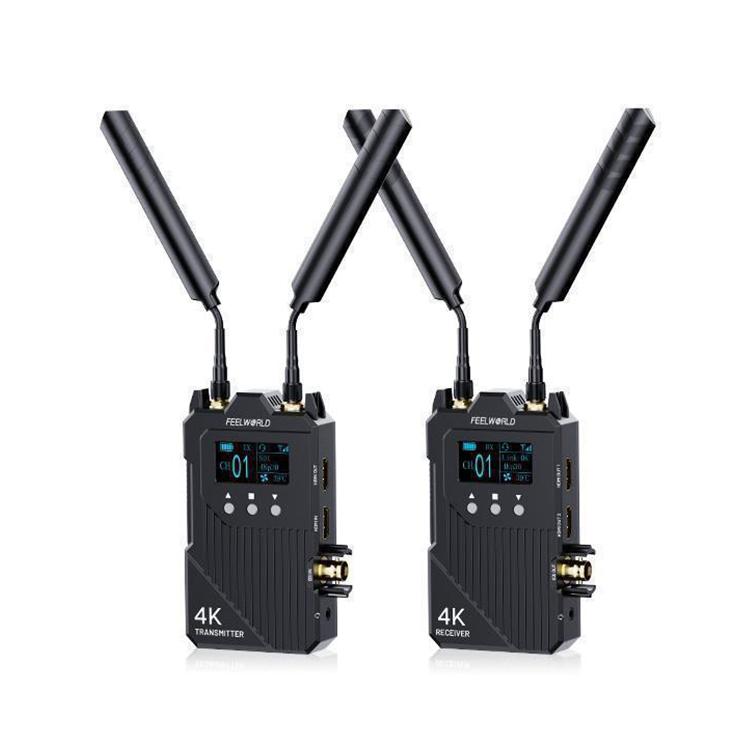

FEELWORLD WT1S 4K Wireless Video Transmission System SDI + Dual HDMI-compatible Full Duplex Intercom Live Streaming(Black)

Features:
1. Dual HDMI-compatiable + SDI signal interfaces, meet your different needs
2. More than 1000ft transmission range with 0.08S ultra-low latency
3. Up to 4K 30Hz, present image with superior clarity, detail and realism
4. Wireless full-duplex talkback, real-time intercom between the director and the photographer
5. With type-C to Ethernet adapter accessory, achieve live streaming
6. Under Grouping mode, TX and RX can be paired easily and quickly
7. The transmitter can be switched as a receiver at will
8. One TX to 4 RX, monitoring for everyone on set
9. Real-time APP monitoring and recording for Android/iOS system
10. 13 frequency channels, AUTO channel scan

Specification:
Transmitter
1. Screen: OLED
2. Interface:
1 x SDI input
1 x HDMI-compatible input
1 x HDMI-compatible output
2 x Antenna port (RP-SMA Male)
DC power input
3.5mm headphone jack
Type-C
3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 5.5W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI Type A
6. SDI Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
BNC x 1
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 22dBm
10 Bandwidth: 20/40MHz
11. Latency: Min 0.08S
12. Intercom Frequency Response Range: 20Hz~20KHz
13. Operating Temperature: 0 degree C ~ 40 degree C
14. Storage Temperature: -20 degree C ~ 60 degree C
15. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
16. Unit Weight: 138.8g

Receiver
1. Screen: OLED
2. Interface:
1 x SDI input
2 x HDMI-compatible output
2 x Antenna port （RP-SMA Male）
DC power input
3.5mm headphone jack
Type-C
3. Power Supply Way/Voltage:
NP-F battery slot
Type-C: 5V/1.5A
DC adapter: 6-16V
4. Power Consumption: Less than 6W
5. HDMI-compatible Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
2160P30/25/24
HDMI-compatible Type A
6. SDI Format:
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
BNC x 1
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Receiving Sensitivity: -87dBm
10. Bandwidth: 20/40MHz
11. Latency: Min 0.08S
12. Intercom Frequency Response Range: 20Hz~20KHz
13. Operating Temperature: 0 degree C ~ 40 degree C
14. Storage Temperature: -20 degree C ~ 60 degree C
15. Unit Size(mm): 77.1Lx30Wx118.6H (excluding antenna）
16. Unit Weight: 138.8g

Packaging List:
1. Transmitter x 1
2. Receiver x 1
3. Antenna x 5
4. Cold Shoe x 1
5. USB-A to USB-C Adapter x 1
6. USB-C to Ethernet Adapter x 1
7. User Manual x 1
