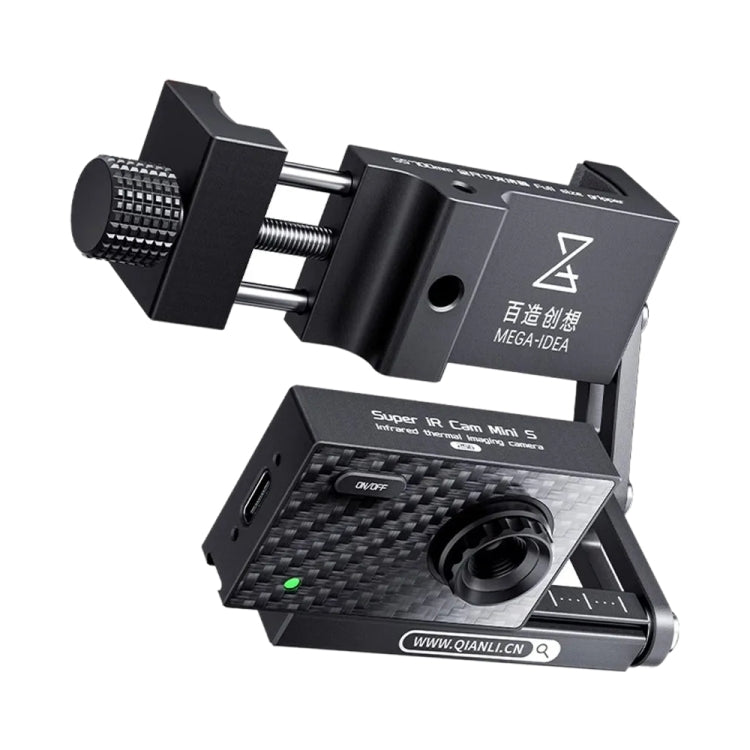

Mega-Idea Super IR Cam Mini S Microscope Infrared Thermal Imaging Camera for Motherboard Detected

1. Upgraded version with focusing adjustable lens, angle adjustable bracket, large clim range, comes with specific Type-C with screw locks
2. Brand new upgraded adjustable focus distance, clearer the image
3. Upgraded adjustable focus distance, adjust it clockwise, and the image captured by the thermal camera is getting clear, the focus range is 2mm~
4. Rotate the lens and adjust the distance between the lens and the object until the image shows clear
5. Images captured by both the microscope and thermal camera, synchronize with each other for better viewing
6. Images captured by both the microscope and thermal camera display at the same time, to better detect and repair the board
7. Using the microscope with this thermal camera, one can easily observe both damage at the surface and internal heating
8. Large range clip buckle, the rotatable clip comes with springs, makes a longer range and holds things firmly
9. Sponge mat at the clip tips, to increase the resistance and more importantly to protect the microscope from scratch
10. Type-C cable with screw locks to keep the connection between the computer and the thermal camera still, when the microscope is moving
11. Specialized lock screws to make sure the cable connects the thermal camera more stable
12. This thermal camera can be used with trinocular microscopes, to easily observe both damage on the surface of the object and internal heating
13. Mega-idea Super IR Cam Mini S to work with microscope specifically with large clip range design, multiple ways suit for multiple scenarios
14. Very popular among mechanics and technicians, so they could detect and locate defective components quickly
15. Temperature detection range: -20~120 Celsius degree
16. Resolution: 49152 temperature detect points
17. Lens: Manual focus
18. Input power: 5V
19. Port type: Type-C port
