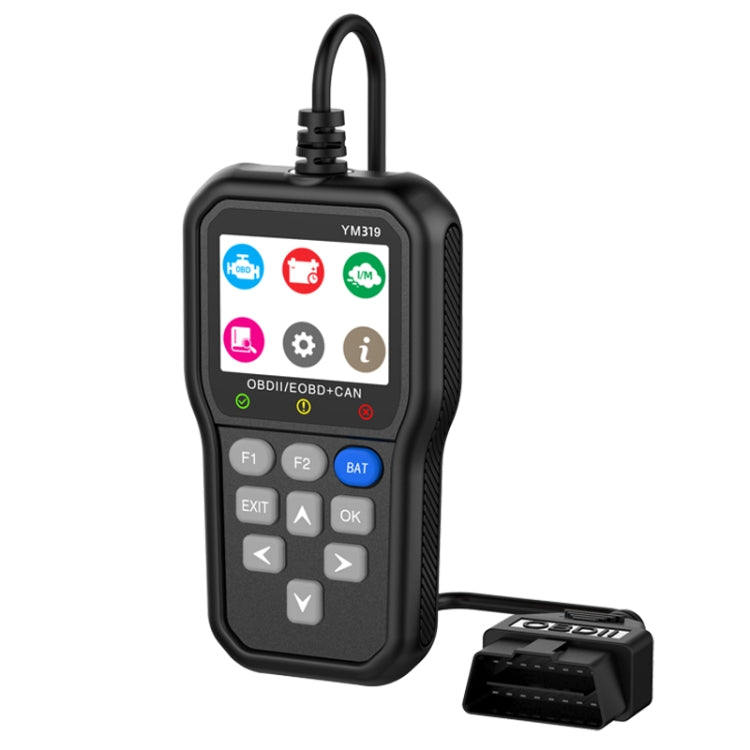

OBD Automobile Engine Battery Voltage Life Detector

1. Screen size: 2.4 color screen full viewing angle
2. Features: Simple UI interaction, GPU Turbo for faster response and faster display
3. With TPU protective cover and silicone buttons
4. Three high-brightness indicator lights, the buzzer can be adjusted manually
5. Backlight brightness can be adjusted manually, and two customizable shortcut keys
6. Model: 12V gasoline vehicle
7. Working voltage: 5-18V
8. Working current: 50ma
9. Product size: 135x76x22mm
10. Product net weight: 248g

Detection function
1. Supports OBDII/EOOBD nine standard protocols to read automobile engine fault codes
2. Clear engine fault codes
3. Car trouble freeze frame
4. I/M ready status
5. Vehicle information
6. Car real-time data flow
7. Real-time curve of automobile data
8. Mode 6 detection (component system test)
9. Oxygen sensor test
10. Parts Testing (EVAP)
11. Fault code query
12. Vehicle battery voltage reading
13. Vehicle battery voltage monitoring
14. Vehicle battery life evaluation
15. Support cloud printing (24 languages, automatically match the language according to the mobile phone, real-time data flow, freeze frame, fault code analysis)
16. The product has 13 built-in languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

supporting agreement
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
