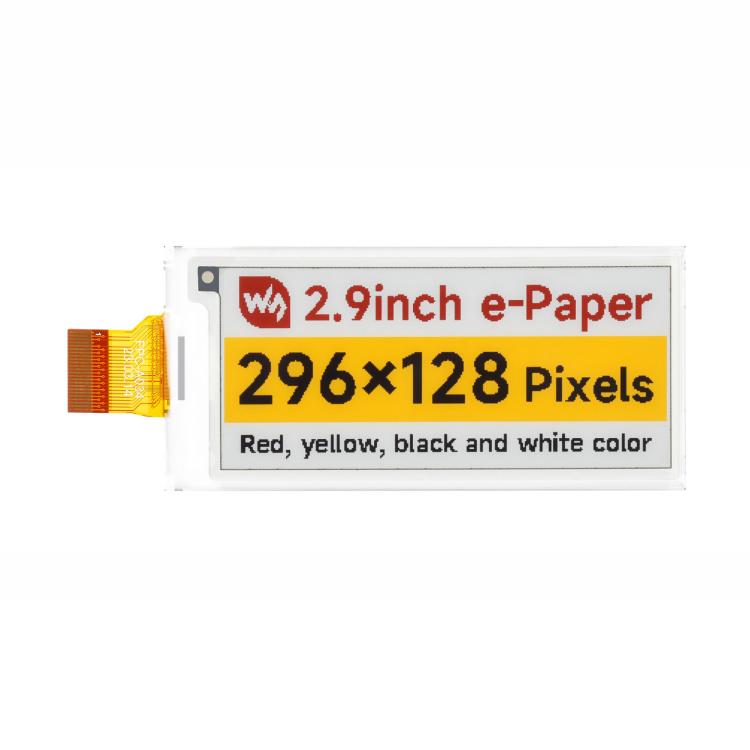

WAVESHARE 2.9inch E-Paper Display E-Ink Display, 296x128, Red/Yellow/Black/White, SPI Interface, Spec: Raw Display
WAVESHARE 2.9inch E-Paper Display E-Ink Display, 296x128, Red/Yellow/Black/White, SPI Interface, Spec: Raw Display
SKU: TBD0606706701
Prix habituel
£19.69
Prix habituel
Prix promotionnel
£19.69
Frais d'expédition calculés à l'étape de paiement.
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantité
Impossible de charger la disponibilité du service de retrait
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
1. Operating voltage: bare board version: 3.3V; Module version: 3.3V/5V
2. Communication interface: 3-wire SPI, 4-wire SPI

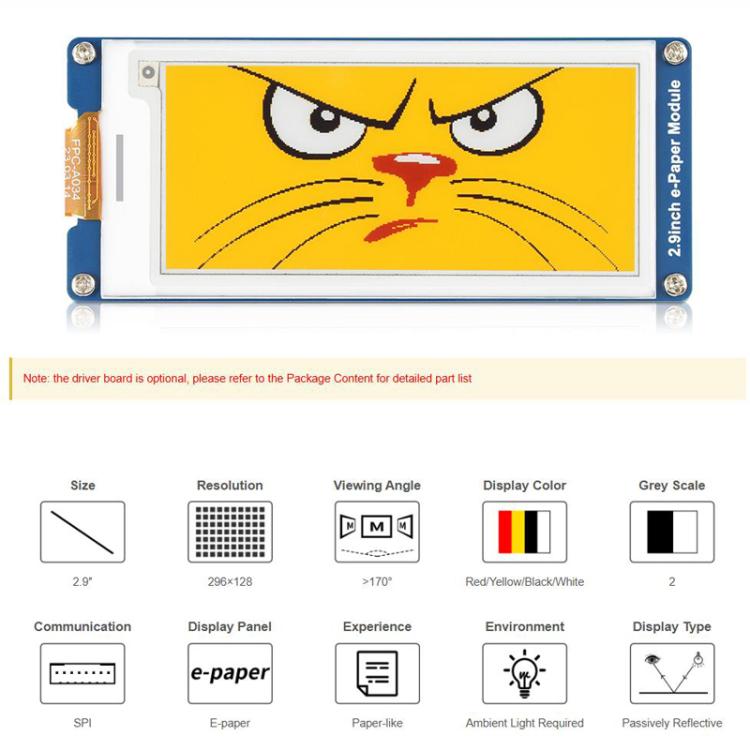

3. Display colors: red, yellow, black, white
4. Grayscale levels: 2
5. Fast refresh: 11 ms
6. Full refresh: 16 ms
7. Refresh power consumption: 30 mW
8. Sleep current: 0.01 μA (near 0)
9. Viewing angle: 170°
10. Resolution: 296 x 128 pixels

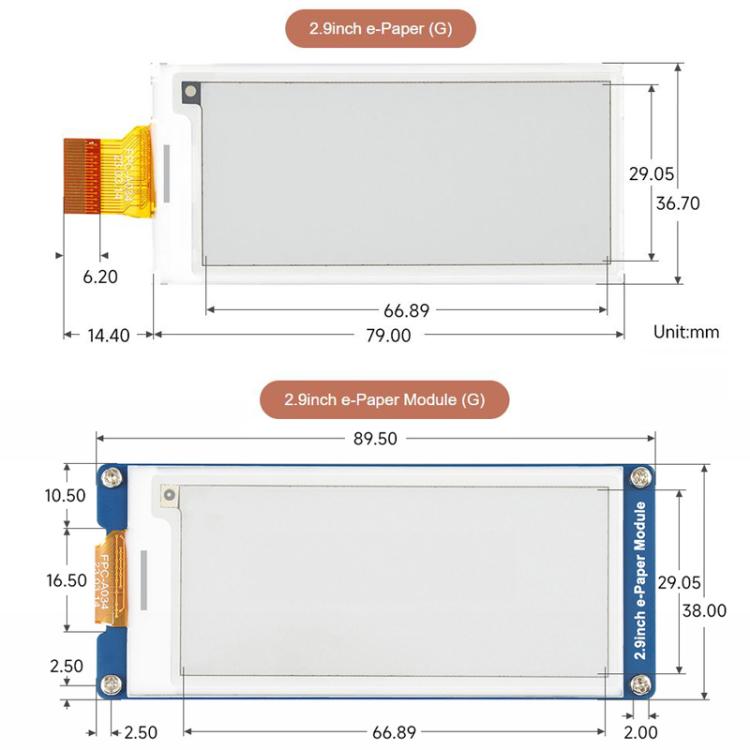

11. Display size: 66.89 x 29.05 mm
12. Dot pitch: 0.135 x 0.135 mm
13. Size: bare board version about 79 x 36.7 x 1.2 mm, module version about 89.5 x 38 mm
Features:
1. No backlight required; the last displayed content is retained for an extended period after power is cut off
2. Extremely low power consumption; power is consumed primarily during refresh cycles
3. Comprehensive supporting documentation provided (driver board schematics, example programs for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32, etc.)

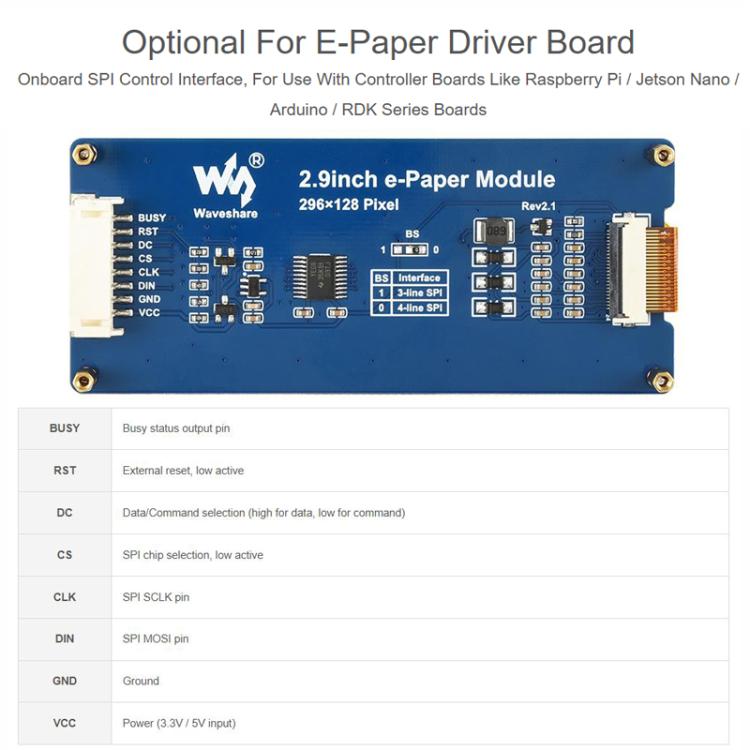

4. The module board features an SPI control interface, allowing connection to host boards such as Raspberry Pi, Jetson Nano, Arduino, STM32, and ESP32

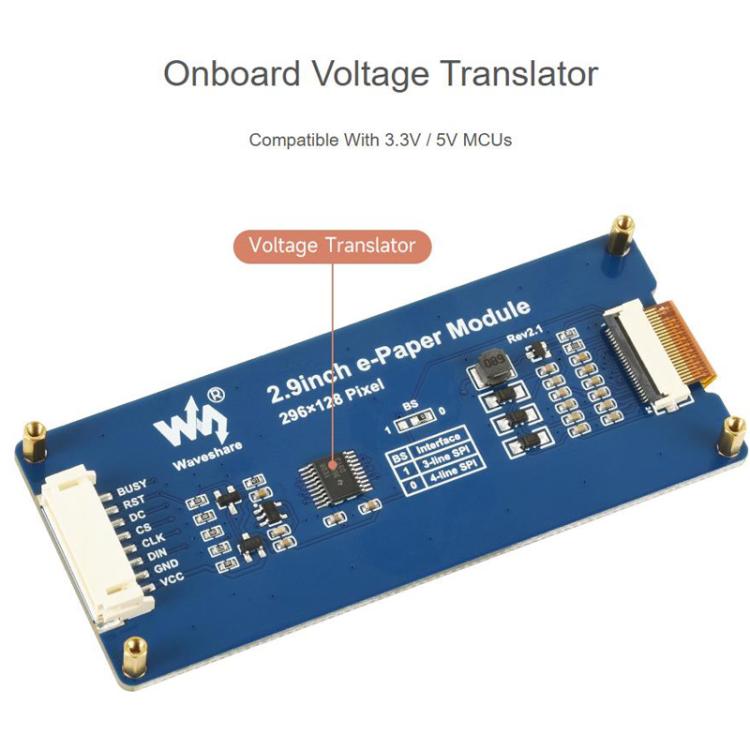

5. The module board includes an onboard level-shifting chip, making it compatible with both 3.3V and 5V microcontroller interfaces
6. Suitable for retail price tags, asset and equipment tags, electronic shelf labels, and conference name badges, among other applications
