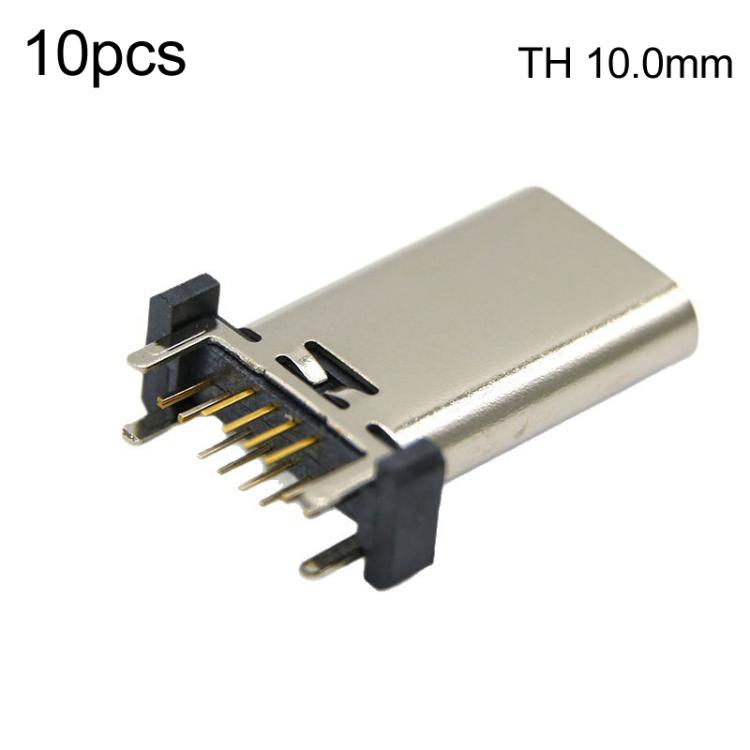

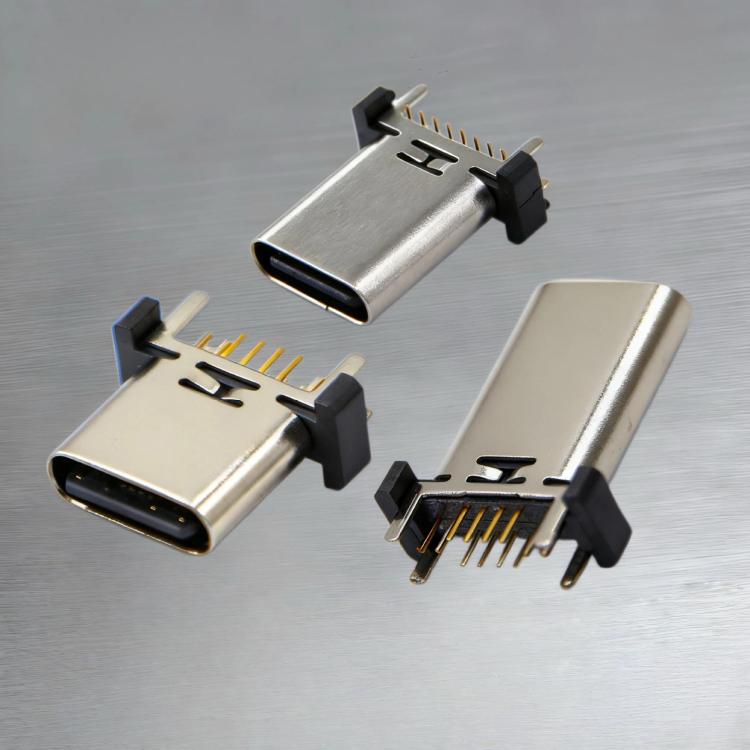

10pcs 16-Pin USB Type-C Female Connectors are designed for fast charging applications. They are compatible with USB Type-C devices and can withstand high electrical performance requirements.
Product Type: Connectors
Compatibility: USB Type-C devices
Material: Not specified
Key Feature: Fast Charge Port
Color/Variant: Not specified
Intended Use: Everyday use
Category: Consumer Electronics
Electrical Performance:
Rated Current: 5.0A
Contact Resistance: 40 milliohms maximum
Withstanding Voltage: 100V AC / 1mA MAX
Insulation Resistance: 150V DC / 100 megohms minimum
Mechanical Performance:
Insertion Force: 5~20N
Withdrawal Force: 8~20N
Service Life: 10,000 cycles, withdrawal force 5N MIN
SKU:
TBD0606635302
Shipping Origin:
China
