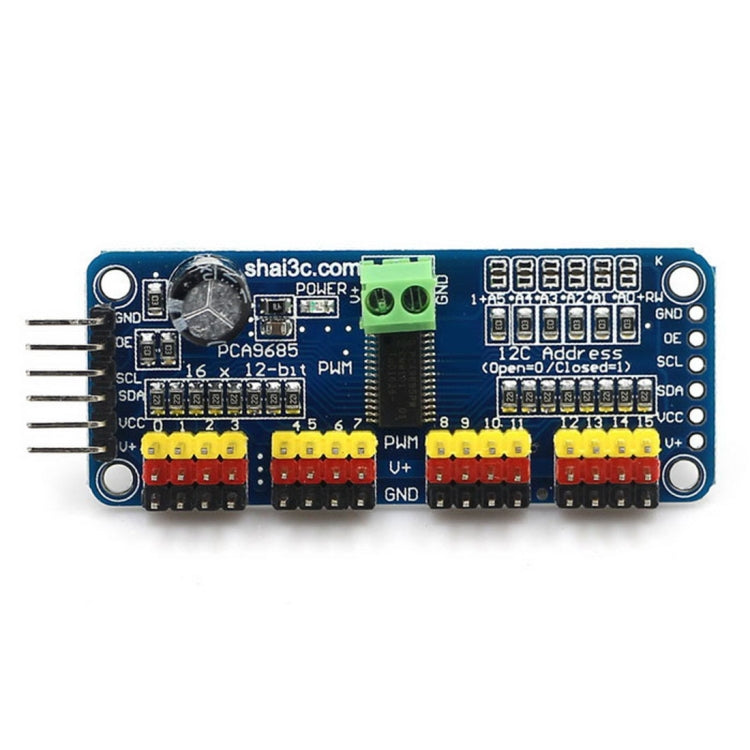

16 Channel PWM Servo Motor Controller DIY for Arduino
16 Channel PWM Servo Motor Controller DIY for Arduino
No reviews
Regular price
£10.09
Regular price
Sale price
£10.09
Unit price
/
per
FREE DELIVERY on all orders.
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 working days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If not, our 30-day return policy has you covered.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Works with official Arduino boards
2. This is an I2C controlled PWM driver board with a built-in clock
3. You can use 3.3V MCU to control and drive the output up to 6V
4. 6 address select pins allow you to connect 62 driver boards to one I2C bus, total 992 channels of PWM output
5. About 1.6KHz frequency modulation PWM output
6. PCA9685 chip is at the center of the board
7. With power input terminal
8. With green power indicator light
9. Convenient to insert total 16 servos at the same time
10. With reverse polarity protection for input
11. Cascade design
12. Put a bulky capacitor on the V+ line
13. Put 220 ohm resistance components onto all PWM output lines
