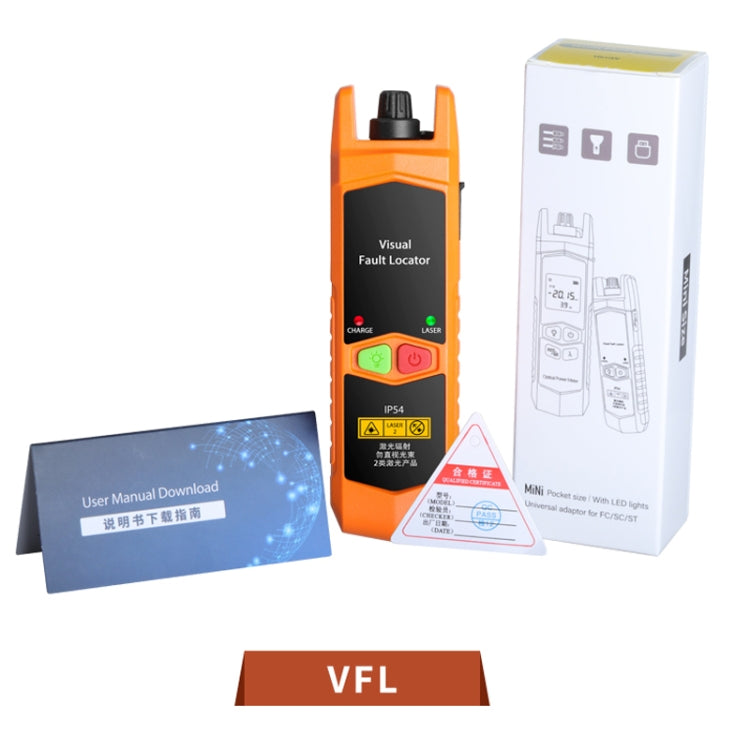

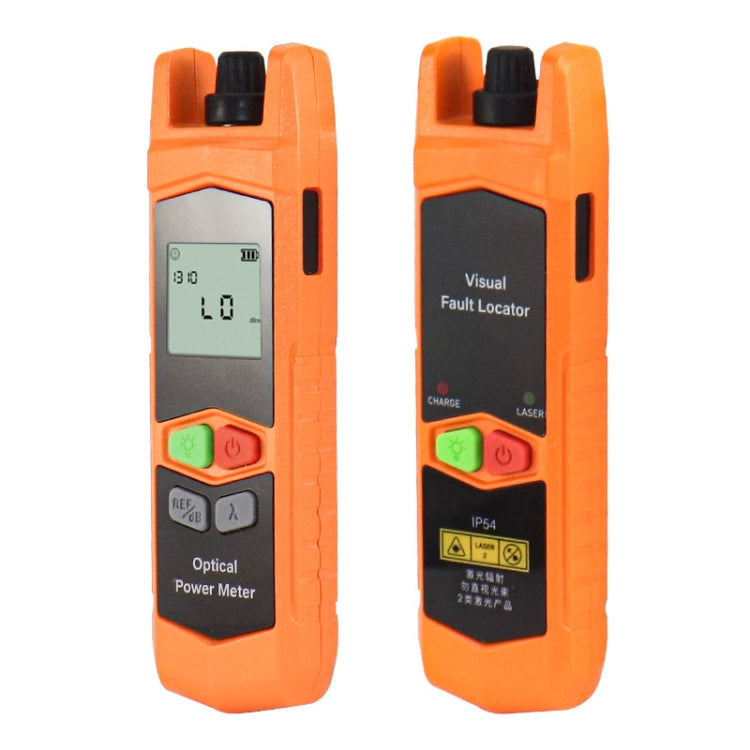

2-in-1 10-30mW Fiber Optic Red Light Pen + Optical Power Meter (-70+6dBm) Set

The 2-in-1 10-30mW Fiber Optic Red Light Pen and Optical Power Meter is a dual-function device for measuring optical power and detecting faults in fiber optic cables. It is suitable for various interfaces such as SC, ST, and FC, making it ideal for technicians working in telecommunications and networking.

• Type: 2-in-1 Fiber Optic Red Light Pen and Optical Power Meter
• Optical Power Meter Specifications:
• Measurement Range: -70 to +10 dBm / -50 to +26 dBm
• Measurement Error: +/- 0.2 dB
• Wavelengths: 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
• Display Resolution: 0.01 dB
• Working Temperature: -10 to +60 degrees Celsius
• Storage Temperature: -25 to +70 degrees Celsius
• Power Supply: 2 x AAA batteries (not included)
• Power Working Time: 20 hours
• Size: 127 x 36.5 x 28 mm
• Weight: 61 g
• Red Light Fault Detector Specifications:
• Wavelength: 650 nm
• Power Range: 10 mW, 20 mW, 30 mW
• Test Distance: 5-8 km / 12-15 km / 20-25 km
• Laser Type: LD
• Modulation Frequency: CW / 2 Hz
• Dimensions: 127 x 36.5 x 28 mm
• Weight: 61 g
