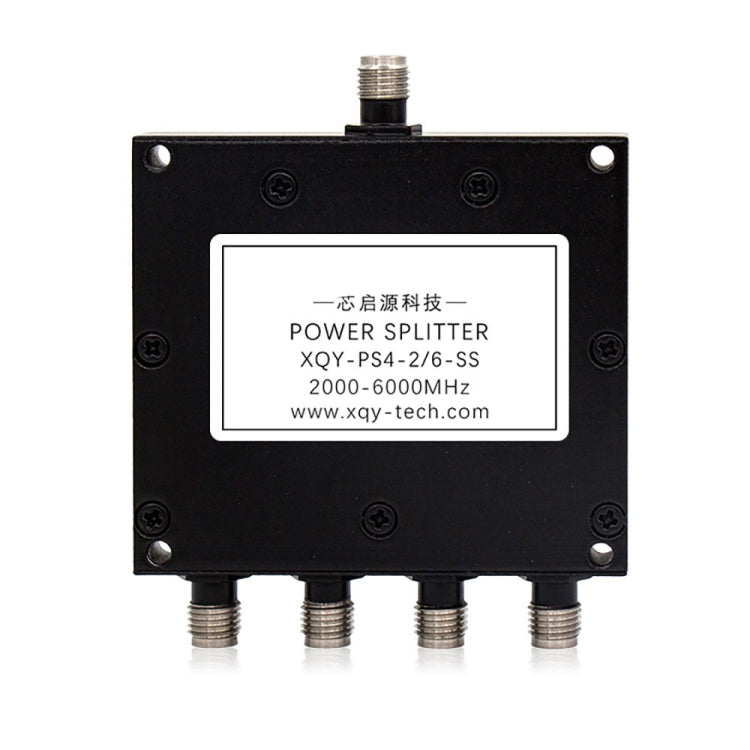

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
🔥 Buy 1 item, get 25% off another 🔥 Ends today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Impedance: 50 Ohms
2. Phase balance: ±4 degrees
3. Surface treatment: black paint
4. Port connector: SMA-Female
5. Low insertion loss, low standing wave, high isolation
6. Working temperature: -45~+85 degrees celsius
7. Frequency range: 2000~6000MHz
8. Amplitude balance: ±0.2dB
9. Isolation: Min.20dB
10. Input standing wave: Typ. 1.8/Max.1.25
11. Output standing wave: Typ. 1.15 / Max.1.2
12. Withstand power: 30W for splitter; 2W for combiner
13. Insertion loss: less than or equal to 0.8dB (excluding theoretical loss of 6dB)
14. Dimensions: 56x50x10mm
15. Weight: 64g
