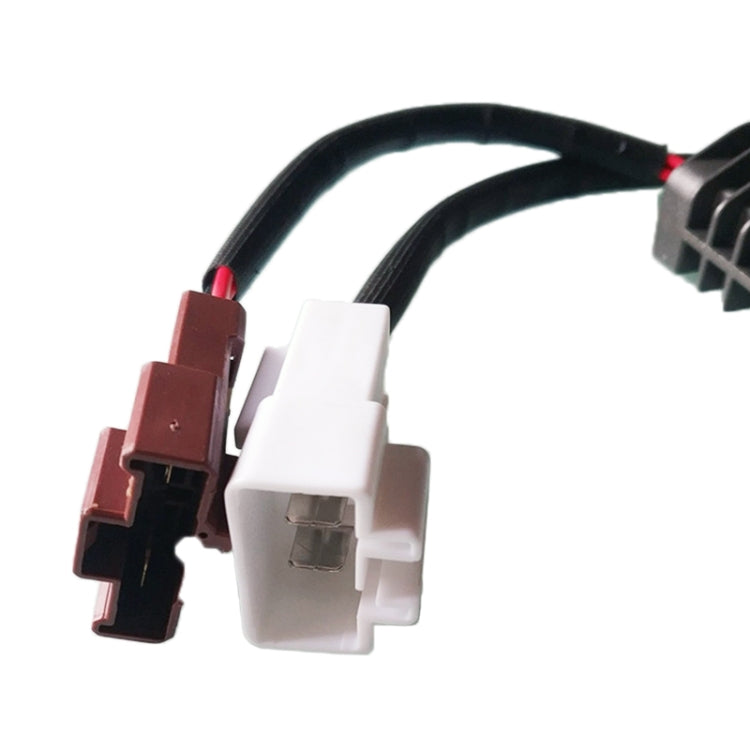

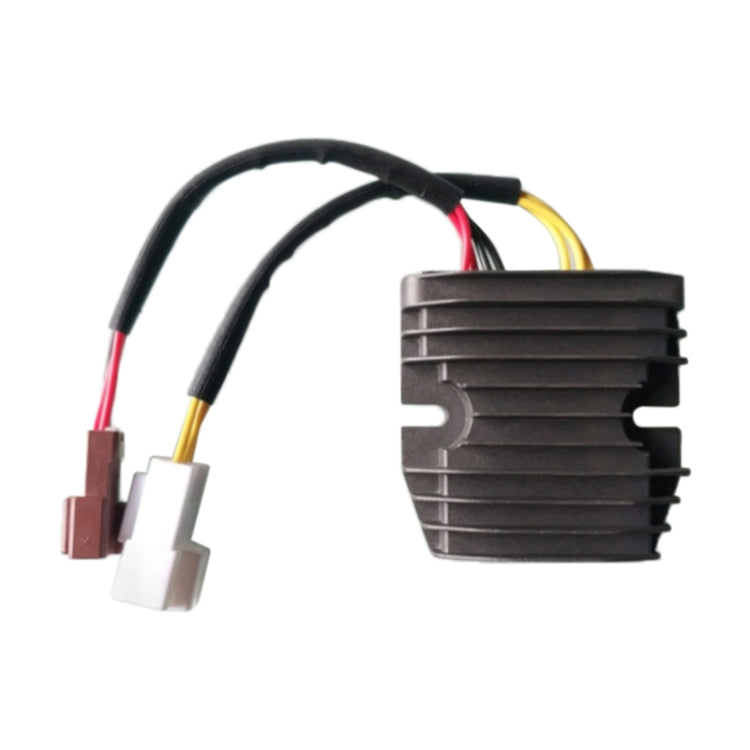

2001C.8 Motorcycle Rectifier Large Displacement Motorcycle Accessories For Honda XL Vara Ro 1000 2003 2011 31600-MBT-D21

1. Weight: 360G
2. Wire length: 40CM
3. Output voltage: 14.5V
4. Output current: 50A
5. Aluminum shell size: 83x94x25.7MM

Applicable models:
Suitable for 2413
For Honda XL Vara ro 1000 2003 2011 31600-MBT-D21
Suitable for Honda XL Vara ro ABS 1000 2004 2011 31600-MBT-D51
Suitable for Reemplazo Shin ngen FH008AA

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.
