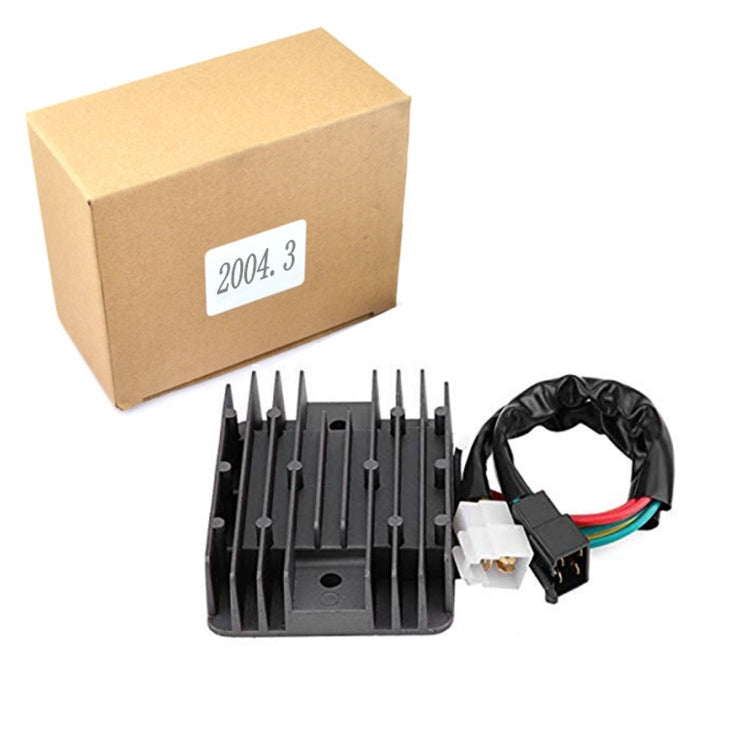

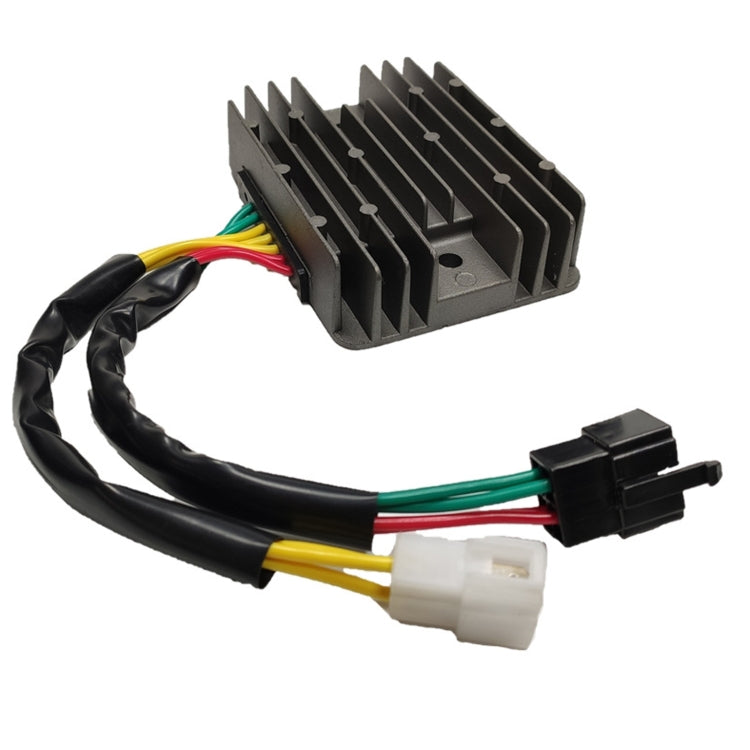

2004.3 Motorcycle Rectifier For Ducati Sport 1000 748998

1. Wire length: 150X25CM
2. Output voltage: 14.5+/-0.5V 35A
3. Weight: 320G

Installation precautions:
1.The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier.
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier Check whether the voltage at the end is within a reasonable range. If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3.Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction, and you can also add thermally conductive glue between the rectifier and the frame.
4. No other wires should be pressed between the rectifier and the frame.
5.There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high to burn out other electrical components.

Applicable models: 2551 35A
for Ducati -54040261A
for Ducati -54040101A
for Ducati -54040111A
for Ducati -54040131A
for Ducati Hypermotard EVO 1100 2010 2012 54040111C
for Ducati Hypermotard796 2010 2012 54040111C
for Ducati Hypermotard1100 2011 2012 54040111C
for Ducati Hypermotard S / SP 1100 2008 2012 54040111C
for Ducati MH 900 E 904 2000 54040111C
for Ducati Monster1100 2012 54040111C
for Ducati Monster696 2007 2012 54040111C
for Ducati Monster S2R 800 2007 54040111C
for Ducati Monster DARK 620 2005 2006 54040111C
for Ducati Monster EVO 1100 2011 2012 54040111C
for Ducati Monster750 1998 2001 54040111C
for Ducati Monster S4R 996 2003 2007 54040111C
for Ducati Monster620 2004 54040111C
for Ducati Monster600 2000 2001 54040111C
for Ducati Monster S4 916 2001 2002 54040111C
for Ducati Monster796 2011 2012 54040111C
for Ducati Monster S2R 800 2005 2008 54040111C
for Ducati Monster S 1000 2003 54040111C
for Ducati Monster S / Standard 620 2002 2003 54040111C
for Ducati Monster S 1100 2009 2010 54040111C
for Ducati Monster IE / Standard 750 2002 54040111C
for Ducati Monster S2R 1000 2005 2008 54040111C
for Ducati Monster1000 2004 2005 54040111C
for Ducati Monster IE / SIE 620 2002 54040111C
for Ducati Monster S / IE 900 1998 2002 54040111C
for Ducati Monster800 2003 2004 54040111C
for Ducati Monster S2R 1000 2006 2007 54040111C
for Ducati Monster S4R Testastretta 996 2007 2008 54040111C
for Ducati Multistrada Standard / Dark 620 2006 54040111C
for Ducati Multistrada S / Standard 1100 2007 2009 54040111C
for Ducati Multistrada DS / SDS 1000 2005 2006 54040111C
for Ducati SportClassic Biposto 1000 2007 2008 54040111C
for Ducati SportClassic GT 1000 2007 2010 54040111C
for Ducati SportClassic Paul Smart 1000 2006 54040111C
for Ducati SportClassic Standard 1000 2006 2010 54040111C
for Ducati SportTouring ST3 992 2005 2007 54040111C
for Ducati SportTouring ST2 944 2001 2003 54040111C
for Ducati SportTouring ST4 996 2001 2005 54040111C
for Ducati SuperBike S / Standard 996 2000 2001 54040111C
for Ducati SuperBike Biposto 996 1999 2001 54040111C
for Ducati SuperBike Senna 916 1998 54040111C
for Ducati SuperBike SPS 748 1998 54040111C
for Ducati SuperBike R / S / Standard 748 2000 2002 54040111C
for Ducati SuperBike998 2002 2003 54040111C
for Ducati SuperBike SPS 916 1998 54040111C
for Ducati SuperBike Biposto 916 1998 54040111C
