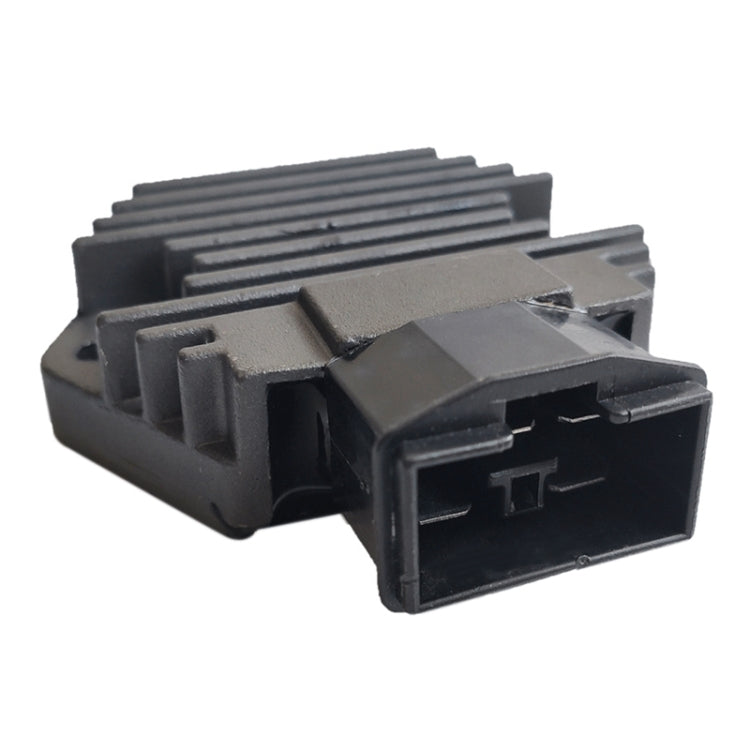

2009.4 Motorcycle Rectifier For Honda CBR 1100 XX / VFR 750
2009.4 Motorcycle Rectifier For Honda CBR 1100 XX / VFR 750
🖤🔴 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🔴🖤
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Weight: 175g
2. Output voltage: 14.5V
3. Output current: 35A
4. Heat dissipation material: aluminum heat dissipation shell
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For 2355
For Aprilia RXV 450 2005 2012 AP9100424
For Aprilia RXV 550 2005 2012 AP9100424
For Aprilia SXV 550 2005 2012 AP9100424
For Aprilia SXV 450 2005 2012 AP9100424
For Ducati-434 40 0300
For Honda CB S 400 2004 2007 31600-KFG-861
For Honda CB F 600 2004 31600-KFG-862
For Honda CB Hornet 600 2002 2006 31600-KFG-862
For Honda CB S 400 2000 2001 31600-KFG-861
For Honda CB F 600 2006 31600-KFG-862
For Honda CBF 500 2004 2007 31600-KFG-862
For Honda CBR XX A/AC 1100 1996 1998 31600-MY7-305
For Honda CBR R 125 2004 2006 31600-KPP-861
For Honda CBR R 125 2008 31600-KPP-861
For Honda CBR XX 1100 1997 1998 31600-MT4-008
For Honda FES Pantheon 150 1998 2000 31600-KFG-860
For Honda FES Pantheon 125 1998 2000 31600-KFG-860
For Honda FES Forsight 250 1997 2003 31600-KFG-860
For Honda NES Y 125 2000 31600-KFG-860
For Honda NES Arobase 150 2000 31600-KFG-860
For Honda NSS Reflex 250 2002 2003 31600-KFG-861
For Honda NSS Jazz 250 2001 31600-KFG-861
For Honda NSS Forza 250 2000 31600-KFG-860
For Honda NSS 250 2001 2003 31600-KFG-861
For Honda NV Shadow 400 2003 2008 31600-KFG-861
For Honda VFR F A/AC 750 1990 1997 31600-MY7-305
For Honda VFR F 750 1990 1997 31600-MT4-008
For Honda VT C 750 2001 2003 31600-KFG-861
For Malaguti Madison 400 2002 2004 02601900
For Piaggio X9 250 2000 2003 496454
For Reemplazo Shin ngen SH691-12 31600-KFG-862 31600-KFG-861
