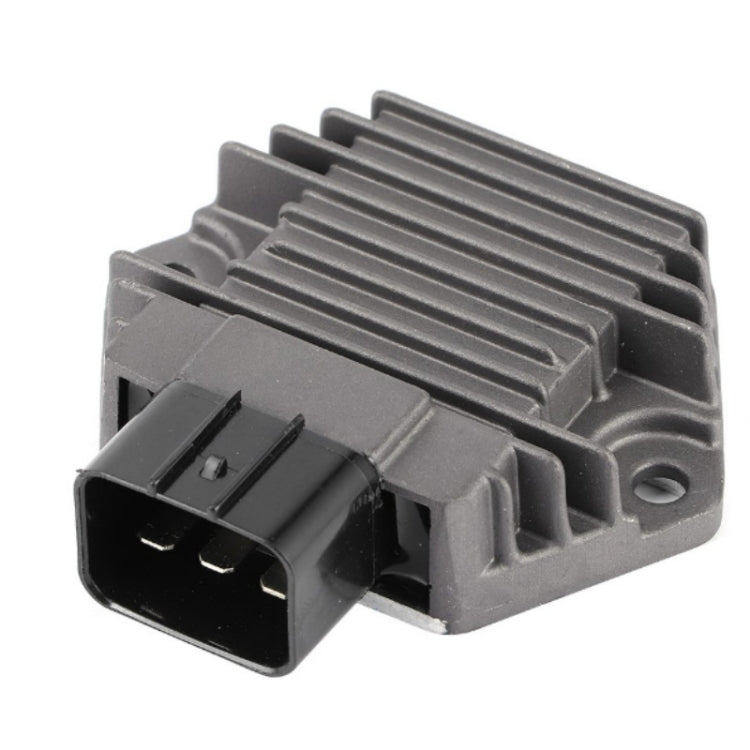

2009.6 Motorcycle Rectifier For Honda TRX350 TRX400 TRX450S VT750
2009.6 Motorcycle Rectifier For Honda TRX350 TRX400 TRX450S VT750
🖤🔴 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🔴🖤
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully Insured.
Handling time 1 - 3 working days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
DOA Guarantee
DOA Guarantee
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Buy2fix will make compensation based on the damage situation.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. Buy2fix will make compensation based on the damage situation.
1. Weight: 160G
2. Output voltage: 14.5V
3. Output current: 50A
4. Heat dissipation material: aluminum heat dissipation shell
5. Applicable battery: 12V
Applicable models:
2447
For Honda CB 300 2013 2015 31600-HP6-A01
For Honda CBF 250 2004 2007 31600-KPF-961
For Honda CBX Twister 250 Hasta 2016 31600-KPF-961
For Honda CRF AC 230 2008 2009 31600-HN5-M40
For Honda CRF R 450 2009 2012 31600-MEN-A31
For Honda CRF R 250 2010 2012 31600-MEN-A31
For Honda NX Falcon 400 s 2014 31600-HP6-A01
For Honda VT Shadow 750 2004 2009 31600-HN5-671
For Honda VT Shadow 700 2004 2009 31600-HP6-A01
For Honda XLV Transalp 650 2001 2007 31600-HN5-671
For Honda XR Tornado 250 31600-KPF-961
For Honda XRE 300 s 2013 31600-HP6-A01
For Reemplazo Shin Ngen SH683CA
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
